Spiral balance for tilt window

A quick learner says:

Hi Swisco

I just call about spiral balance for tilt window

I Measure 28" x 3/8 (Metal to metal )

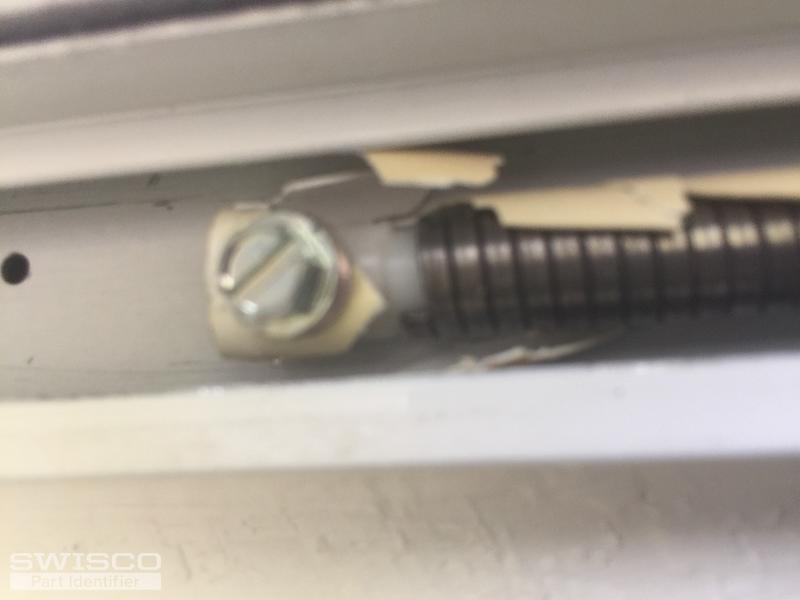

It had a plastic cover over the spring

But if you notice where is screws into the window is broken off which is a white plastic So it would measure 28 1/4 " if it was still on

Thanks

Thumbnail of the uploaded file named C7E57D43-2378-4ACB-8AC8-5EBB23A18ED6.jpeg
Thumbnail of the uploaded file named B0D8EB2B-B9A0-4A5A-88E5-990964439A45.jpeg
Thumbnail of the uploaded file named BE839F18-A11F-4F56-83F4-F79E9007C3F9.jpeg
Thumbnail of the uploaded file named F5AA92E7-446F-488C-8C0E-A1DBE9218B04.jpeg
Profile picture of Tom
Tom from SWISCO responded:

That white plastic is very important. That will also determine the diameter. You don't want to measure the bare spring when determining size, for either diameter or length.

Do you have an undamaged version of this balance that still has its outer tube? If so, you want to use that as a reference.

If not, then assuming that the bare spring is 3/8" in diameter, I can logically deduce that the tube is larger, which would probably put it at 9/16". If I'm right, then you want our S600-28.

A quick learner says:
Hi Tom
The white plastic that broke off I'm referring to is what holds the screw to the window frame

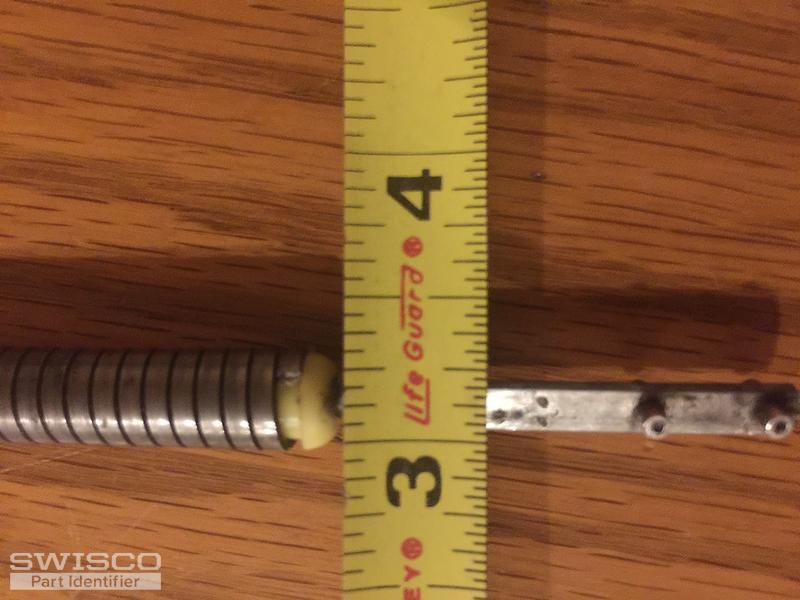

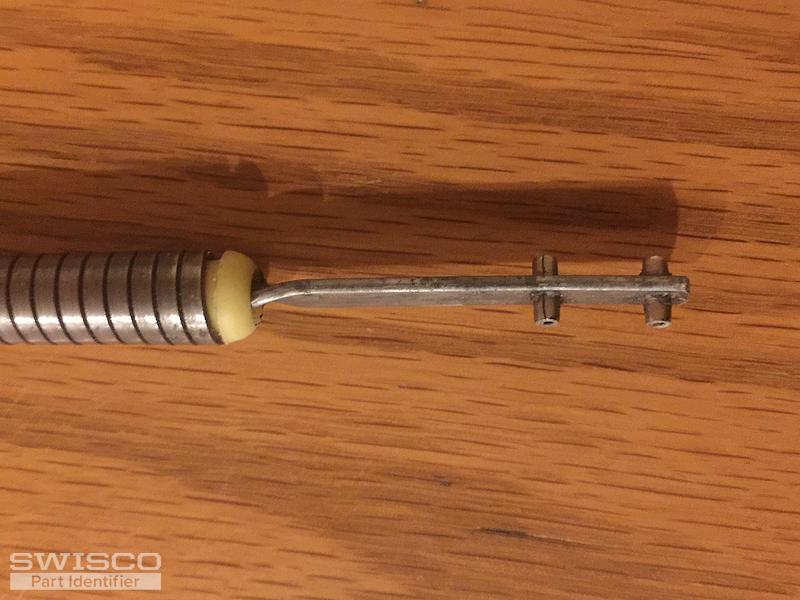

But my tip is yellow

There is no yellow 9/16
Thanks
Thumbnail of the uploaded file named 8441DF54-D7F8-4F05-9C1E-FC86A33F9844.jpeg
Thumbnail of the uploaded file named 12ED94F0-7D10-4138-92E1-DA50B56F792F.jpeg
Profile picture of Tom
Tom from SWISCO responded:

The white plastic that you refer to in your first batch of pictures is the outer tube. It once covered the entire balance but crumbled away. That's what you need to be measuring to determine size, not the bare spring you're showing now.

The tip here also isn't yellow. It was white, but just became discolored from age. Odds are you'll need a Red tip color option to replace it, but you should weigh your sash on a scale to confirm.
