Spiral balance replacement

A home owner says:

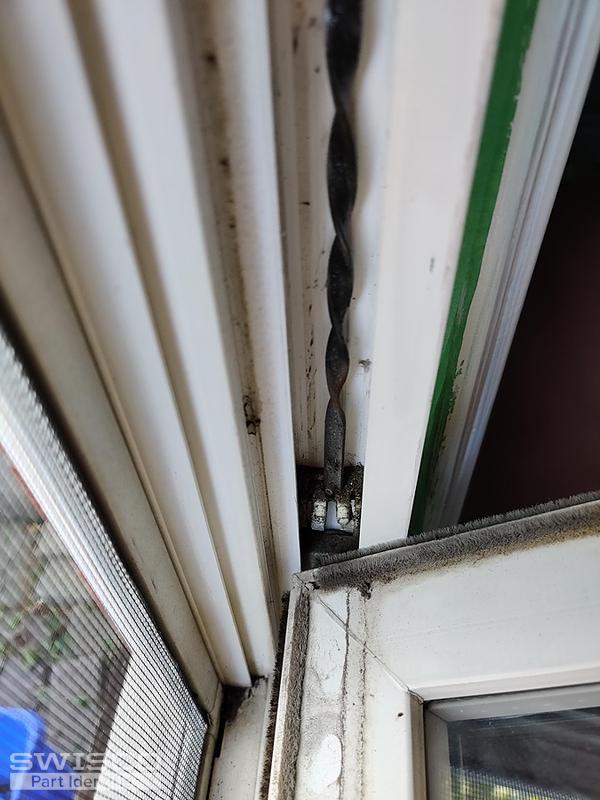

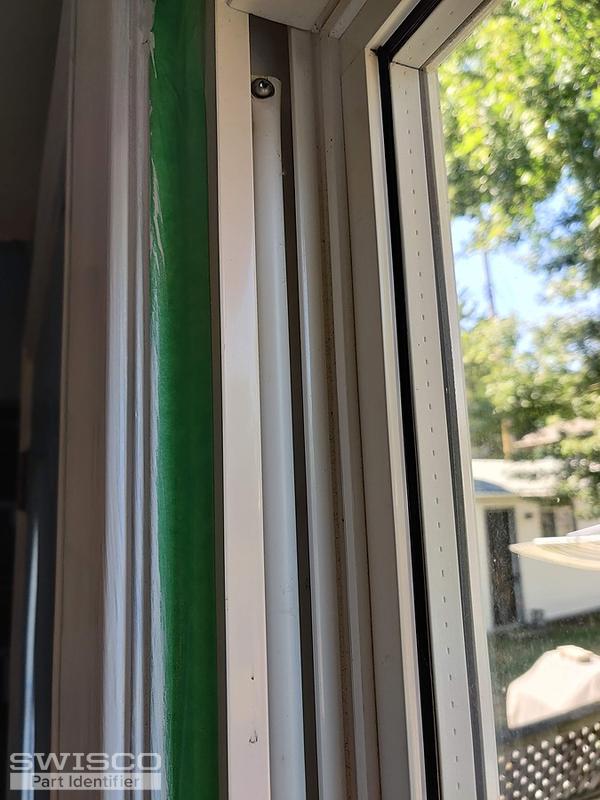

Need help identifying replacement parts. Tube diameter is 9/16", and length is approx 30" with a green tip.
Thumbnail of the uploaded file named IMG_20200821_124344.jpg
Thumbnail of the uploaded file named IMG_20200821_124150.jpg
Thumbnail of the uploaded file named IMG_20200821_124357.jpg
Thumbnail of the uploaded file named IMG_20200821_124504.jpg
Thumbnail of the uploaded file named IMG_20200821_124336.jpg
Profile picture of Bob
Bob from SWISCO responded:

If you're confident the outer tube diameter is 9/16" (or 5/8" in the trade) and 30" long, see our S600-30 . Your tip is likely a faded blue, but to be safe, obtain the exact weight of the window sash. You can then match that exact weight with one of the weight ranges listed alongside each color tip option on the balance's shop page.
