Spiral balance rods, lock/handle

A quick learner from Cumming, ga says:

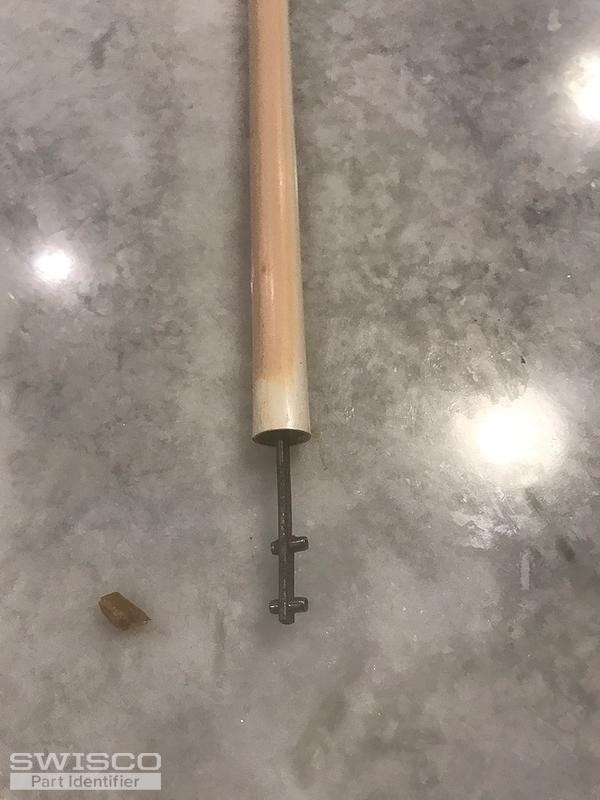

I need 10 of the spiral balance rods, they are 28 1/2 inches long, 3/8 wide. I need 10 of the spiral balance rods, they are 28 1/2 inches long, 3/8 wide.I also need two of the bottom handles or locks that have the metal tension part.

Finally I need the tool to install the balance rods, and the part that the sparrow rod hooks into.

Bill

Thumbnail of the uploaded file named 87BCF28F-3B58-49D6-88FD-EC29185F1FE2.jpeg
Thumbnail of the uploaded file named C19F3768-19DB-4190-8986-3D7D62B68A94.jpeg
Thumbnail of the uploaded file named 92D1775F-1858-41AF-B607-3351A8DA476E.jpeg
Thumbnail of the uploaded file named 29307619-68D4-4C19-9467-2A9A16E7E232.jpeg
Thumbnail of the uploaded file named 14C7BE8D-E61D-4132-B87E-8A77D346061E.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Looks like you need new balances and a new pivot shoe. If the diameter of the outer tube is 3/8", then you can use our Series 900

I'm not sure about the shoe. I will need you to remove it from the window and tell me its precise width and thickness. That will let me find something in the same size.

A quick learner from Cumming, ga says:

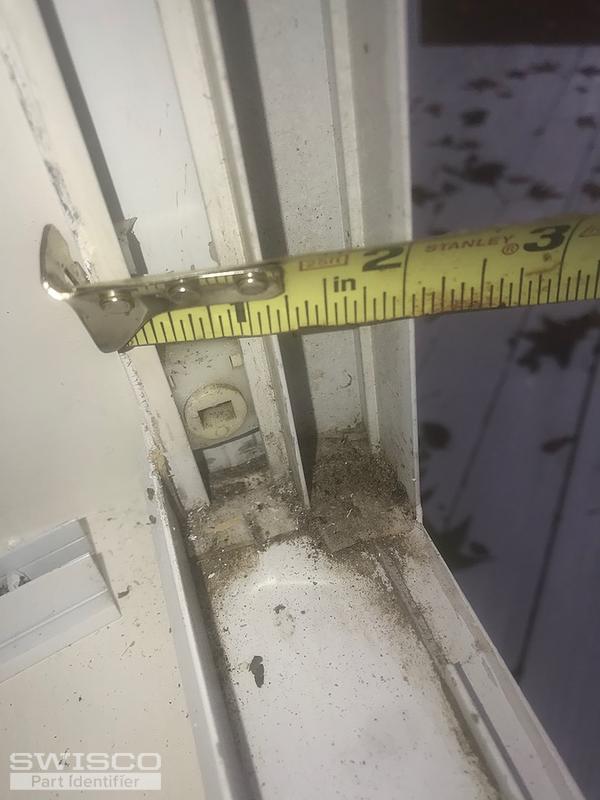

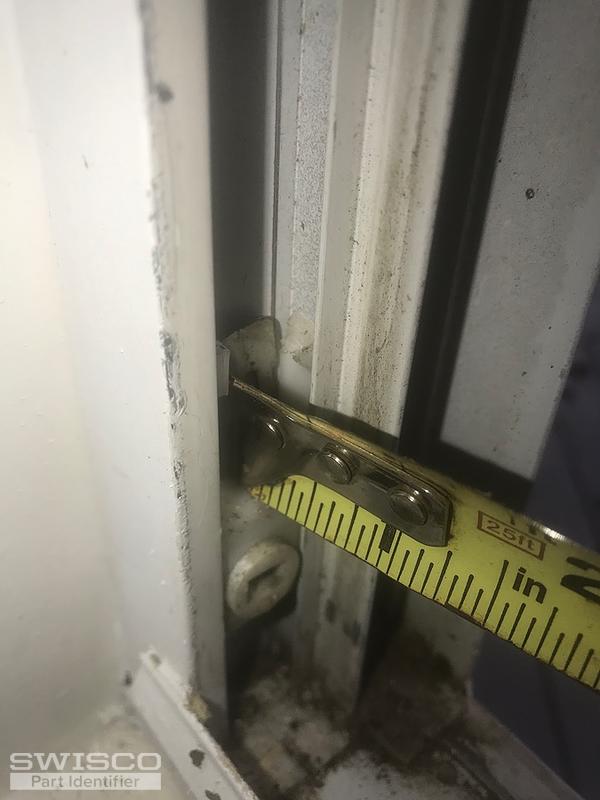

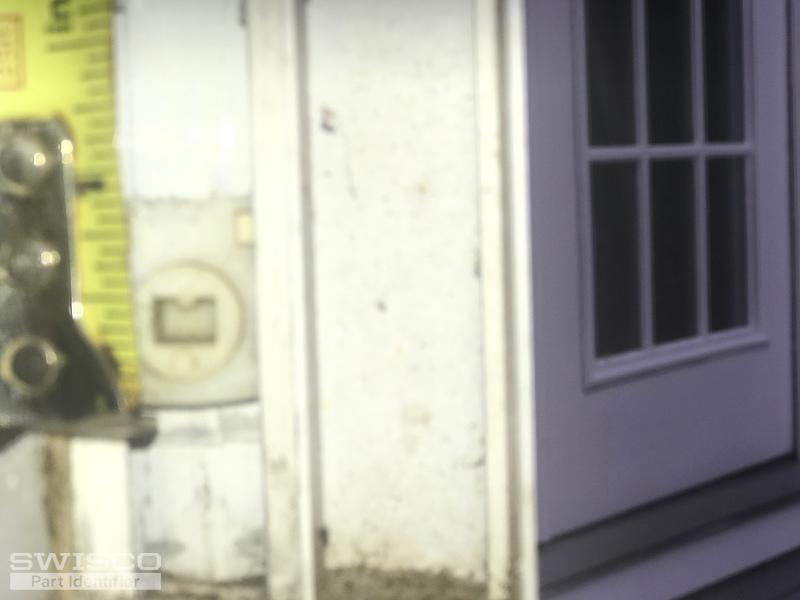

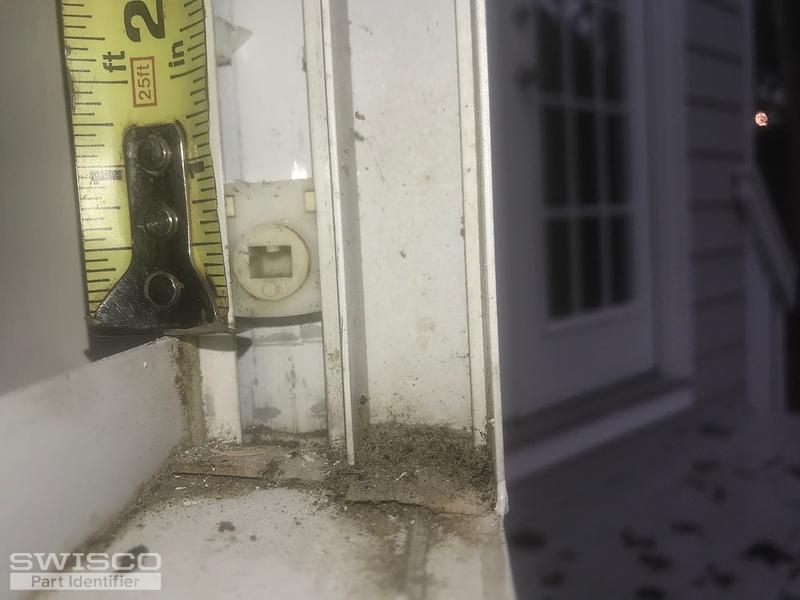

Shoe measurements
Thumbnail of the uploaded file named 9312B9CF-3E5C-457F-87AC-6D992788A6F5.jpeg
Thumbnail of the uploaded file named E79FAA0D-04CD-4C1D-93BB-E0282050E871.jpeg
Thumbnail of the uploaded file named A4817B81-27A9-4761-AFF9-EE86693D15A8.jpeg
Thumbnail of the uploaded file named B3D7FBDD-93CA-4B3F-BC45-45E9BD8A227B.jpeg
Thumbnail of the uploaded file named D2BF9687-9C5C-45BB-A440-3CC2D6F65ADC.jpeg
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid I can't really make out the shoe dimensions from these photos. It's not really possible to get precise measurements when it's still installed. You will need to take it out of the window frame and tell me its width and thickness.

A quick learner from Cumming, ga says:

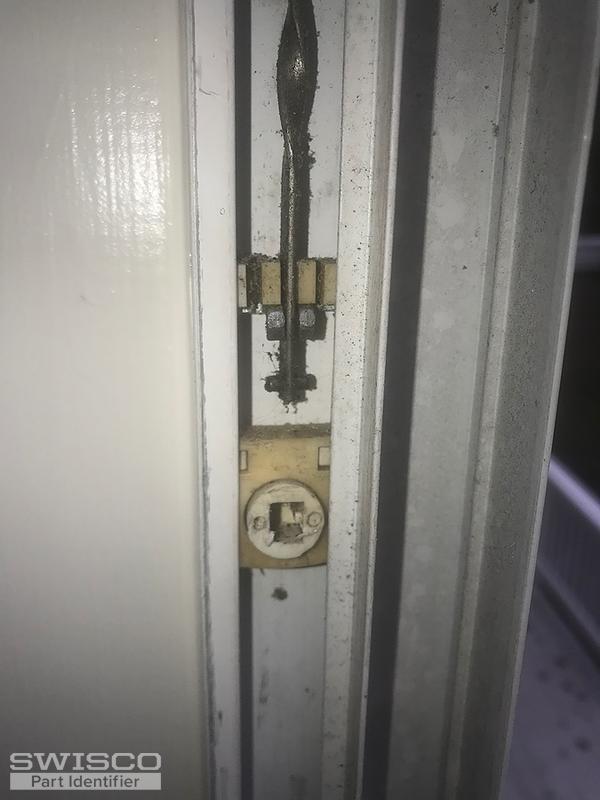

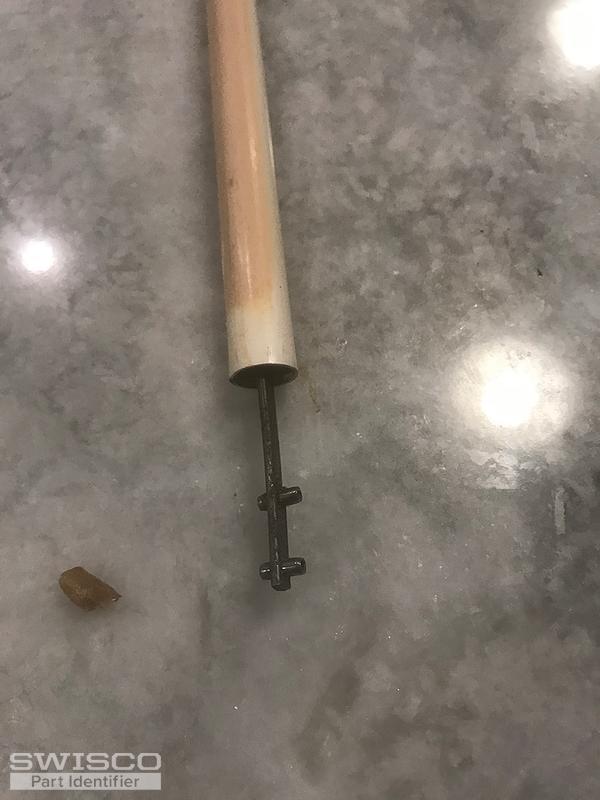

At second look, I don't know that I need the shoes, I was told the rod snapped into the shoe, but that is not correct. What is the part that it is snapping into here called?
Thumbnail of the uploaded file named BD67E774-3686-4FAA-84E1-7A145DF01E3D.jpeg
Profile picture of Tom
Tom from SWISCO responded:

The part connected to your shoe is the spiral balance. As we talked about before, yours is the Series 900, since you said it had a 3/8" diameter outer tube.

A quick learner from Cumming, ga says:

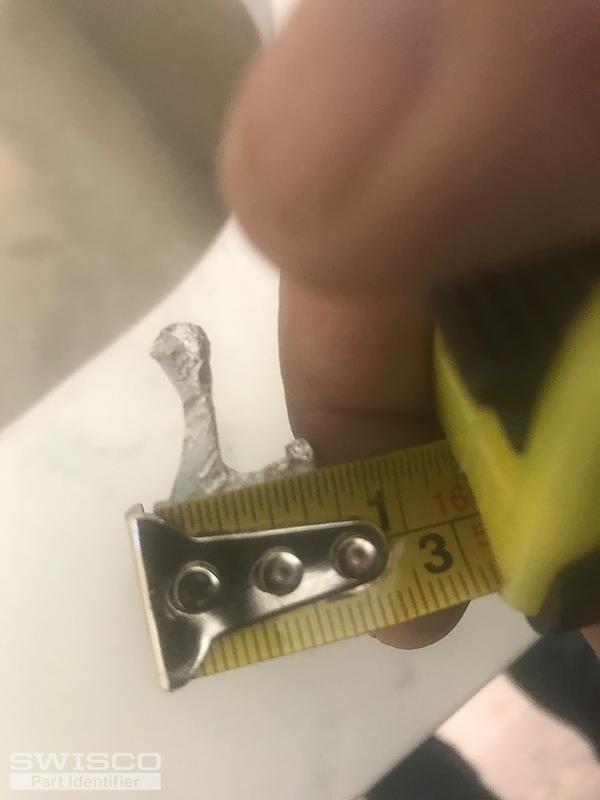

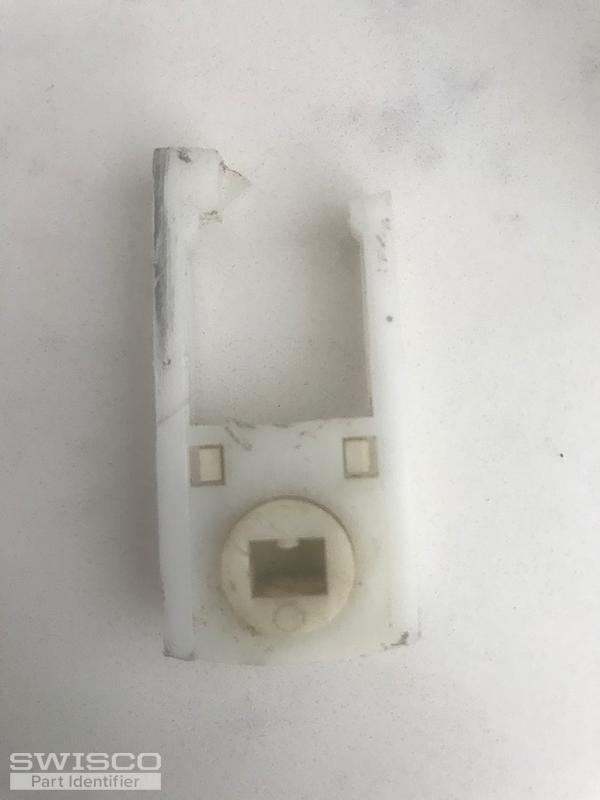

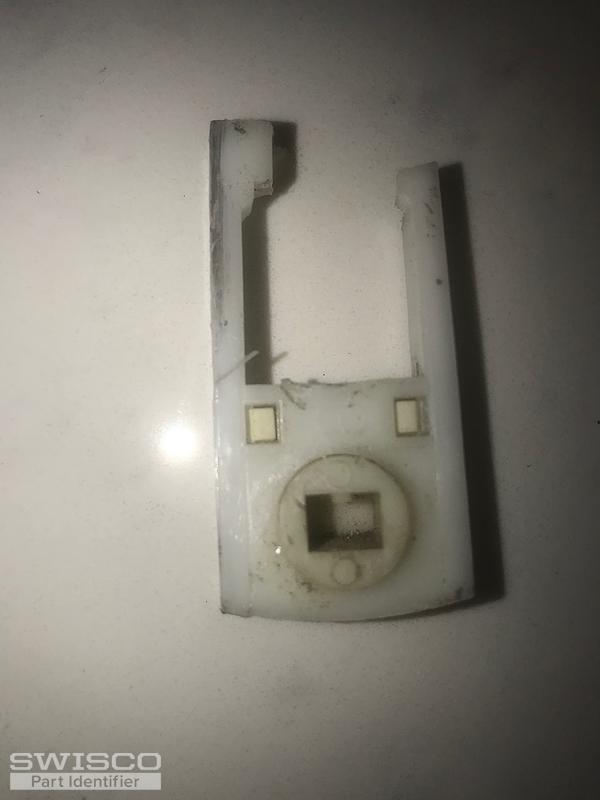

1 7/8 tall, 1 inch wide, 9/32 or 5/16
Thumbnail of the uploaded file named B82A4313-E169-415B-B266-F1C46552874E.jpeg
Thumbnail of the uploaded file named 6C516673-BE6A-41F6-95ED-47F6E9B8C0A9.jpeg
A quick learner from Cumming, ga says:

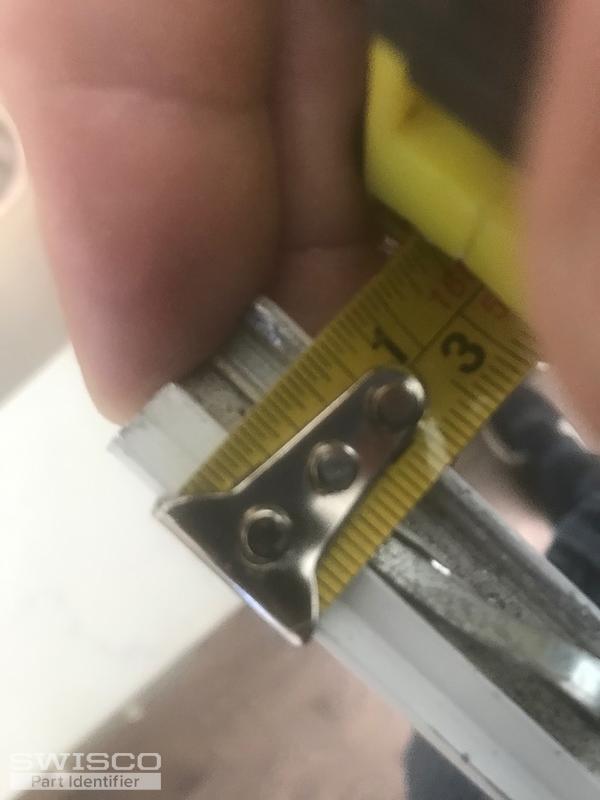

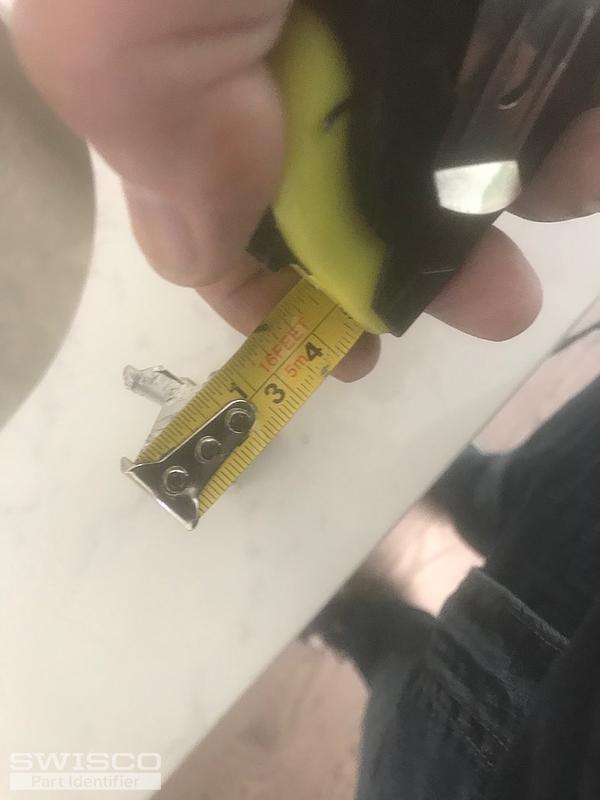

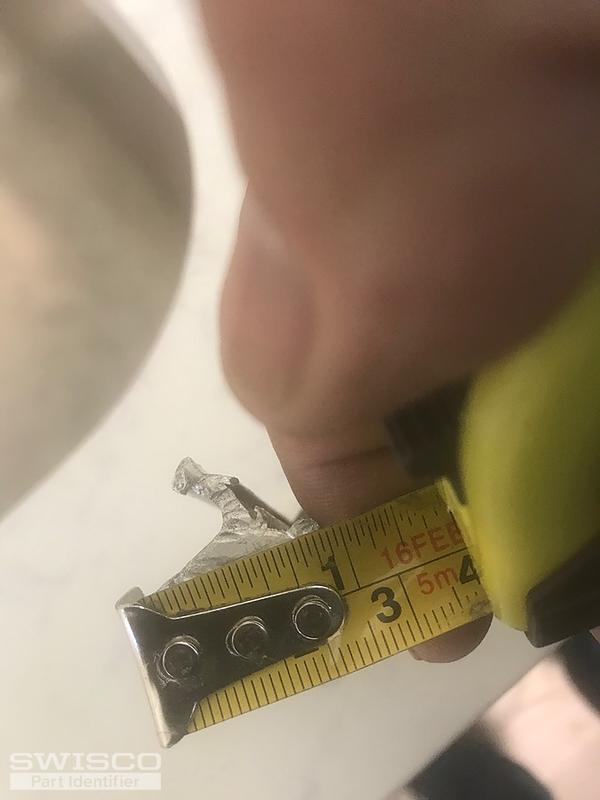

Need two of these 3/12 inches long
Thumbnail of the uploaded file named E23C2177-5EAC-42CF-B7C5-8020418FB9E9.jpeg
Thumbnail of the uploaded file named 2BF7B185-7397-4647-A30B-A583B44AEFF4.jpeg
Thumbnail of the uploaded file named CC40DB6B-78EF-4B09-97D3-C58C700957C0.jpeg
Thumbnail of the uploaded file named 58CDB342-1CEB-44E7-9BE2-A8948954DF95.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for getting back to us. That's a very small pivot shoe. I actually don't think this size is made anymore. The closest option we have in our inventory is our 15-134, but I cannot guarantee that it will work. Please review the dimensions we show on its store page and see what you think.

The other part you show looks like an old fashioned type of window lock. I'm afraid we do not have this model either, but we also don't have a substitute. I apologize for the inconvenience.

A quick learner from Cumming, ga says:
Having trouble finding links to videos on how to install the balances. Can you pls send?
Profile picture of Tom
Tom from SWISCO responded:

Sure, these balances are very easy to replace. The video below should cover everything.
