1have two broken windows, both are the lower.
one measures 30x261/2. The other is 34x281/2.
I need left and right assembly for both windows.

User submitted photos of a window balance.

9 Replies

Tom from SWISCO

Mar 27, 2017 10:20 am

I'm pretty sure we can help, but before we make a recommendation can you just show me a picture of your pivot shoe? We can use that to determine what you need. Also check to see if there's a stamp on your old springs, you will need that.

Quick Learner from New York

Mar 28, 2017 11:04 pm

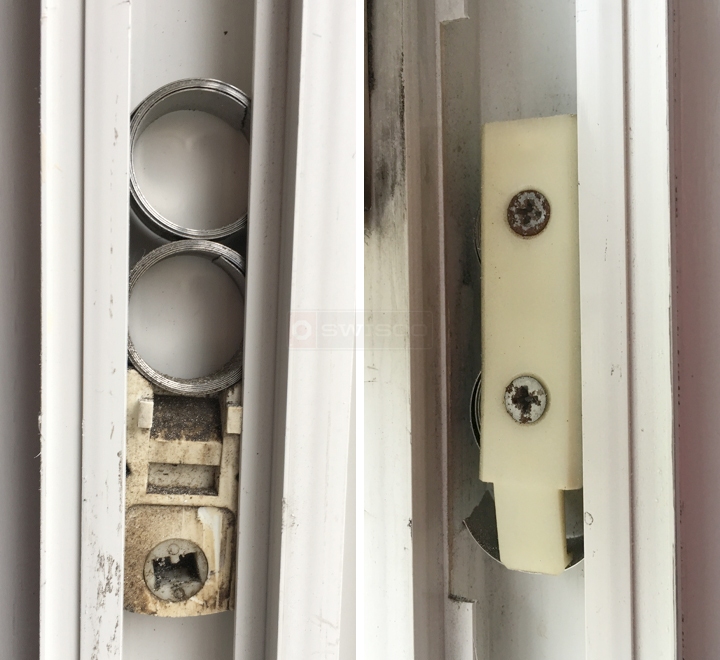

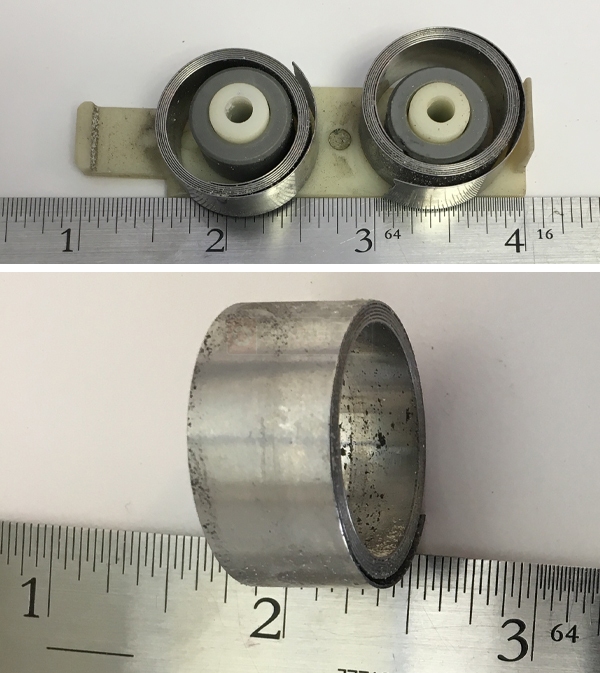

I looked at the broken spring for a number. I didn't see any numbers on the spring or the plastic holder. I have included the pictures you requested. If this is not enough info I can remove a working window and maybe find a number or get a picture that will help you. I can weigh the window with a digital scale if that will help you. I have at least 2 windows not working. They are slightly different in size. If we can locate parts I will replace all the springs in all windows. They are all getting old

Tom from SWISCO

Apr 3, 2017 12:31 pm

Thank you for the additional photos. The pivot shoe looks like a match for our 15-180, while the coil springs housing looks like our 18-181. I would presume they also use the 18-182 bushings. For the springs, I recommend our Series 190 balances. You'll need to weigh your sash to determine the best option, though.

Quick Learner from New York

Apr 14, 2017 11:55 pm

One sash 33" wide 27" high 19 lbs

Other sash 30" wide 27" high. 15.5 lbs

Can you also check to see if you have the Metal piece that is attached to the bottom of the sash that slides into the notch of the pivot Shoe

Chris

Tom from SWISCO

Apr 17, 2017 9:28 am

Assuming both windows use two springs on each side (four altogether), I would recommend S190-540 for the 19 pound sash (5 pounds per spring) and our S190-440 for the 15.5 pound sash (4 pounds per spring).

The other part you describe is known as the pivot bar. We may have something, but we'd need to see a picture of yours out of the sash. Knowing its measurements would also help, particularly the hole placement.

Quick Learner from NY

Apr 19, 2017 2:08 am

Thank you very much for your help. I will order the parts and get back to you with results.
Chris

Quick Learner from NY

May 2, 2017 1:56 am

I placed an order for all the parts you suggested. I did not see the 4 S190-440 springs. This was probably an error on my part. You have all my info, do I need to place a second order?

Chris

Tom from SWISCO

May 3, 2017 10:34 am

Hey, Chris. I'm afraid your first order already shipped. You will need to place a second one, yes.
