Spiral balance and sweep lock

Quick Learner from US

Mar 9, 2018 2:48 pm

height 60 inches inside
nontilt
3/4 × 2_1/4 window lock measurements
1_1/8
eries 1000
mst 4664
dh-r40
balance looks to be about 1/2 inch diameter
60 inch height

4 Replies

Tom from SWISCO

Mar 13, 2018 12:43 pm

Thanks for contacting us. The tilt latch looks like our 26-394. As for the spiral balance, it might be our Series 600 but I'm not sure. I would confirm the diameter of the outer tube. They don't make a balance like this with a 1/2" tube. It is probably 5/8", but I would confirm just in case. I would also make sure the end of the spiral looks the same, since yours has broken off.

Quick Learner from naples fl

Apr 5, 2018 11:52 am

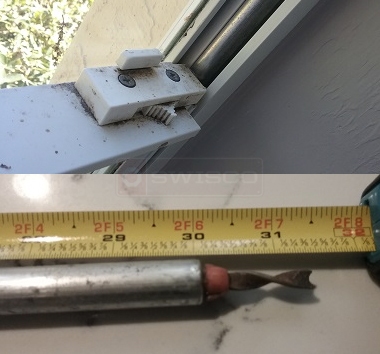

pictures attached of tube measurement, and needed end connection.

what do need to order?

2 user uploaded images

Tom from SWISCO

Apr 5, 2018 12:36 pm

Perfect, thank you. I think the Series 600 I mentioned will be a good bet since your tube diameter appears to be 5/8".
