Spiral balances

A home owner from Chattanooga Tennessee says:

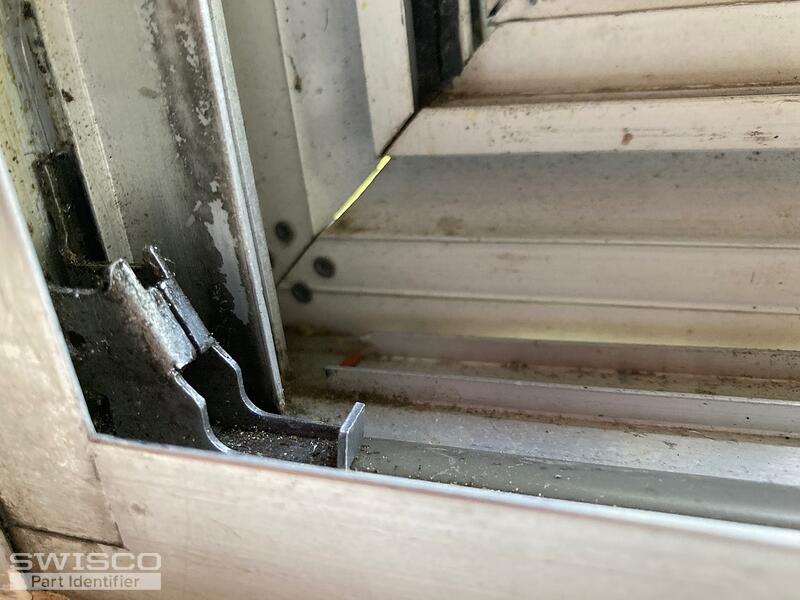

From Aluminum windows that are
very lightweight

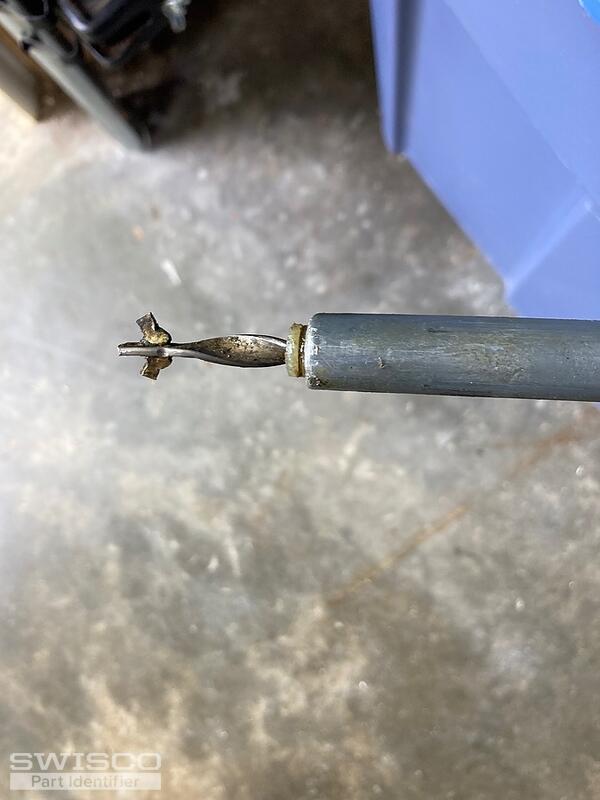

Plastic piece is white

I have been unable to find white ones. Will red work? Can the red be charged to work on a "white" weight window?

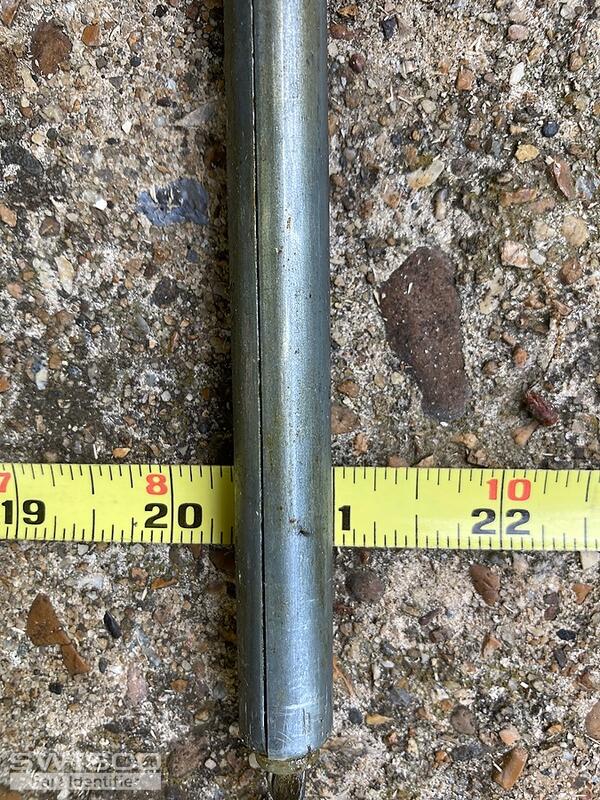

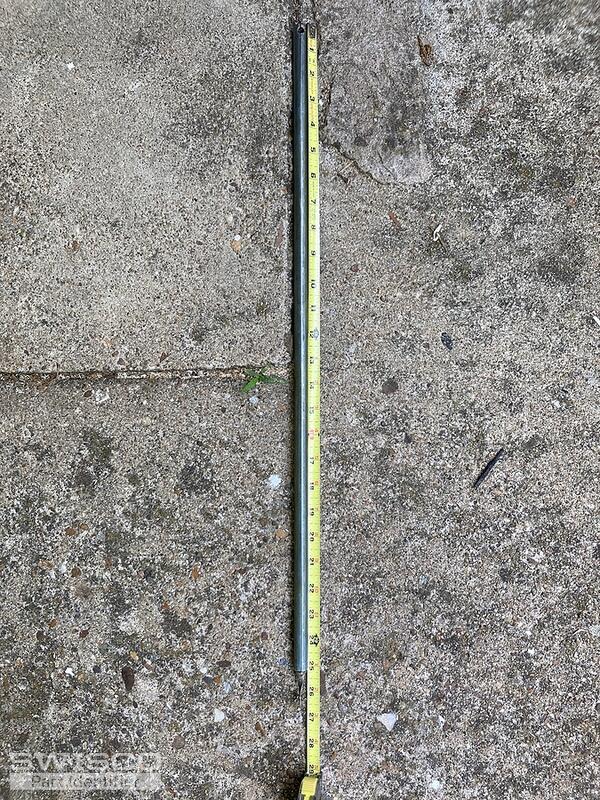

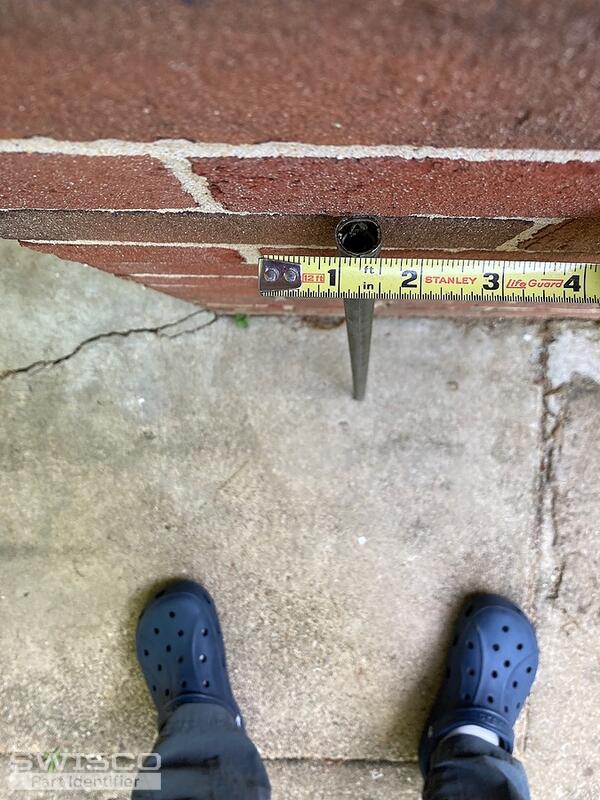

I get 25 inches long but not sure if 3/8 or 5/8. Seem to be in between

Thumbnail of the uploaded file named IMG_1168.jpeg
Thumbnail of the uploaded file named IMG_1173.jpeg
Thumbnail of the uploaded file named IMG_1171.jpeg
Thumbnail of the uploaded file named IMG_1177.jpeg
Thumbnail of the uploaded file named IMG_1175.jpeg
Profile picture of Jasmine
Jasmine from SWISCO responded:

Thanks for reaching out! It appears that your balance has a diameter of 5/8", which means you'd need the S500-25 non-tilt window spiral balance. To determine which tip color you'll need it is recommended to obtain the exact weight of the sash. I have seen instances where the red tip can be used for white, but that is not always the case. So that's why it is best to get the sash weight.
