Spiral non tilt balance

Start a new Discussion

Contractor from Augusta, GA.

Oct 9, 2019 10:25 am

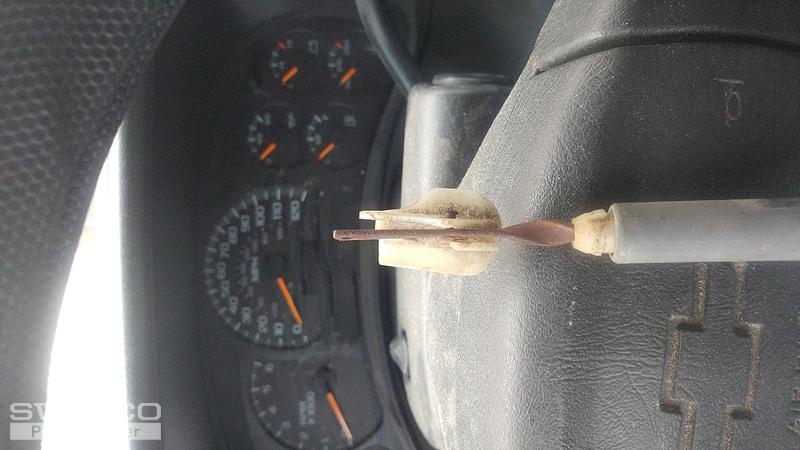

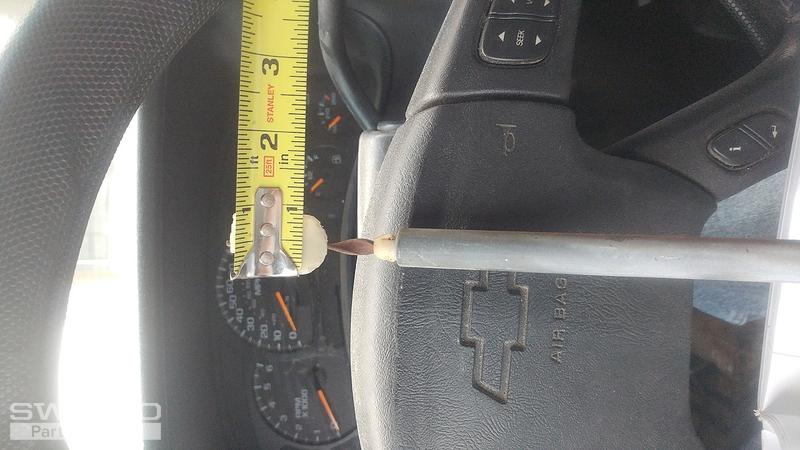

24" and 16" tube lengths. 9/16 diameter. Built on plastic shoe on end. Goes on aluminum window.

5 user uploaded images

2 Replies

Tom from SWISCO

Oct 14, 2019 12:12 pm

It's tough to make out what you have from these photos, since your bottom shoe is broken. You mentioned that the tube is 9/16" in diameter, though, so start by looking at our S200-24 and S200-16. These come with 15-010 shoe attached to the end of the spiral. Compare the dimensions of this shoe to your own (you should measure an undamaged version) and let me know how they match up.
