Spiral parts

A handy person from Nebraska but window is in Arizona at my vacation home says:
October 27, 2020

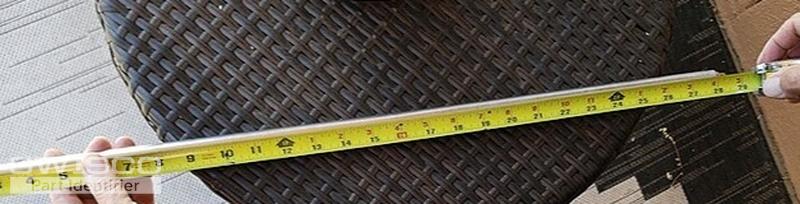

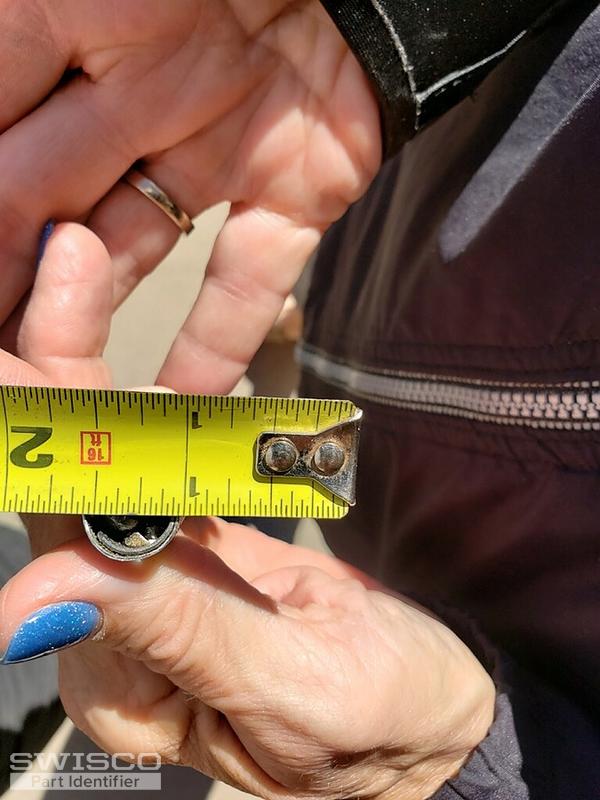

Spiral tube seems to be 9/16" with orange? tip (is that red?) 28" in length
Pivot shoe measured 1/2" thick (so possibly part 15-015 at 17/32"?)
Thumbnail of the uploaded file named 72AD96F2-EA91-436E-BCF4-5236F11083FE.jpeg
Thumbnail of the uploaded file named A95F8FC3-02B2-47D2-889B-B148253A6589.jpeg
Thumbnail of the uploaded file named 48619021-042B-44FE-A660-4BF473A6AE4F.jpeg
Thumbnail of the uploaded file named 04928935-5398-4AF6-8EE5-7A75CE95176E.jpeg
Thumbnail of the uploaded file named C2AD7192-C44B-4E45-A131-ABBEDE235084.jpeg
Profile picture of Casey
Casey from SWISCO responded:
October 30, 2020

Hello,

Take a look at our 5/8" diameter S600-28 spiral balance. To identify your pivot shoe, you'll need to remove an undamaged one to confirm the exact width and thickness. Thank you!
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
28" Series 600 Spiral Tilt Window Balance
28" Series 600 Spiral Tilt Window Balance
S600-28
$9.28
