Spiral tilt window parts

A quick learner from 02452 says:
October 23, 2017
Need Pivot Shoe, 1/2" thickness as shown in the picture
Need Pivot Bar, 1.5" (9864 part#)
Need crank
Spiral balance diameter 5/8"
Tube balance lenght 25"
Red tip
Window size top 29.5wx29h, bottom 30.5w x29h

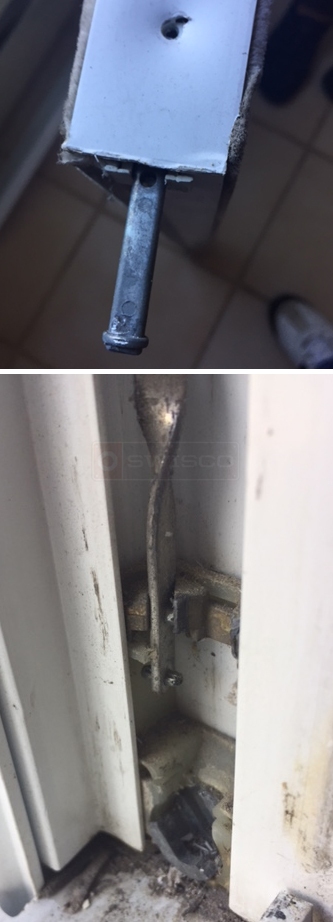

User submitted image of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
October 30, 2017
Thanks for contacting us. See our S600-25 spiral balance with a red tip, as well as our 15-188 pivot shoe. I would also recommend our 75-006 charging tool. As for the pivot bar, I'm not sure. It could be either our 26-226 or 26-352, but you will need to compare the distance from the tip to the center of whichever screw hole is used.
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
25" Series 600 Spiral Tilt Window Balance
25" Series 600 Spiral Tilt Window Balance
S600-25
$8.95
Pivot Lock Shoe, 1/2" Thick, Blue Break
Pivot Lock Shoe, 1/2" Thick, Blue Break
15-188
$3.70
Pivot True Pivot Bar
Pivot True Pivot Bar
26-352
$1.90
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
