Spiral window balance

Start a new Discussion

Landlord from Baltimore, MD

Aug 15, 2018 12:59 am

This window balance is within a plastic tube and has a green plastic cap. It measures 25" (entire tube)

2 user uploaded images

6 Replies

Tom from SWISCO

Aug 15, 2018 11:00 am

To start, is this for a tilt window? As well, what is the tube diameter (the outer tube)? Finally, you may want to weigh your window sash before you proceed, as that weight will be important. Come back with those three pieces of info, and we will move forward with the identification process.

Landlord from Baltimore, MD

Aug 15, 2018 6:51 pm

Sure it's a tilt sash. I'd want to say it's about 1/2" on the outer tube. I will try to get the weight. Let me know if this gets us closer to the part or at leas narrows it down.

1 user uploaded image

Tom from SWISCO

Aug 16, 2018 9:32 am

Looks like the diameter is just one notch above 1/2". Does that sound right? Trying to read a ruler in a photo is usually not a great idea. Once we have the weight and you confirm that, we can get the exact part number.

Landlord from Baltimore, MD

Sep 7, 2018 7:48 pm

Hello, sorry for the late reply. I weighed the sash to about 16lbs 10oz. The sash had to lean slightly on my hand so that it would stand upright on the scale so I would say 17lbs to be safe.

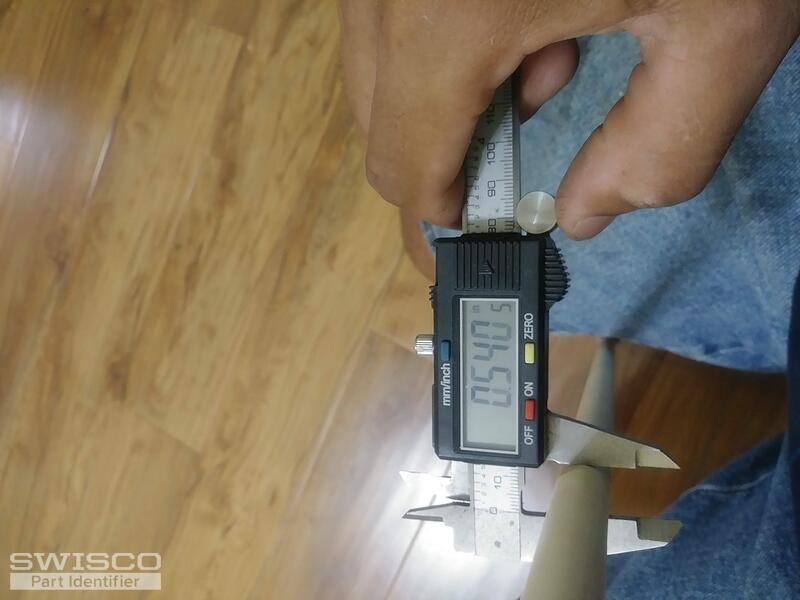

I have attached a photo of the tube diameter. It seems to be slightly over half an inch.

1 user uploaded image

Tom from SWISCO

Sep 10, 2018 10:32 am

Great! Choose S600-25 with a red or blue tip. Thanks for visiting SWISCO.com!
