Spline mounted plastic screen window latch pull.

Home Owner from Pleasantville, NY 10570

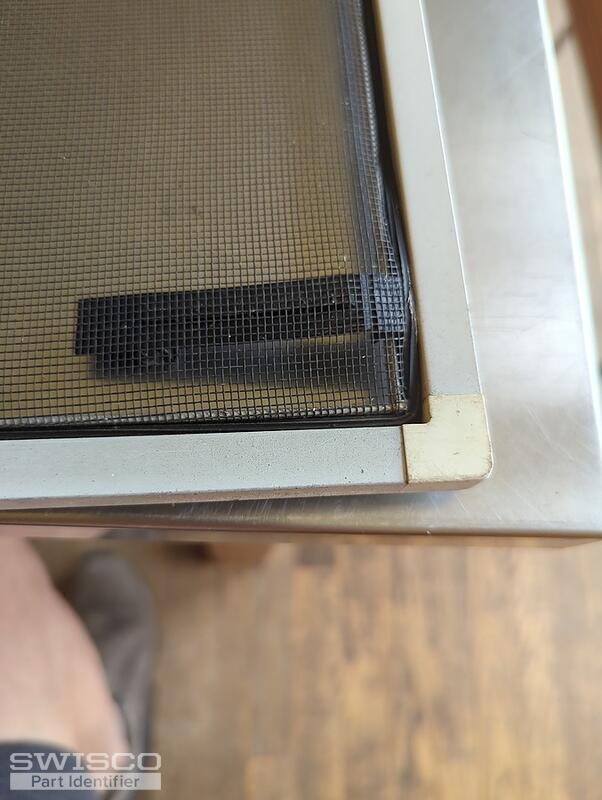

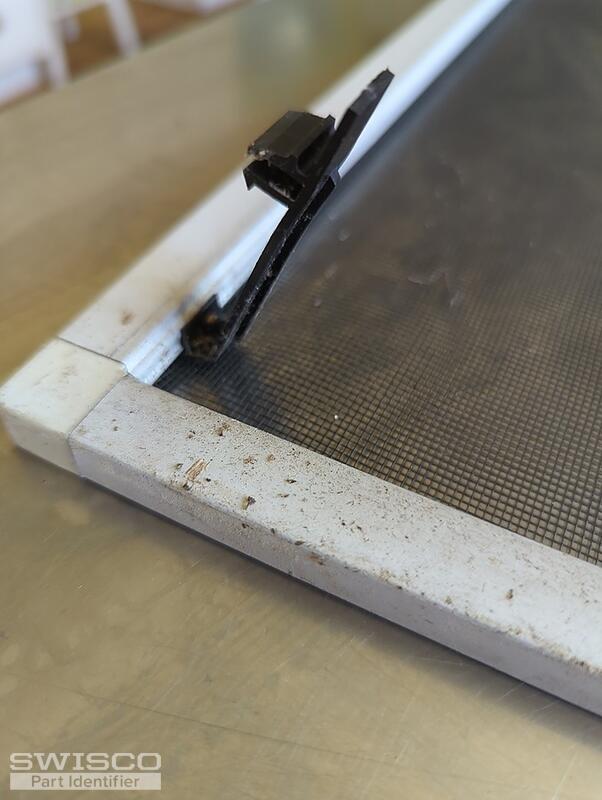

Probably from Malta (the windows are Malta). The full width of the frame, all the way to the spline channel is 11/16th", the visible plastic corner bracket is 5/8th", the thickness is 3/8". The screen latch arm is 1/4" wide, and the overall length outside outside of the frame, from edge of the frame to the end is 2 1/2", and the distance from frame to the center of the catch tab that gets inserted into the jamb spring channel is 2". It is a dual fin tab that goes into the spring channel in the jamb. The latches are symmetrical. The white and black parts in the photos are the same except for color.
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your screen latch resembles the Malta 70-048. Review the specifications below to confirm it's a match. Thanks for posting!

Alternate image for 70-048
Alternate image for 70-048

Profile diagram of 70-048
Profile diagram of 70-048
