Sprial Balance for MW Window

Home Owner from Alabama
Oct 16, 2023 10:34 am

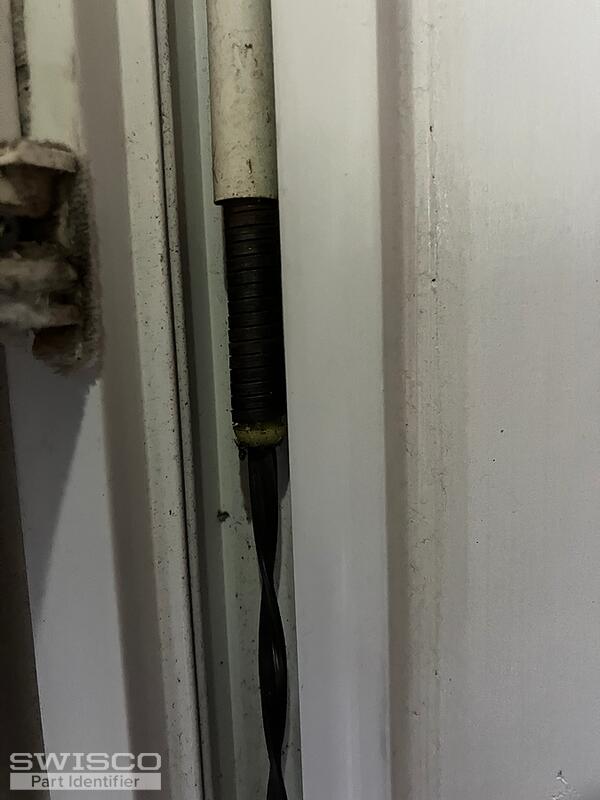

I think I need the Series 900 spiral balance. The tube on my existing balance is 33.75in. 3/8" diameter. Would that be the 34" Series 900?

Window is a 30"x 69.25. Bottom sash weighs approximately 20lbs. Double hung tilt.

Pics attached.
IMG_2079 IMG_2081 IMG_2083 IMG_2080
4 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Oct 16, 2023 2:46 pm
SWISCO
EXPERT

Thanks for posting! It does sound like our S900-34 is the replacement you'll need for your existing tube. Although, you'll want to double check that you measurement up to the colored plastic tip, but not including it.

Since your balance has a white tip and you believe it is 20lbs, then the white tip option should work fine for your sash. It can support a sash weighing between 7 to 22lbs.
