Hello, My window is missing this small tension spring that keeps the window up in the channel. Do you have anything similar to this. Sorry I don't know the make of the window, my father had them installed about 19 years ago

2 user uploaded images

8 Replies

Quick Learner from New york

Jul 10, 2025 1:08 pm

It is a single open edged spring with one end going under a little ledge on the plastic rider clip

Quick Learner from New york

Jul 14, 2025 11:00 am

you were recommended by other spring companies as the experts in resisdential windows!!

Emily from SWISCO

Jul 14, 2025 3:08 pm

Hey there!

Thank you for reaching out to us. We can help with this, but your pivot shoe is too obscured by the window sash. Can you remove the sash and show us a clear shot of the pivot shoe assembly?

Quick Learner from New york

Jul 18, 2025 12:23 pm

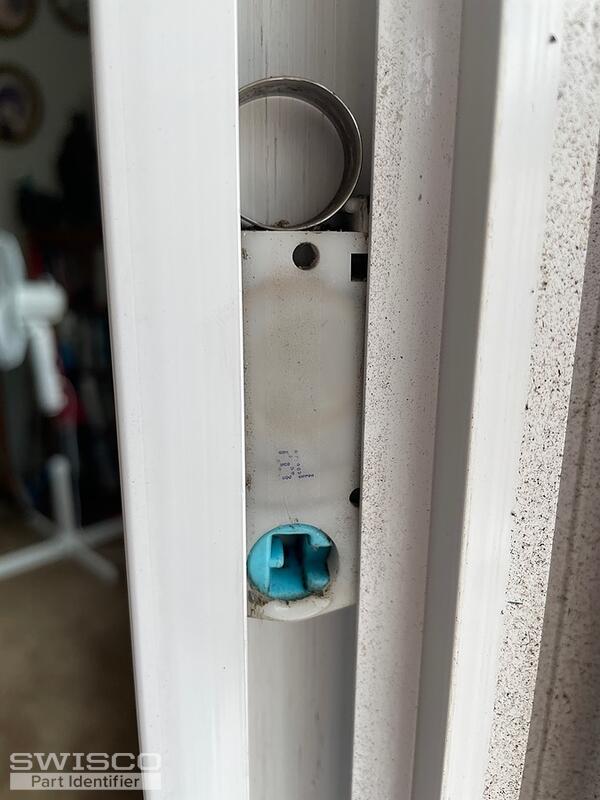

Left and right pivot shoe

2 user uploaded images

Emily from SWISCO

Jul 18, 2025 1:45 pm

Perfect! Thank you for getting that for us. I recommend the 15-087. Since the shoe is stamped with the number 8, please see the S180-08 8-pound coil spring, which is sold separately. Take a look and see what you think.

Detail of 15-087

Quick Learner from New york

Oct 21, 2025 4:55 pm

Thank you for all of your help, the instillation went off without a hitch. by far the best , informative sales reps in the business.

Emily from SWISCO

Oct 22, 2025 7:47 am

That's great! We're happy to hear the repair went smoothly. Please don't hesitate to reach out if you need anything else!
