33.5" long metal to metal
Channel inside width .5"
Markings on existing spring balance:
"33 9"
"BSI RM"
Window this balance will go into:
Milgard Manufacturing code MG-1
Series: 3210 SH
Product Line # 032 -15(unreadable after this)
I have additional photos if necessary
Spring Balance for Milgard MFG Center Window
Quick Learner from Seattle, WA
May 27, 2023 2:38 pm

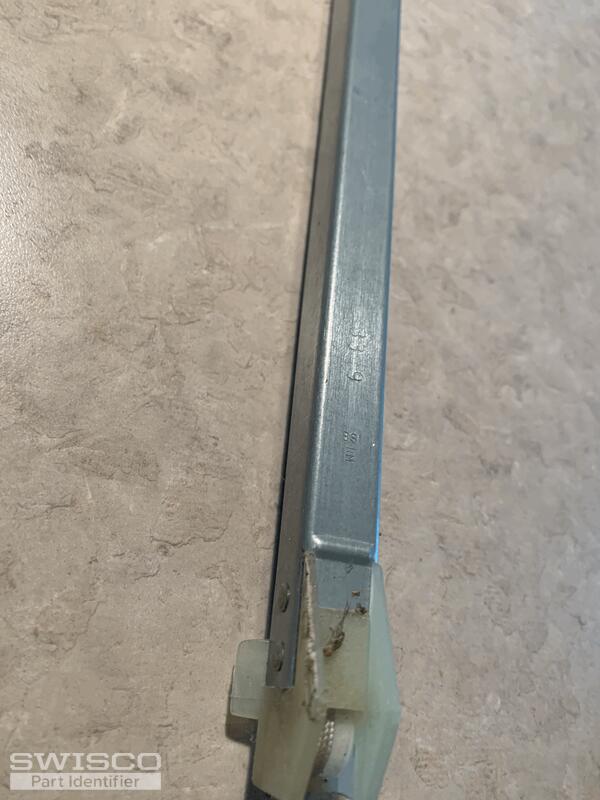

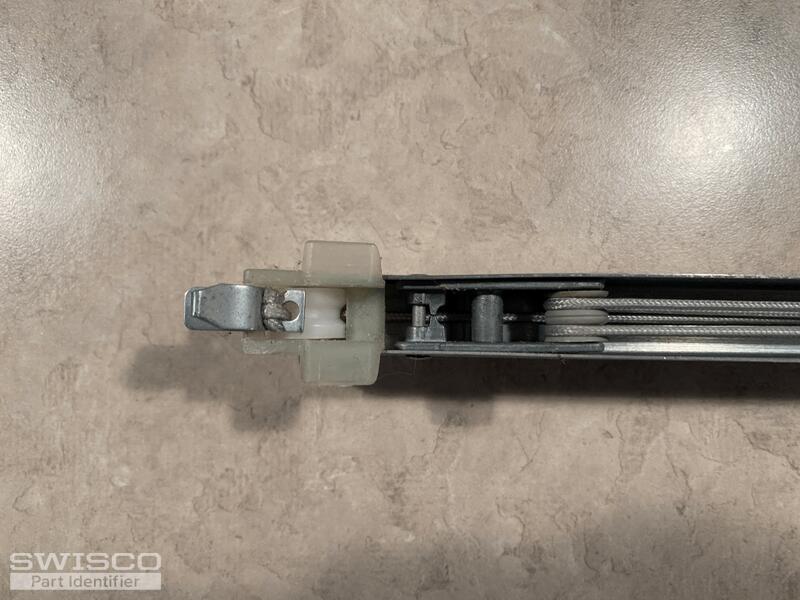

5 user uploaded images
6 Replies
Emily from SWISCO
May 31, 2023 11:16 am
Hello there!
Thank you for reaching out to us. We can help supply this balance but it will have to be a custom order due to its configuration. The pulley wheel is built into the bottom fitting itself and this balance features an extended cord travel as well as a metal channel length ending in 5/8" which is what makes it custom. For example, the metal channel should measure 33-5/8" long. Custom orders are nonrefundable so you may want to double-check this to be safe.
In the meantime, can you confirm the number of balances you'd like to replace?
Quick Learner from Seattle, WA
Jul 20, 2023 4:47 pm
Hello Emily!
Thank you for reaching back out. Since my original request I've done more work on my windows, and promptly broke 2 additional balances.
My order will be:
QTY (4) balances for a previously discussed and imaged. The metal channel in this balance is in fact 33 5/8" long
QTY (4) balances with pictures attached. markings: "33 9 8SI RM" The metal channel measures 34" long.
Thank you,
Alan
Thank you for reaching back out. Since my original request I've done more work on my windows, and promptly broke 2 additional balances.
My order will be:
QTY (4) balances for a previously discussed and imaged. The metal channel in this balance is in fact 33 5/8" long
QTY (4) balances with pictures attached. markings: "33 9 8SI RM" The metal channel measures 34" long.
Thank you,
Alan

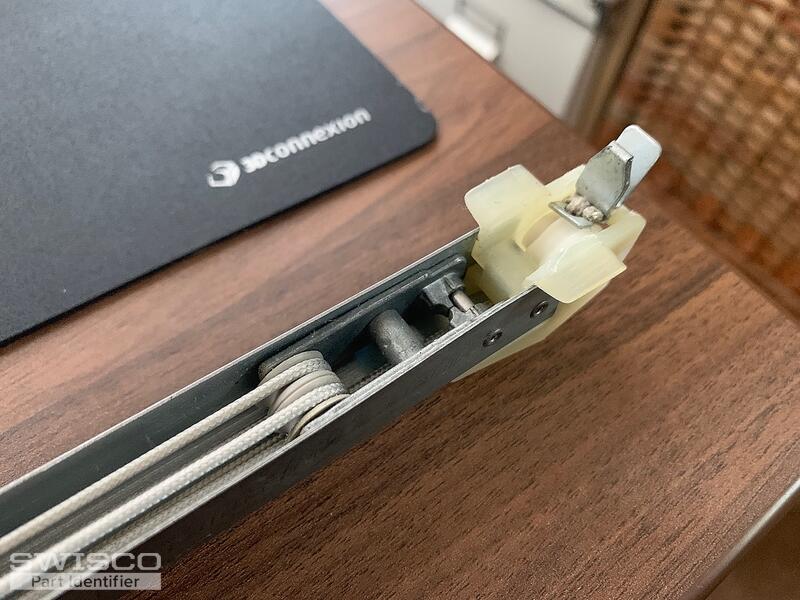

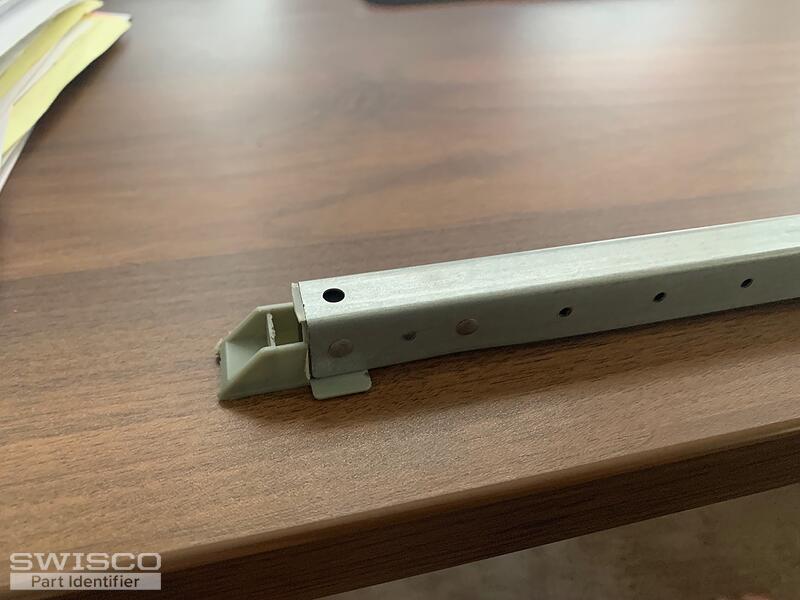

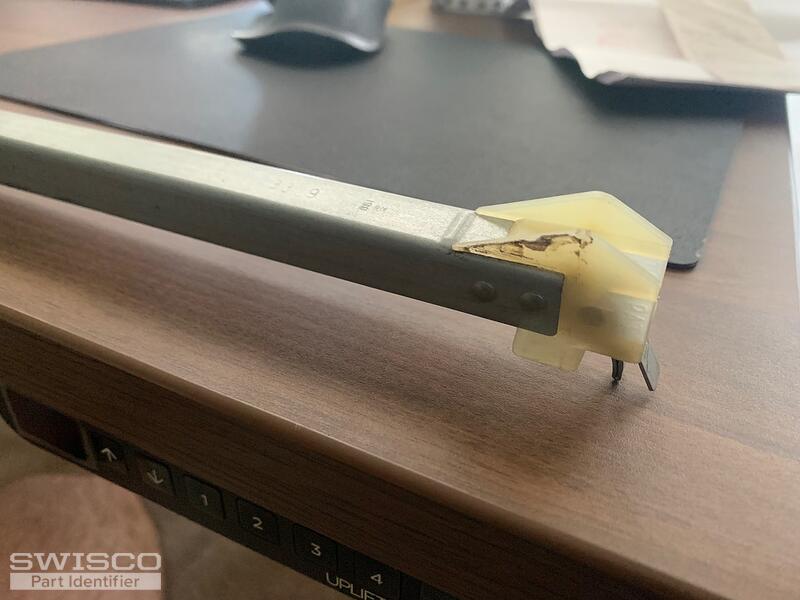

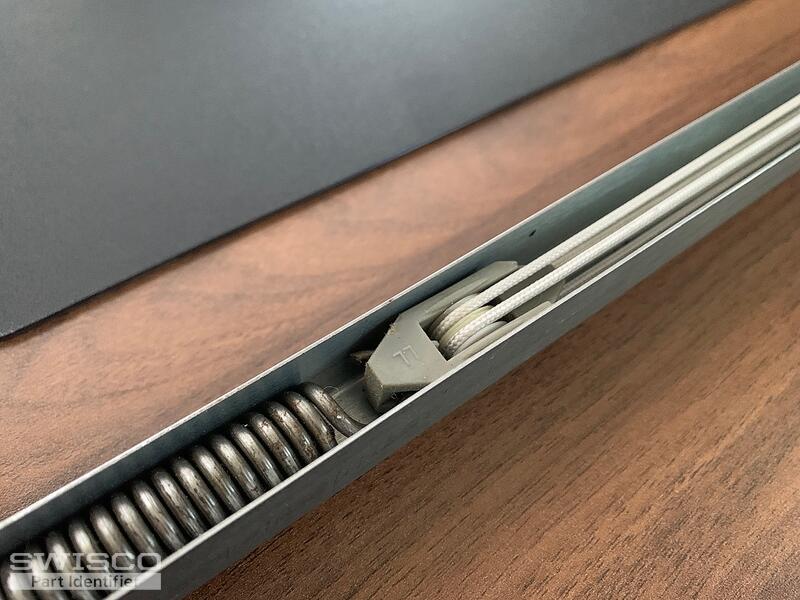

5 user uploaded images
Emily from SWISCO
Jul 24, 2023 9:42 am
Hey, Alan!
Our replacement extended travel channel balances are only designed to replace those with metal channels that end in 5/8" lengths. I'm afraid we can't promise they'll work for you if your measurement differs from this. Just something to keep in mind.
To confirm, are you looking to purchase (8) balances with the 33 9 stamp?
Quick Learner from Seattle, WA
Jul 25, 2023 12:31 am
Hello Emily,
Correct, I'm looking for a quote on 8 total balances.
Thank you,
Alan
Correct, I'm looking for a quote on 8 total balances.
Thank you,
Alan
Emily from SWISCO
Jul 26, 2023 11:06 am
Great, thank you kindly! I will email you a purchase link right now for (8) balances that you can use to place an order on our website. If you have any questions just let me know!
