Spring Balances for International Window (Mfg. around 1996)

Question

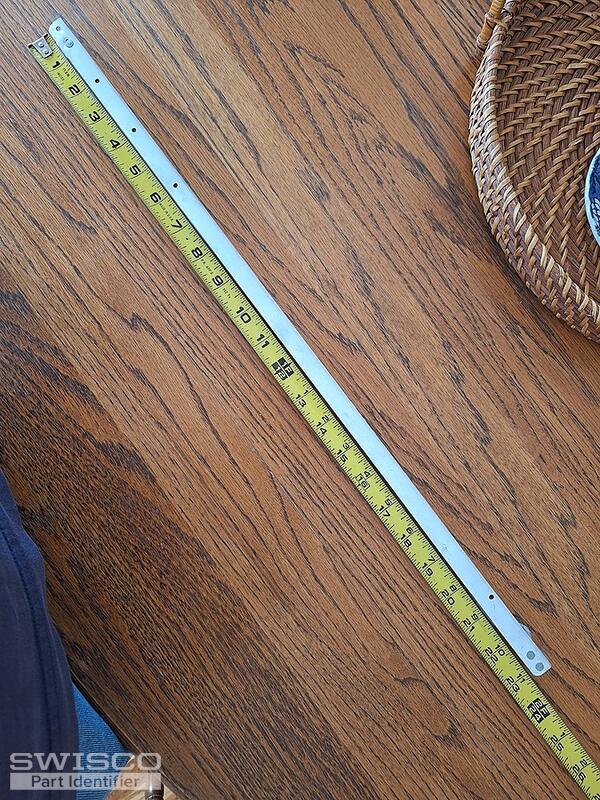

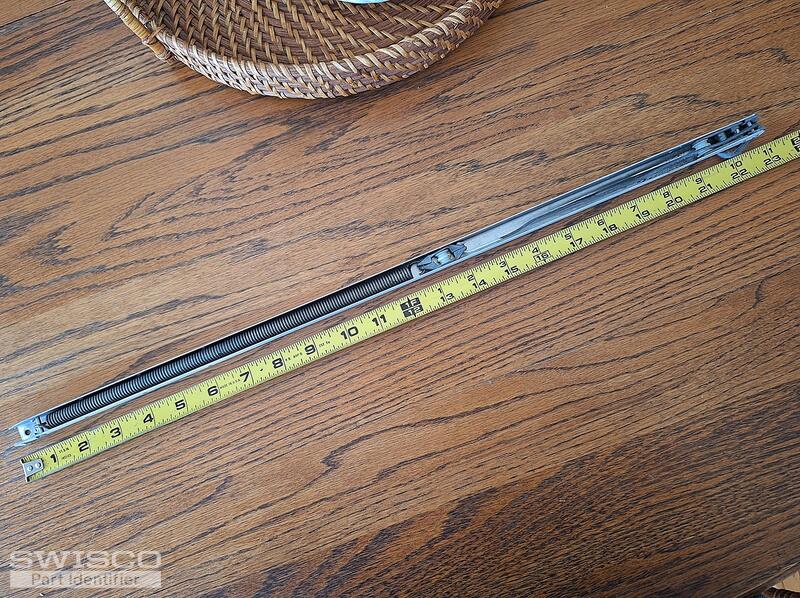

The windows are 3' x 4' .  The balances fit in a channel.  The dimension of the balances is 1/2 '  x  1/2 '  x  23 '.  Each balance is stamped C2240.  About myself:  Homeowner, do-it-myselfer.  I've changed out these balances before.

Casey · Accepted Answer

Hello,

Your channel balance resembles the S770-23. Your stamp code differs from ours, but it should correspond to the 23D option for our replacements, which will support a sash between 21-24 pounds. I'd suggest weighing your sash to ensure it falls within the supported range.

Close up view of the Series 770 balance top.

Close up view of the Series 770 balance bottom.

If you need new pivot shoes, take a look and compare the specifications of the 15-015 to yours. Thanks for posting!

Dimensions for 15-015
