Spring Loaded Metal Piece for Vinyl window

A quick learner says:
November 19, 2017

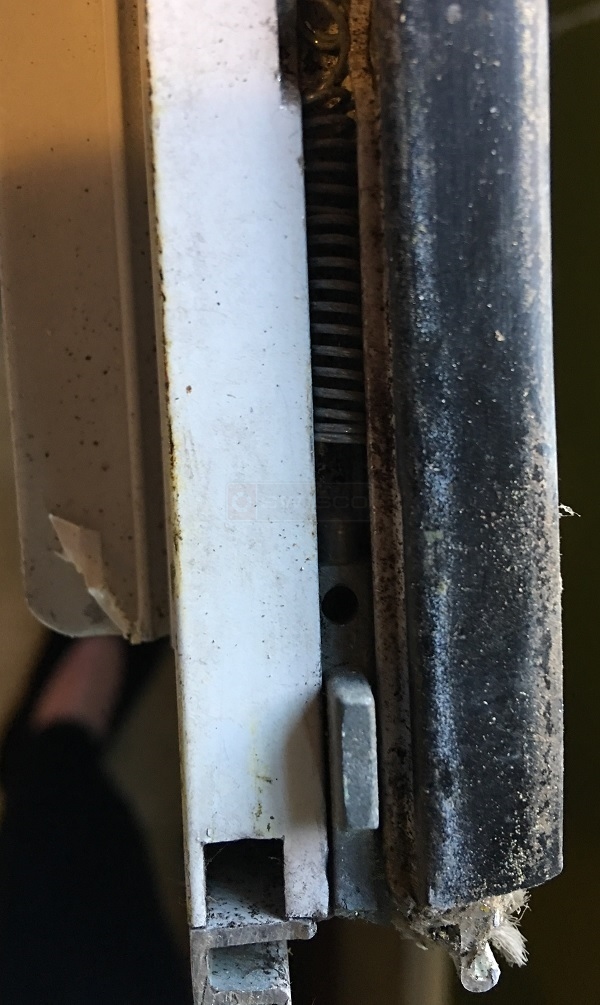

Spring loaded piece that slides into the window balancer foot that holds the bottom of the window in the track
vinyl window pivot
Profile picture of Tom
Tom from SWISCO responded:
November 22, 2017
The first part to comes to mind is our 26-375. This works under the same kind of principle as your pivot bar. Carefully look it over and let me know what you think.
A quick learner from bed room says:
November 22, 2017
how do you remove and install new part???
Profile picture of Paul
Paul from SWISCO responded:
November 27, 2017
The 26-375 has a locking pin at the top that needs to be disengaged so that you can remove it. In some cases, you will need to unscrew the bottom rail of the sash itself and pull it away slightly from the glass so you can take out the pivot bar. Be very careful if you have to do this, as you don't want to damage the window itself.
Pivot Bar, Better Bilt
Pivot Bar, Better Bilt
26-375
$1.97
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
