Spring holder.

A quick learner from Asheville, N.C. says:
April 10, 2023

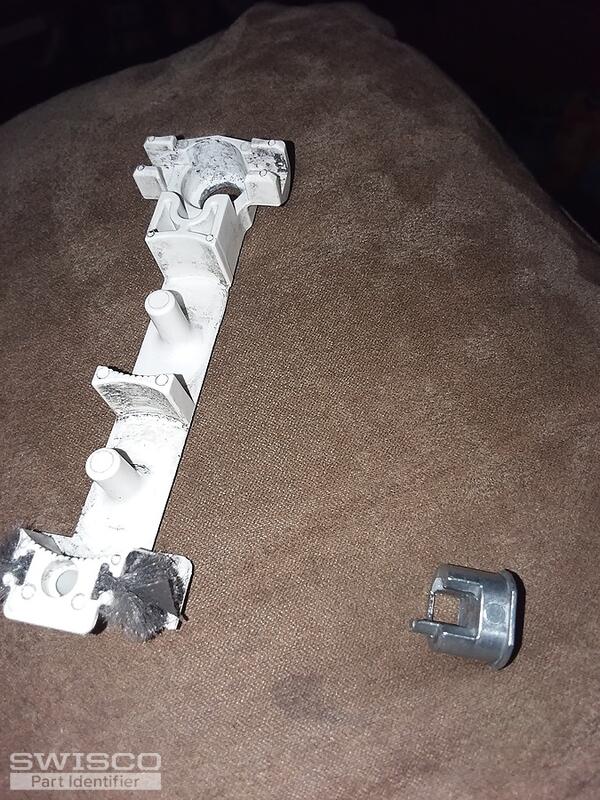

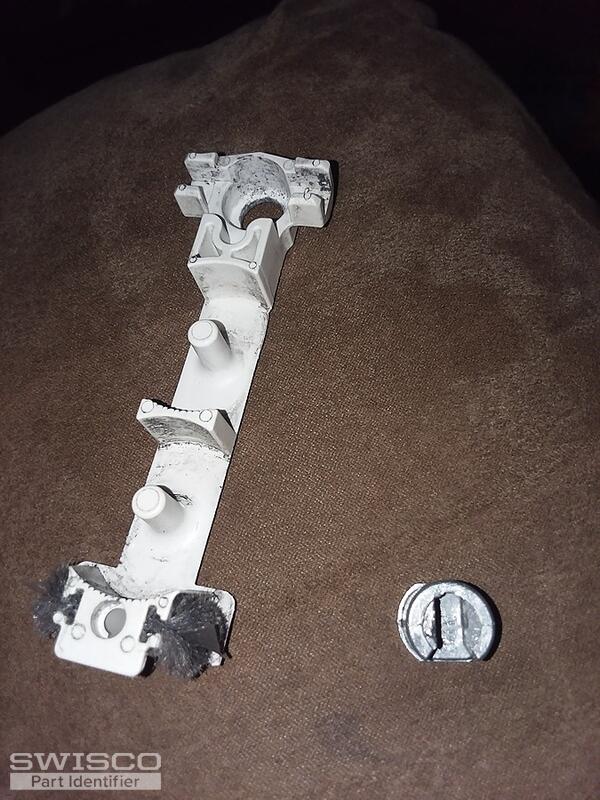

The spring holder has the number 11 on it. The pivot piece has the number 4 on it.
Thumbnail of the uploaded file named 20230410_103701.jpg
Thumbnail of the uploaded file named 20230410_103649.jpg
Profile picture of Lauren
Lauren from SWISCO responded:
April 11, 2023

Hello, thank you for posting,

Please review the 15-252 Inverted Universal Dual Support as a potential replacement option that is compatible with the Series 160 coil springs. Since your original cover is marked with an (11), that should indicate that the assembly holds 11 pounds of weight. You can use (2) S160-5 coil springs for the pivot shoe. Together with the assembly on the other side of the window, the coils can support a 22 pound sash weight. We recommend obtaining the weight of the sash to confirm this.

Please review all dimensions to confirm a good fit and let us know if you have any additional questions.

Detail of 15-252
Detail of 15-252
5.5 lbs Series 160 Coil Balance
5.5 lbs Series 160 Coil Balance
S160-05
$4.63
Inverted Universal Dual Support
Inverted Universal Dual Support
15-252
$4.20
