Spring kinked up. Need to replace. Window is silver line 8002344228

A quick learner says:
May 17, 2022
Need replacement spring and balance for silver line window constant pivot balance. Model 8002344228

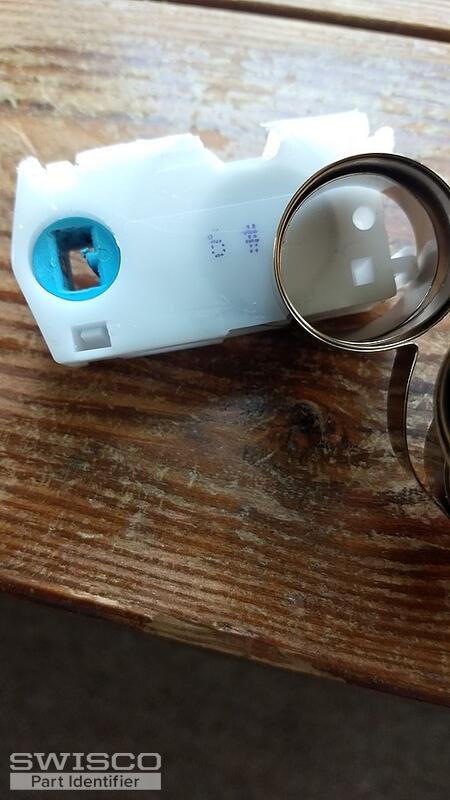

Thumbnail of the uploaded file named 16528037576588282062596092115663.jpg

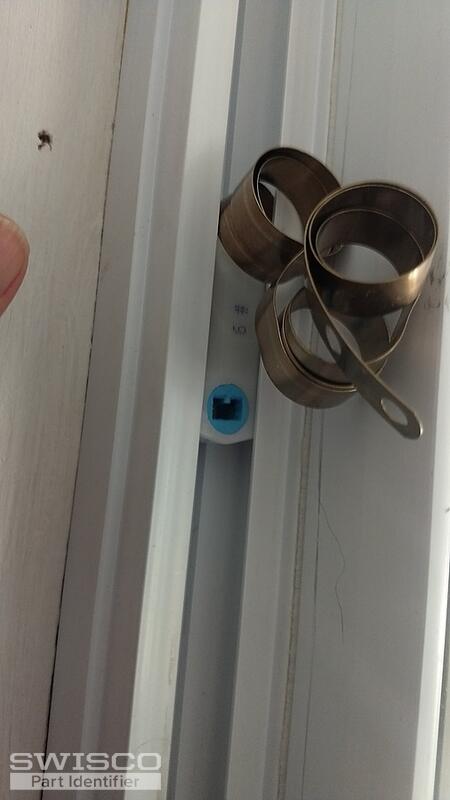

Thumbnail of the uploaded file named 1652808170162674202972311705395.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 19, 2022

Hello! We sell the individual components of this balance separately. Please see our 15-087 pivot carrier and our Series 180 coil spring. I am confident that these will work for your window, but please let me know if you had any questions.
A quick learner says:
May 19, 2022
One question. The cool lb? By the markings on the part is it a 6lb coil?
Profile picture of Tom
Tom from SWISCO responded:
May 19, 2022

Yes, that "6#" usually indicates a coil calibrated to hold 6 pounds. You can confirm this by weighing your sash on a scale. If your coils carry 6 pounds each then the sash should weigh 12 pounds total.
A quick learner says:
May 19, 2022
Thank you
