Spring loaded handle 4" long x 5/8" diameter, 1-5/16" wide (NOT including 1/8" locking tab in center).

Home Owner from Rancho Cordova, CA
May 23, 2023 10:52 pm

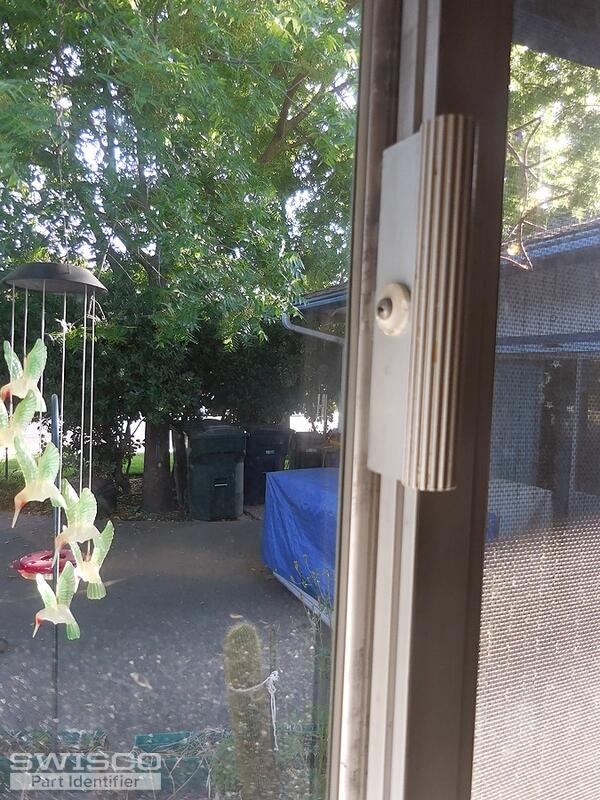

Dimensions are under "subject". Final picture shows all 5 parts. The 1/8 inch thick by 1/4 inch square nut engages a slot in the sliding window frame and the spring pushes the locking tab into a slot in the fixed window frame. I have included photos per your request. I am looking for 3 complete assemblies with all 5 parts as shown. I could find no visible markings on the device.
DSCN4791 DSCN4792 DSCN4793 DSCN4790
4 user uploaded images
7 Replies
+ Add a Comment
Emily
Emily from SWISCO
May 24, 2023 1:49 pm
SWISCO
EXPERT

Hello!

Our 90-315 was the first part to come to mind. Take a look at the specifications and see how they compare with yours.

Let us know if you have any questions!

Home Owner from Rancho Cordova, CA
May 25, 2023 1:10 pm
Hello Emily,

Regarding Discussion #290087

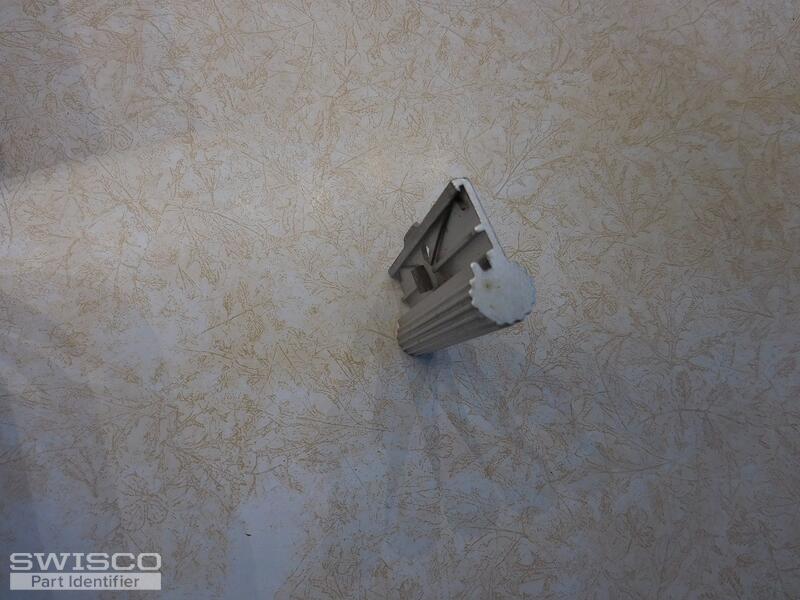

Part # 90-315 looks promising, but I have a question about the difference in its curved handle or "grip", which is different from the round handle on the ones I'd like to replace. I'd like to be sure that the difference in the grip is strictly cosmetic rather than functional. I have added a photo to show the round handle.
DSCN4796
1 user uploaded images
Emily
Emily from SWISCO
May 26, 2023 8:27 am
SWISCO
EXPERT

We don't sell this exact style but it is our best option. As long as the specifications match up, you should be good to go!

Home Owner from Illimois
Jul 8, 2023 9:06 pm
Emily,

90-315 latch is good but as mentioned in this thread I dont see locking tab. Is this latch comes with locking tab?

Thanks
Jay
Emily
Emily from SWISCO
Jul 10, 2023 8:33 am
SWISCO
EXPERT

I'm afraid I'm not sure what you mean by locking tab but see the image below for how this latch is configured. Let us know if this helps.

Measurement detail of 90-315
Measurement detail of 90-315

Alternate view of 90-315
Alternate view of 90-315

Home Owner from Illimois
Jul 10, 2023 4:58 pm

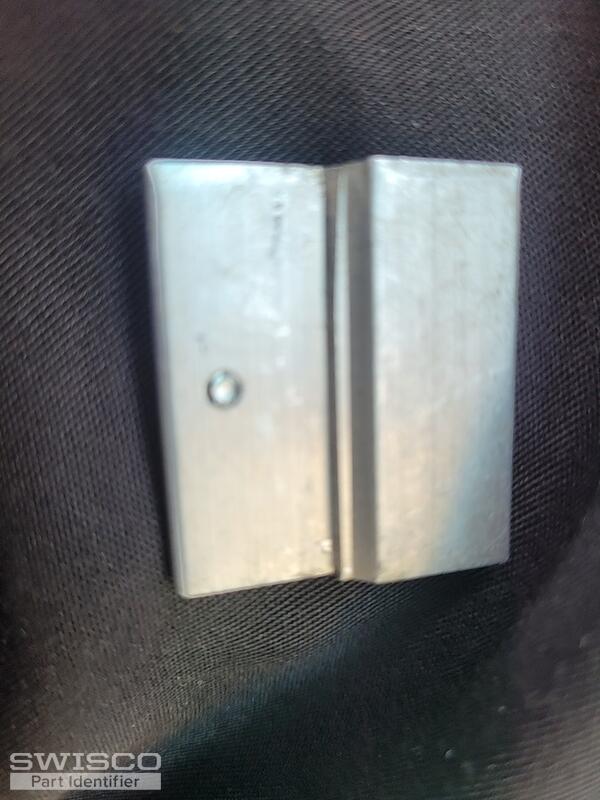

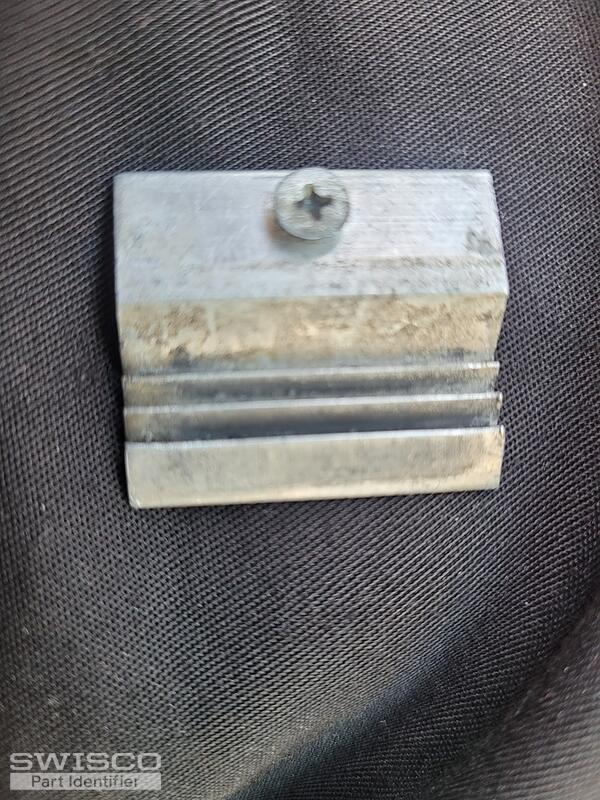

I am looking for this part. This is locking system front and back. If you have that then I want to buy.
20230710_135713 20230710_135719
2 user uploaded images
Emily
Emily from SWISCO
Jul 11, 2023 9:09 am
SWISCO
EXPERT

Thanks for the photos. We don't sell a match for this part, unfortunately. Your best bet may be to contact the original manufacturer of the window if they're still around. I am very sorry for the inconvenience.
