Spring loaded top?

A quick learner from warren michigan says:
June 25, 2021
I need this to go to the corner block. Can you please tell me which
A quick learner from warren michigan says:
June 25, 2021
What pivot pin this is? Thanks in advance
Thumbnail of the uploaded file named B89DF441-083A-4A97-9F75-3C8E6B573DDC.jpeg
Thumbnail of the uploaded file named B9FB0E46-FC0C-4D3D-B5F7-78D78DB2478B.jpeg
Thumbnail of the uploaded file named 0894BF99-40A7-4C06-AE48-2E96D8C8B53A.jpeg
Profile picture of Emily
Emily from SWISCO responded:
June 29, 2021

Hi there!

There are actually quite a few pins compatible with the 23-409. We'd be happy to help, but we'll need to see your pin removed from the corner block. Can you also write out the diameter of the pins, as well as the diameter of any caps atop the pins?

Thank you!
A quick learner from warren michigan says:
July 2, 2021

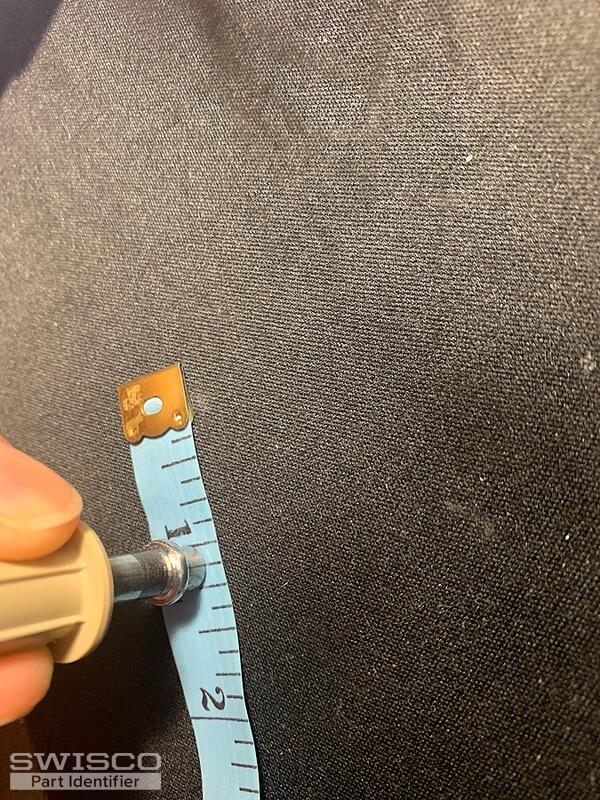

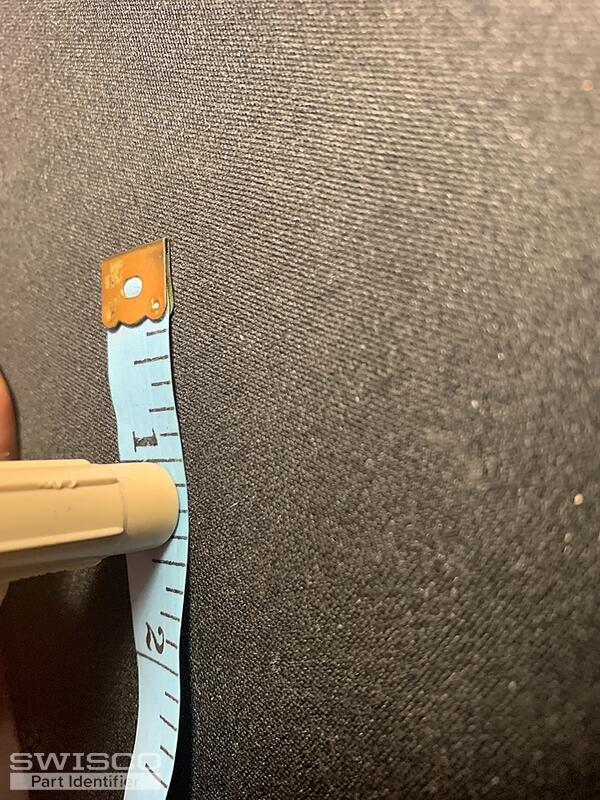

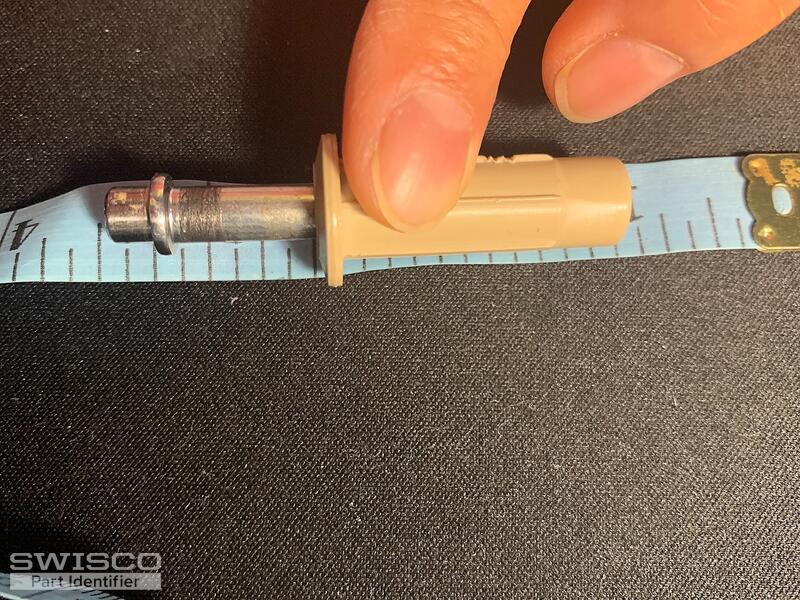

The pin's diameter is 1/4", the length of the cap and pin is 2-1/4" and the diameter of the cap is 7/16"

Thanks!
Thumbnail of the uploaded file named ED6254DF-0427-4CB3-9042-B9D2C85B89E2.jpeg
Thumbnail of the uploaded file named 48680610-0EAA-4024-943B-CB86E8B903B3.jpeg
Thumbnail of the uploaded file named FFE329F1-B863-4A9C-914F-25EE22143832.jpeg
Profile picture of Tom
Tom from SWISCO responded:
July 6, 2021

Thanks for getting back to us. The best match we have for this pivot is our 23-118, but our dimensions differ from yours slightly. Look over our photo and dimensions and see if you think you could use this to repair your door.

Dimensions for 23-118
Dimensions for 23-118
Spring-Loaded Top Pivot Pin
Spring-Loaded Top Pivot Pin
23-118
$1.25
Corner Connector
Corner Connector
23-409
$1.45
Bi-fold Door Repairs
Bi-fold Door Repairs
GUIDE
READ >
