Home Owner from Apex, NC

Oct 21, 2023 7:03 pm

Think I just need the plastic piece connecting the spring to the window.

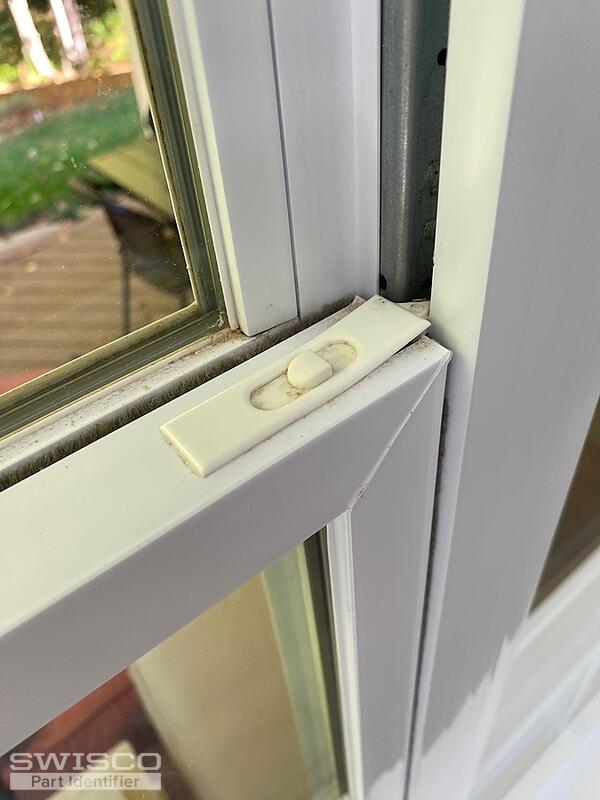

Also need the top of the window locking the window to the frame.
I don't know the manufacturer.
Can you help with the right parts?
Thanks
Ron

4 user uploaded images

4 Replies

Bob from SWISCO

Oct 21, 2023 10:25 pm

Hey Ron. The T-Lock Shoe looks like our 15-195B 1-1/4" Open Cam shoe. Please compare. For the tilt latch, I am confident we can help, but if you could remove one and show it to us from a few different angles, that will help narrow down your options. Many thanks.

Home Owner from Apex, NC

Oct 22, 2023 12:12 pm

Thanks Bob, think you nailed it on the T-Lock.

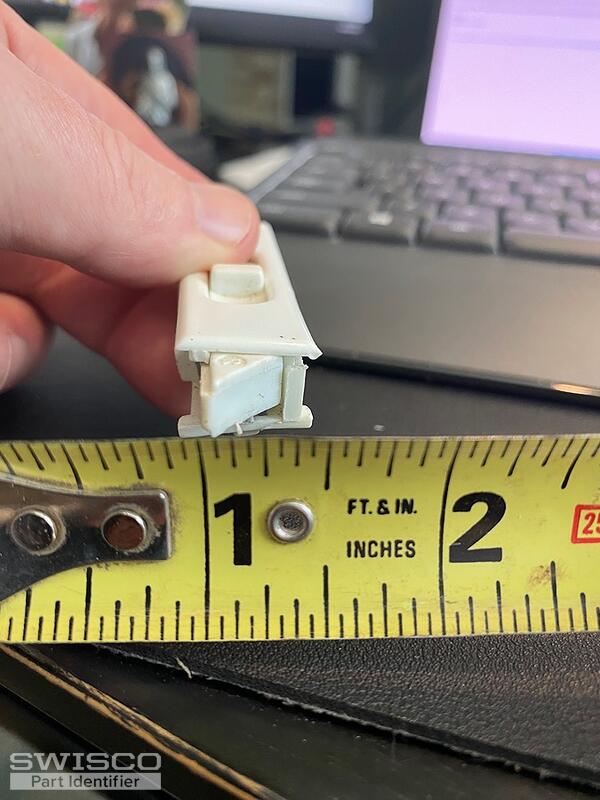

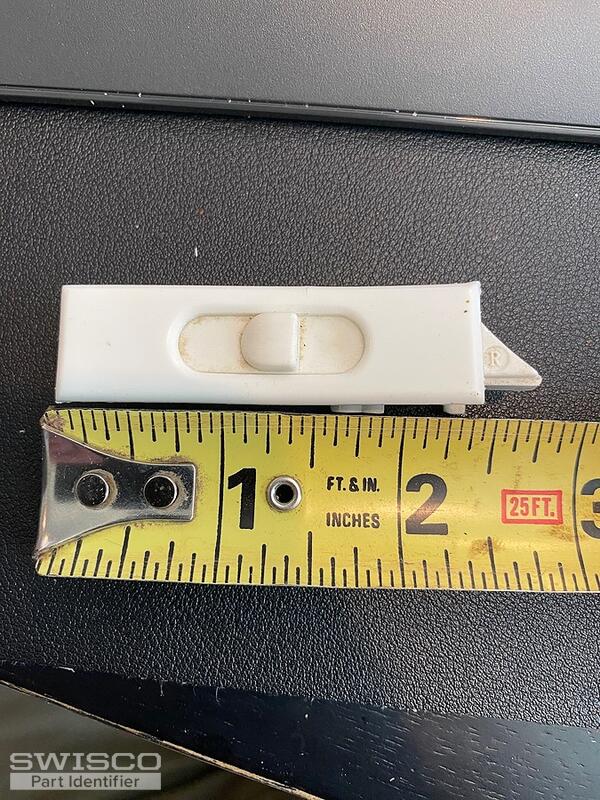

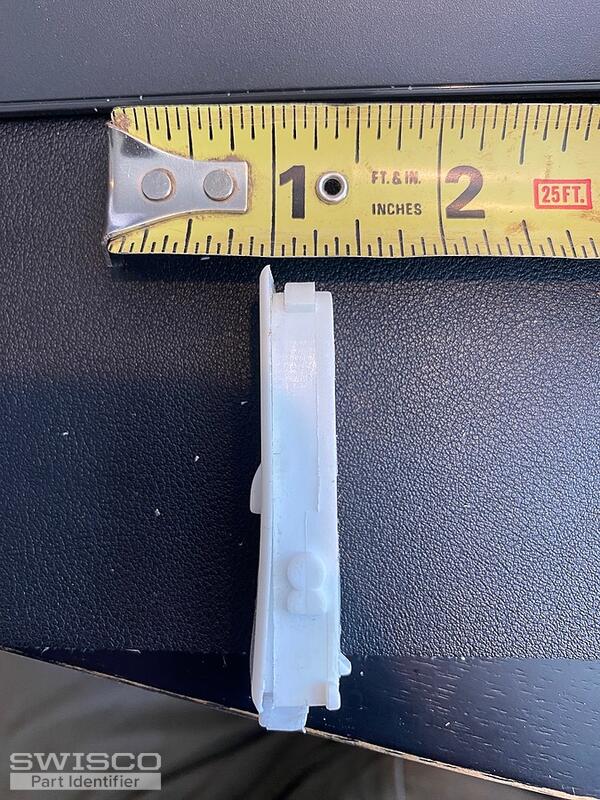

I've attached pics of the tilt latch.
They look the same but my original looks to be smaller.

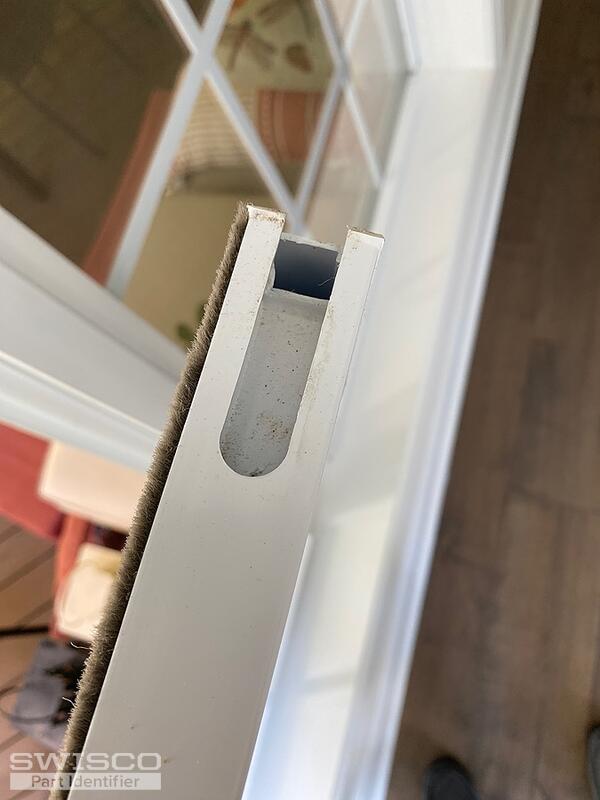

Top is 2 3/8 as is the slot in the window it goes into.
Height is 1/2
Latch is 6/16 (tape measure so it might be off a little), spring loaded.
