Stainless Steel Rollers

Home Owner from kapaa, HI 96746

Jan 9, 2024 7:08 pm

Hi folks,

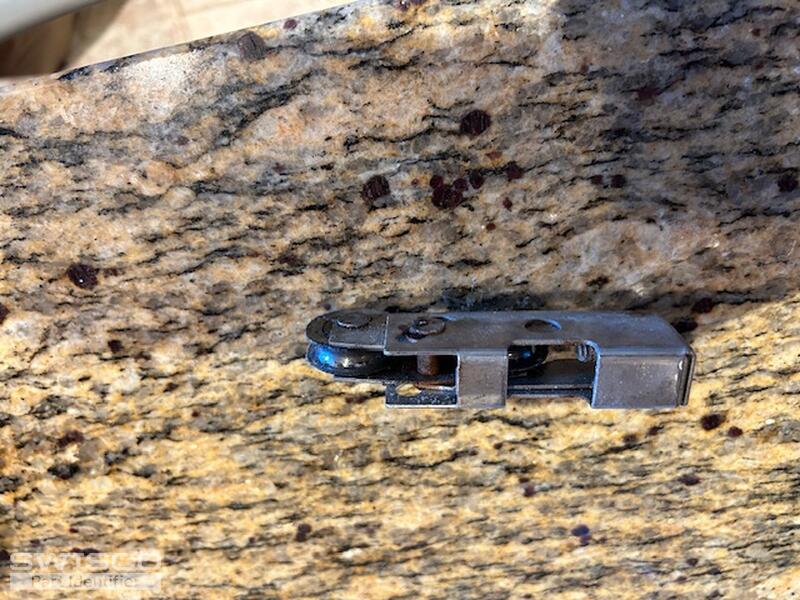

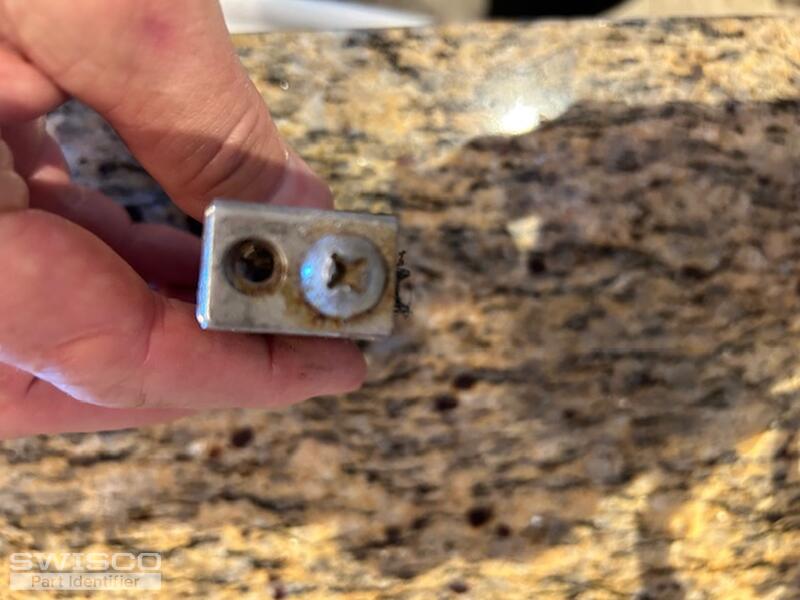

I've purchased from you in the past and now I'm looking for Stainless Steel Rollers for my sliding glass door. Can you help? I've included pictures.

Thank you,

Bret

5 user uploaded images

6 Replies

Casey from SWISCO

Jan 10, 2024 10:59 am

Hello,

We'd be happy to help but we'll need you to write out the exact dimensions of your roller assembly to narrow down your options. The housing height, width, and wheel diameter are especially important. We'll relate a few videos on this page for you to review in the meantime. Thank you!

Home Owner from kapaa, HI 96746

Jan 11, 2024 6:58 pm

Hi Casey,

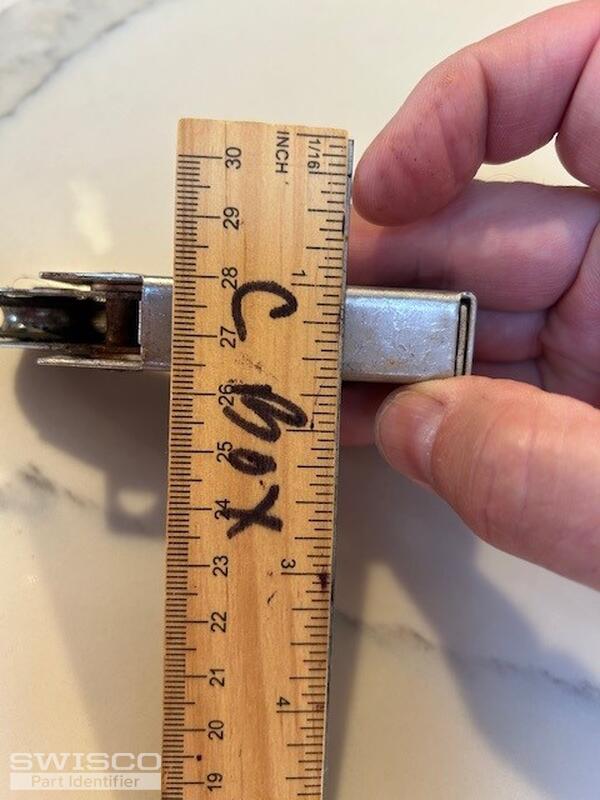

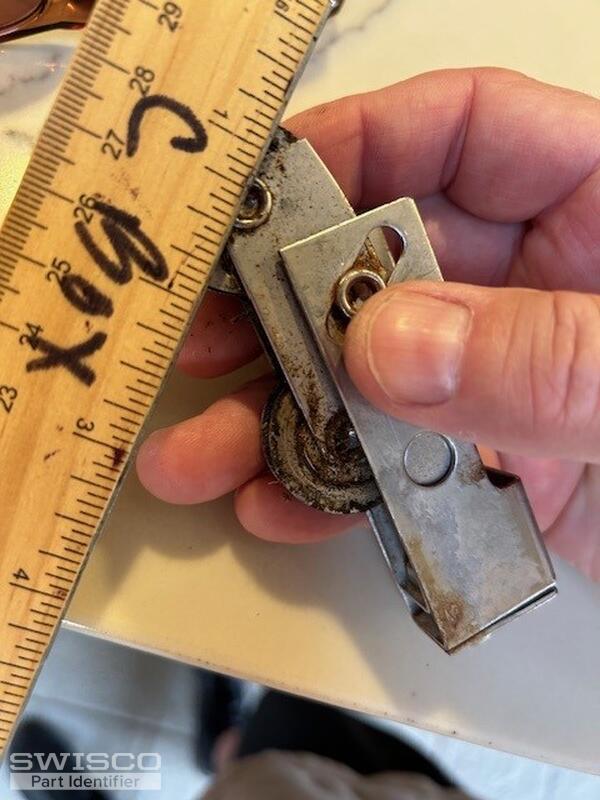

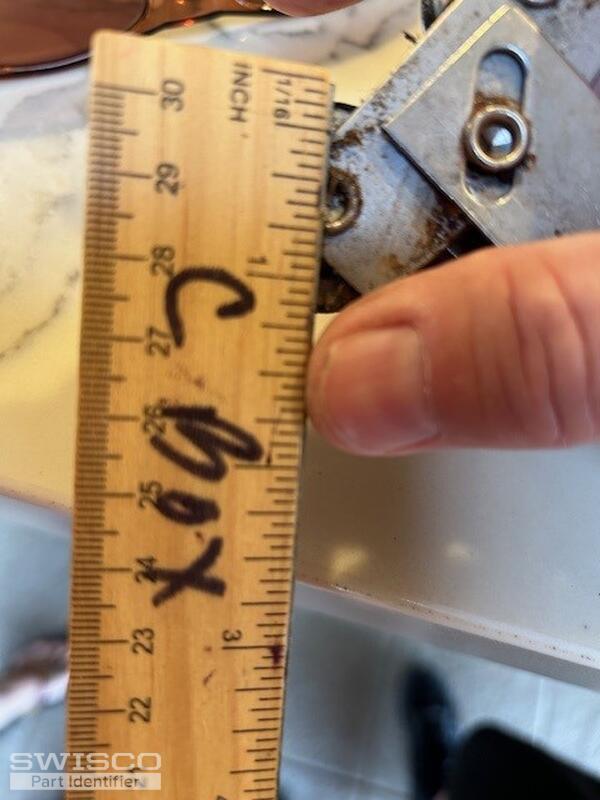

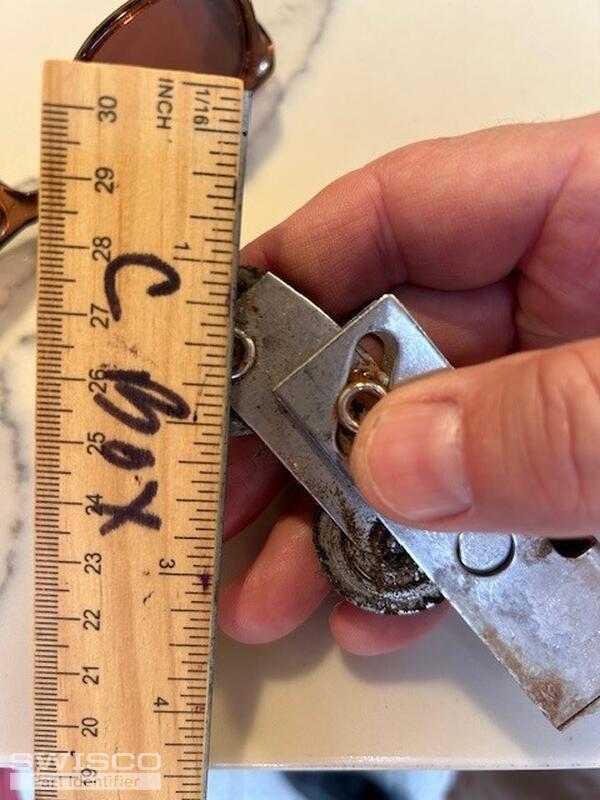

Looks like the
Housing Height = 1.0"
Housing Width = 5/8"
Wheel Diameter = 1 1/8" (approx)

See pictures. Thank you,

Bret

4 user uploaded images

Casey from SWISCO

Jan 12, 2024 8:59 am

Thanks for getting back to us. Your roller resembles the 81-158 but the housing width is 11/16" rather than 5/8". I would recommend double-checking to see if it could be a match. Also, note that the wheels measure 1-1/4" in diameter. This may not be a problem since the height is adjustable but if you run into any problems, you could swap them out with the 81-223 wheel and 81-310 axle kit.

Alternate image for 81-158

If your original housing is still in good shape, you may also be able to just swap out the original wheels. Review the specifications to determine the best option for your repair. Thank you!

Home Owner from kapaa, HI 96746

Jan 13, 2024 2:02 pm

Awesome! You guys are amazing. Really appreciate your assistance. I have used you at least 3 times and you are absolute professionals. Keep up the great work. I've got other projects that I'll definitely use you folks for.

Casey from SWISCO

Jan 16, 2024 8:46 am

We're happy to help and appreciate your kind words! We'll be here to help you through any future repair projects.
