Stamp says 32 4 HP Caldwell

Quick Learner from California
Aug 17, 2024 11:54 am
It measures 34" top to bottom
3 Replies
Casey
Casey from SWISCO
Aug 20, 2024 4:09 pm
SWISCO
EXPERT

Hello,

We'd be happy to help but we would need to see photos of your balance removed from the window to compare to our inventory. Please make sure to include both end fittings, the pulley clip, as well as the connecting point between the spring and pulley inside the channel. Thank you!

Quick Learner from California
Aug 20, 2024 8:10 pm

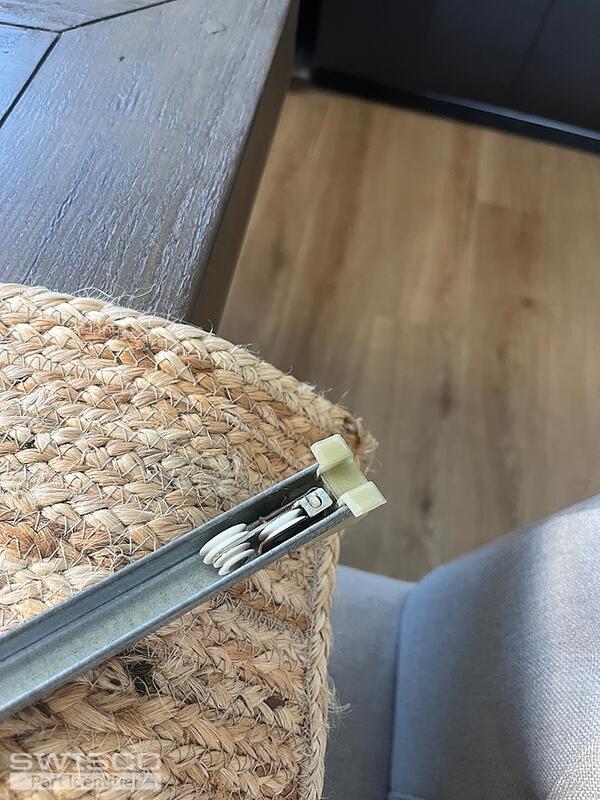

Here are the pictures you requested
IMG_1836 IMG_1837 IMG_1838 IMG_1839
4 user uploaded images
Casey
Casey from SWISCO
Aug 21, 2024 8:36 am
SWISCO
EXPERT

Thanks for getting back to us. With this combination of attachments, you could have either the S380-33 or S385-33 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 3240 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
