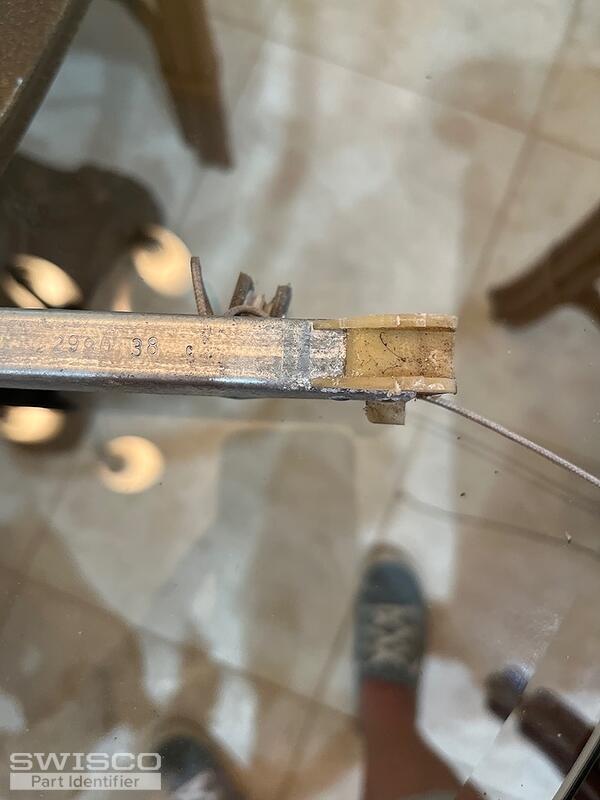

Stamped 2990 38

Quick Learner from Port St. Lucie

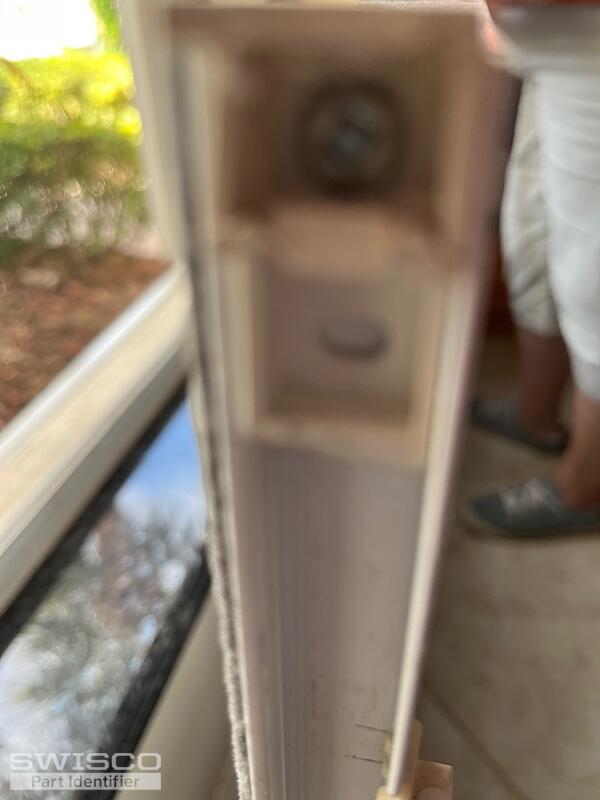

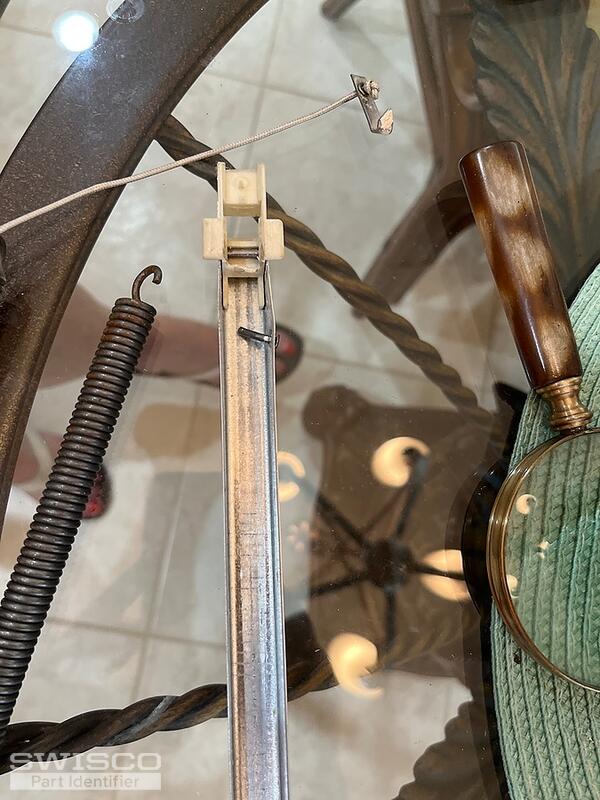

30 inches long 1/2 wide channel
5 user uploaded images
3 Replies
Quick Learner from Port St. Lucie

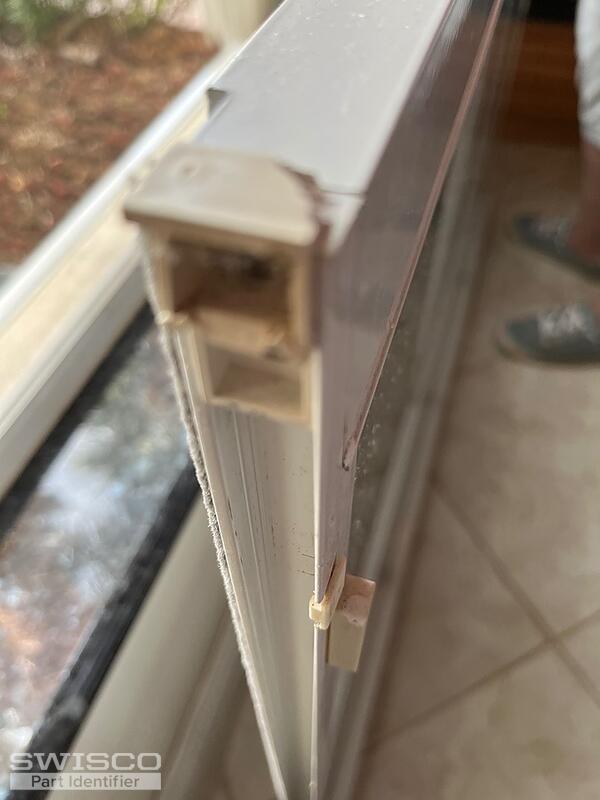

Also need the top caps located on the window sash see pictures attached
2 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! This window balance reminds me of either the S378-30 with a 7/8" shoe or the S380-30 with a 1" shoe. You'll need to confirm the shoe's depth to determine which series is the correct replacement.

I'm not able to cross-reference the stamp on your balance with ours, unfortunately. That said, you'll need to obtain the exact weight of the sash to select the correct stamp.

There is a list of stamps below the product description that lists the weight ranges each stamp option can support.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

The top sash guide appears to be a match for the 18-166 Top Sash Guide. Carefully compare the dimensions to confirm this is the right fit.

Detail of 18-166
Detail of 18-166

Profile view of 18-166
Profile view of 18-166
