Hello
I have +/- 20 year old Stanley mirrored bi pass doors with hardware/track needs.

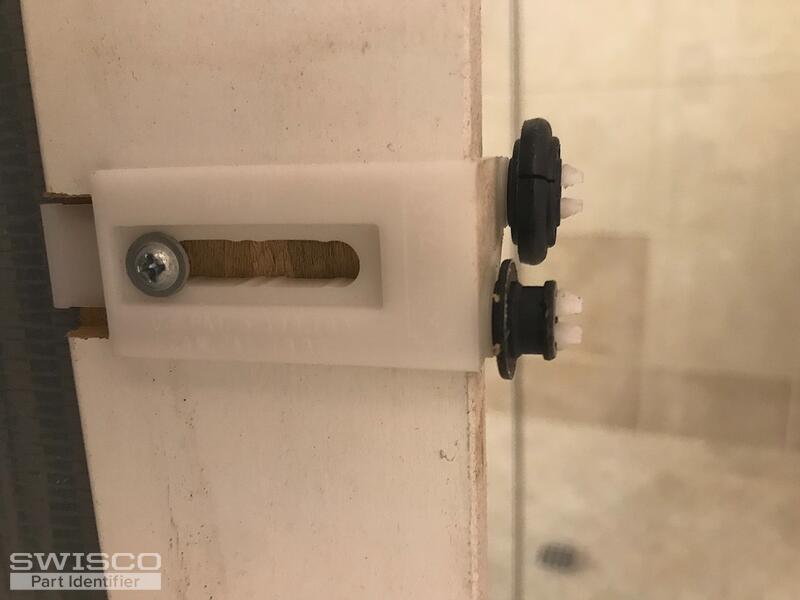

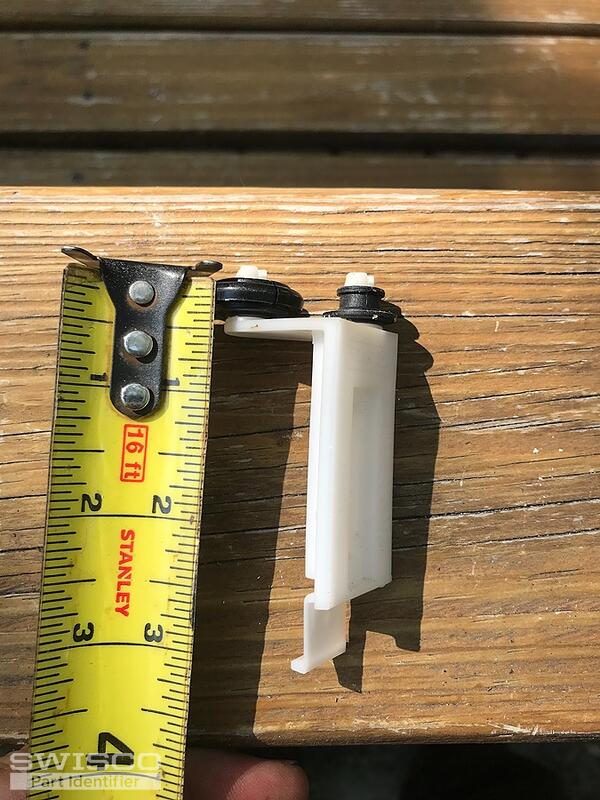

Included are photos of upper/lower hardware and track.
Are these parts available through your company?
Stanley Mirror Door Replacement Parts
Quick Learner
Oct 26, 2023 12:40 pm
4 user uploaded images
3 Replies
Quick Learner
Oct 26, 2023 1:22 pm
Hello
This is a photo of top roller assembly
(Stanley 17-4116).
The wheels snap onto the main part and are what have failed.
The wheels spin on a core insert and have a 7/8" diameter
5/16" thickness
1/4" center hole
If these wheels are available individually I would need 16 of them.

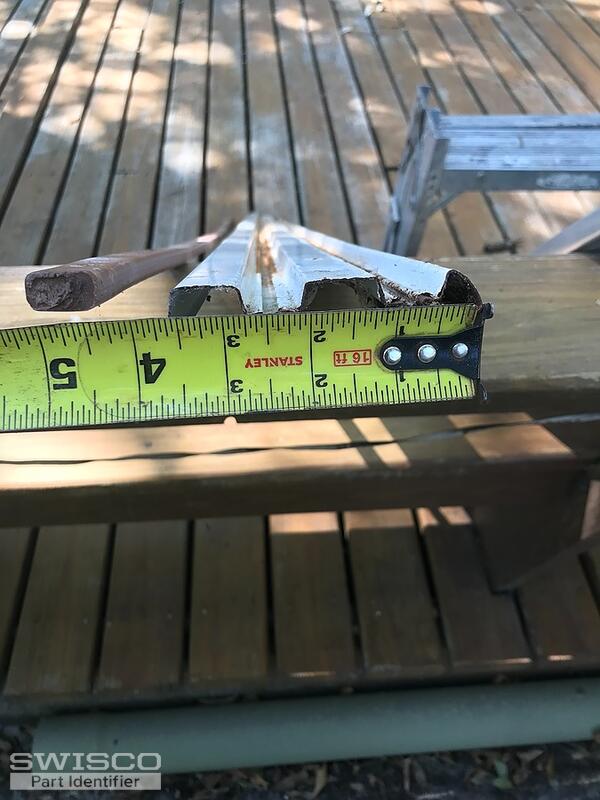

The bottom tracks are
48" and 72"
This is a photo of top roller assembly
(Stanley 17-4116).
The wheels snap onto the main part and are what have failed.
The wheels spin on a core insert and have a 7/8" diameter
5/16" thickness
1/4" center hole
If these wheels are available individually I would need 16 of them.
The bottom tracks are
48" and 72"
Casey from SWISCO
Oct 30, 2023 11:53 am
Hello,
Stanley has been out of the closet door business for some time and your original hardware is no longer available. We recommend the 23-222C top guide and 23-041 bottom rollers are recommended to replace the parts shown in your photos. We've also related the compatible track on this page for you to review. Take a look and thanks for posting!
Dimensions for 23-222C
Dimensions for 23-041
Alternate view of 23-041
Alternate view of 23-041
Cross section of wheel
