Stanley bottom Rollers needed

Quick Learner from Coolidge, AZ
Apr 21, 2024 9:49 pm
Swisco

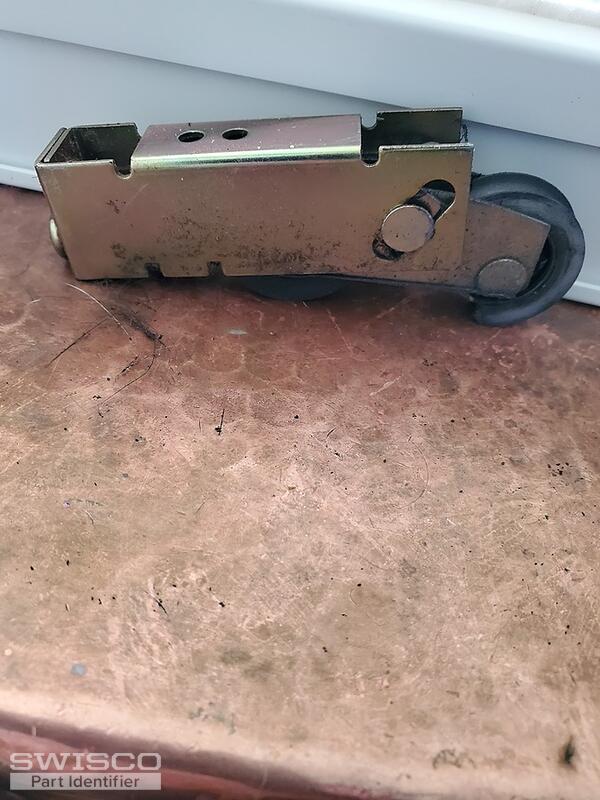

Needed the bottom rollers for a Stanley Double Glass sliding patio door. 60 x 80" Low E,
20240413_104844 20240413_104842 20240413_104831 20240413_104825
4 user uploaded images
3 Replies
Casey
Casey from SWISCO
Apr 23, 2024 10:42 am
SWISCO
EXPERT

Hello,

We'd be happy to look into this for you but we'll need a bit more information to determine if we carry a possible replacement for your rollers. To get started, please write out the exact housing height, width, and wheel diameter to help us narrow down your options. It would also help to see where the installation and adjustment screws install in your housing.  Thank you!

Quick Learner from Coolidge, AZ
Apr 23, 2024 12:23 pm
Casey
Dimensions for roller assy:

Body thickness is .678

Body OAL is 3.086 approx

2 screws on one end

1.108 approx from end to mounting screw on top

1.437 approx from end to second hole on top.

These holes are 3/16

5/16 roller thickness

Rollers are 1 25 diameter

1" Body height

Dave Sr.
Dave Sr. from SWISCO
Apr 24, 2024 11:44 am
SWISCO
EXPERT

Hello,

Unfortunately, we do not carry an exact match for your roller but we do offer two options that are similar to yours. Take a look at the 81-138 with the 1-1/8" diameter wheel and 3/4" thick housing, as well as the 81-157 with a 1-1/4" diameter wheel and 11/16" thick housing.

Alternate image for 81-138
Alternate image for 81-138

Alternate image for 81-157
Alternate image for 81-157

If neither roller will work for your door, take a look at the 81-266 roller and axle kit. If your original housing is in good working order, you may be able to get away with just replacing the wheels. Look over the suggested parts and videos on the website to assist you.
