Starting Fresh

Quick Learner from Leland, NC
Jun 25, 2023 5:04 pm
I am looking for parts for this Pella screen door. I believe the 83-128 handle/latch kit will work with the 85-023 latch strike. Is that correct or are there other alternatives?
Thanks very much!

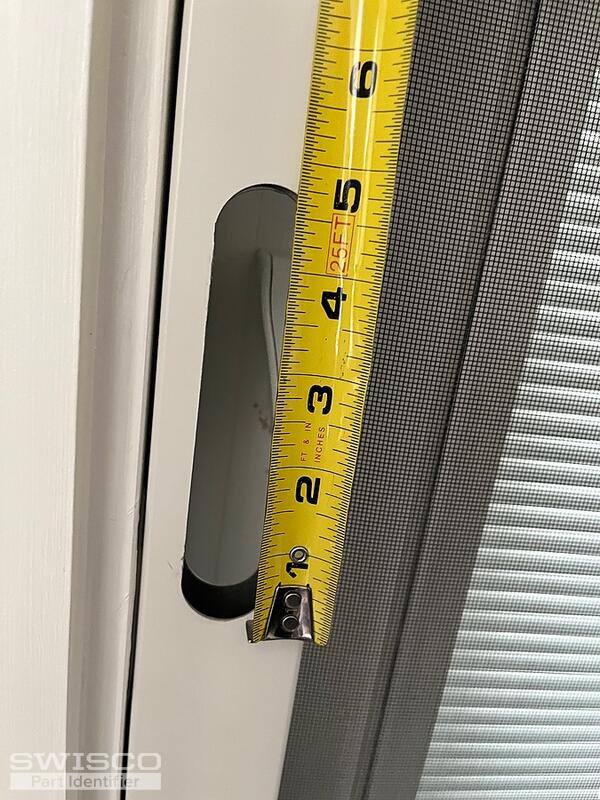

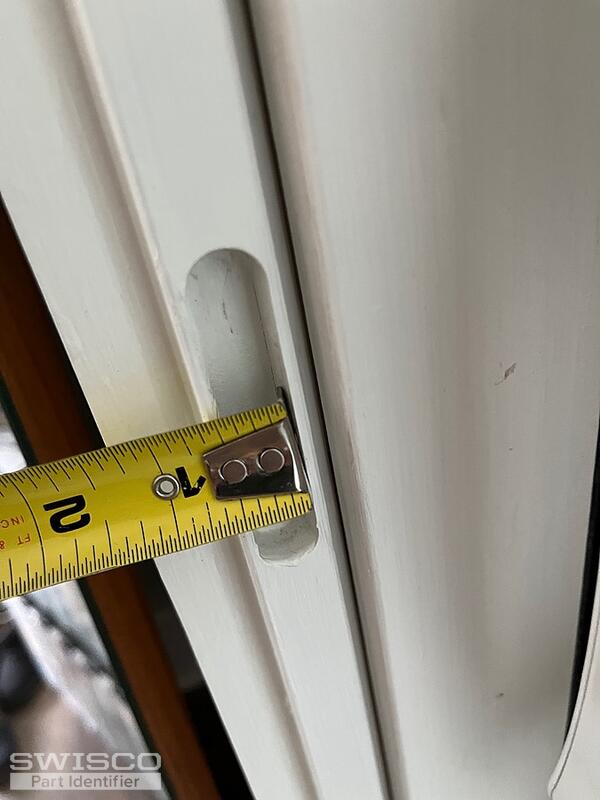

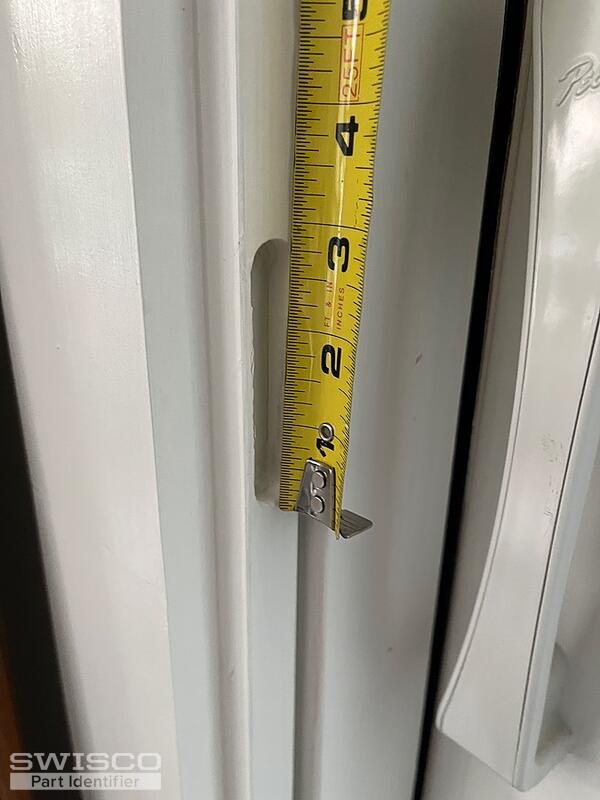

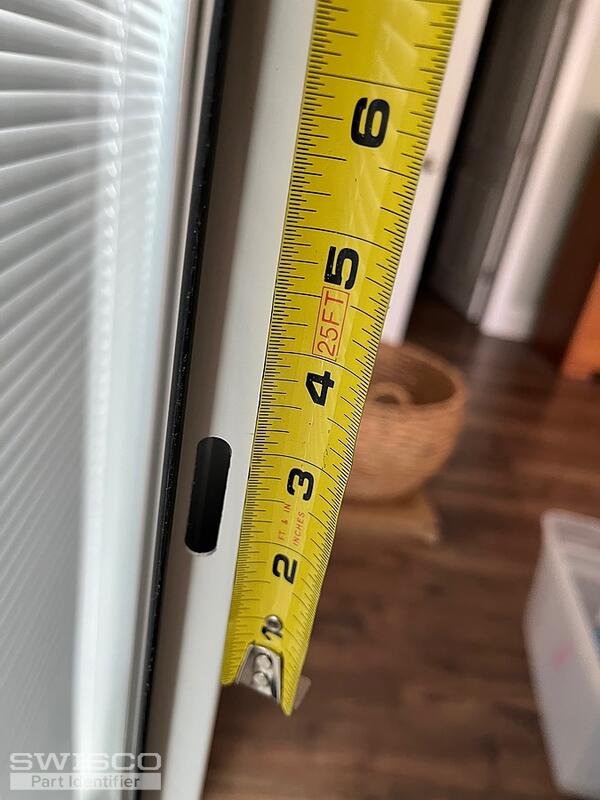

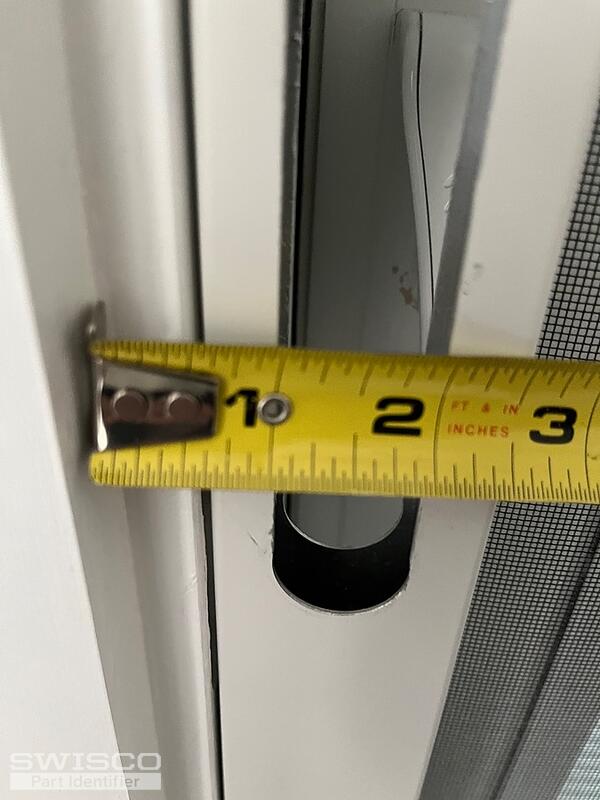

IMG_6073 IMG_6074 IMG_6075 IMG_6076 IMG_6077
5 user uploaded images
1 Replies
+ Add a Comment
Bob
Bob from SWISCO
Jun 25, 2023 6:33 pm
SWISCO
EXPERT

Thanks for posting. The 85-023 is indeed compatible with the 83-128. Without seeing your original hardware I cannot guarantee this is the setup you need, but the dimensions of the gap for a handle set do appear close to the 83-128 dimensions. Review the diagrams below and let me know what you think.

Dimensions for 83-128
Dimensions for 83-128

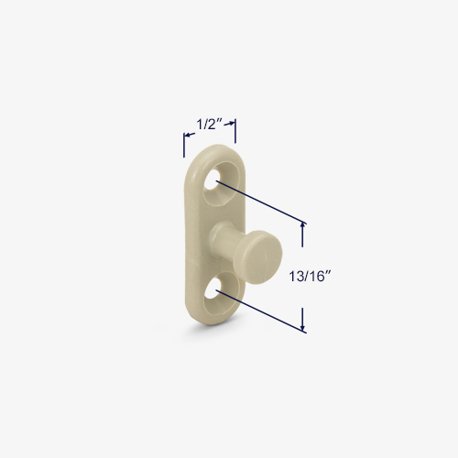

Dimensions for 85-023
Dimensions for 85-023

+ Add a Comment
Products and resources found in this discussion
Pella Sliding and Hinged Screen Door Latch Strike
Pella Sliding and Hinged Screen Door Latch Strike
85-023
$18.10
Pella ProLine Screen Latch and Handle
Pella ProLine Screen Latch and Handle
83-128
$22.70
Pella Screen Door Strike Kit
Pella Screen Door Strike Kit
85-016
$54.30
