Steel bifold door pins, springs, tray hardware

Home Owner from 19002

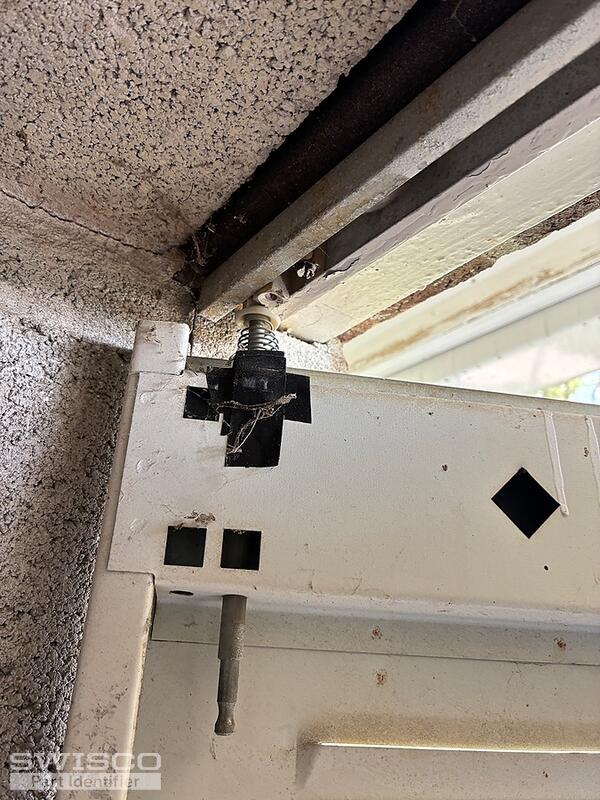

Customer Service, one (1) pin on the lower section failed on this set of doors. It is time to replace a door pins, springs, elastomers and tray/guide parts.

could you kindly provide the Part Numbers to replace all of the hardware? The steel doors remain in good condition. Thank you.

dwight

4 user uploaded images
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

This appears to be the old Slimfold bi-fold door. You will need one 21-001A adjusting pin with a 21-154 rod clamp (sold separately). Once you adjust the door, you will tighten on the rod clamp to hold its place. You will also need three 21-007 spring loaded guide pins; one for the top pivot and two for the top and bottom guide.
