Storm Latch for 1980's Tilt Window

A contractor from Maryland says:
October 26, 2016
Thus far, I've been able to identify everything needed for my project using your *excellent* website-- but this storm latch assembly has me at a loss.

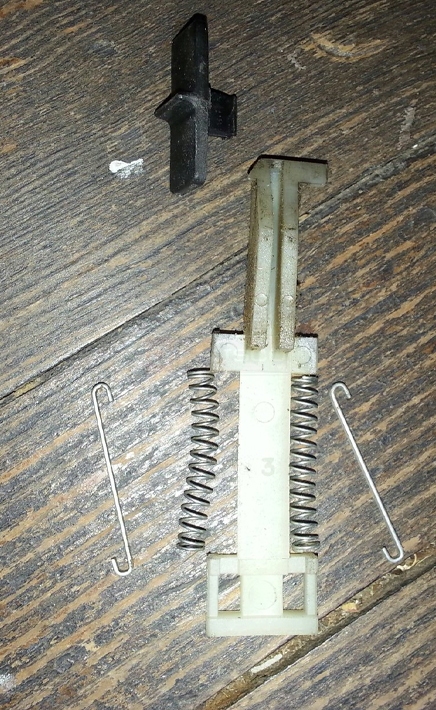

User submitted image of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
October 31, 2016
Thanks for posting. Please see our 26-002 black sash release lever, 26-014 lower sash slide latch, 26-016 spring and 26-017 spring retainer. Please note that the only difference in regards to the upper sash is the slide latch, which would be our 26-015. It is a little shorter.
Black Sash Release Lever
Black Sash Release Lever
26-002
$0.42
Lower Sash Slide Latch
Lower Sash Slide Latch
26-014
$0.97
3/16" x 1-1/4" Spring
3/16" x 1-1/4" Spring
26-016
$0.31
1-1/4" Spring Retainer
1-1/4" Spring Retainer
26-017
$0.41
