Storm door Window Corner tilt key

A quick learner from Minnesota says:
June 7, 2020

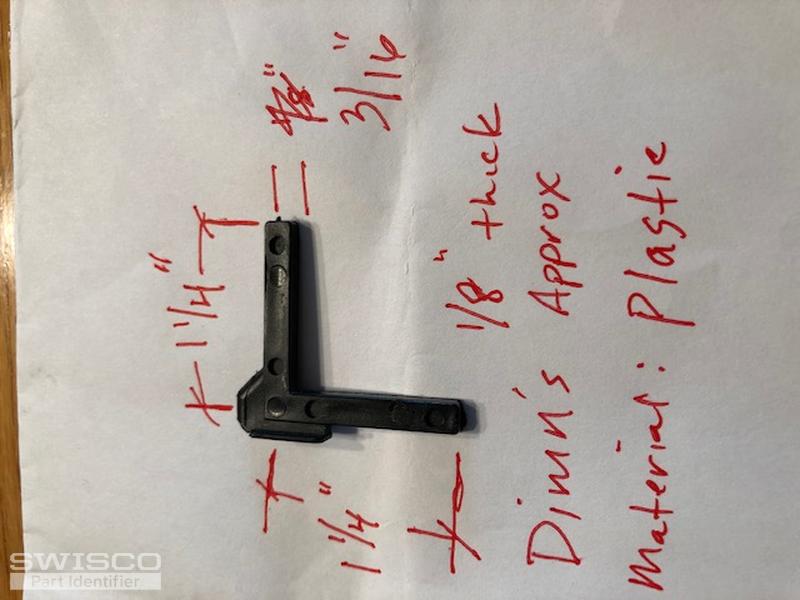

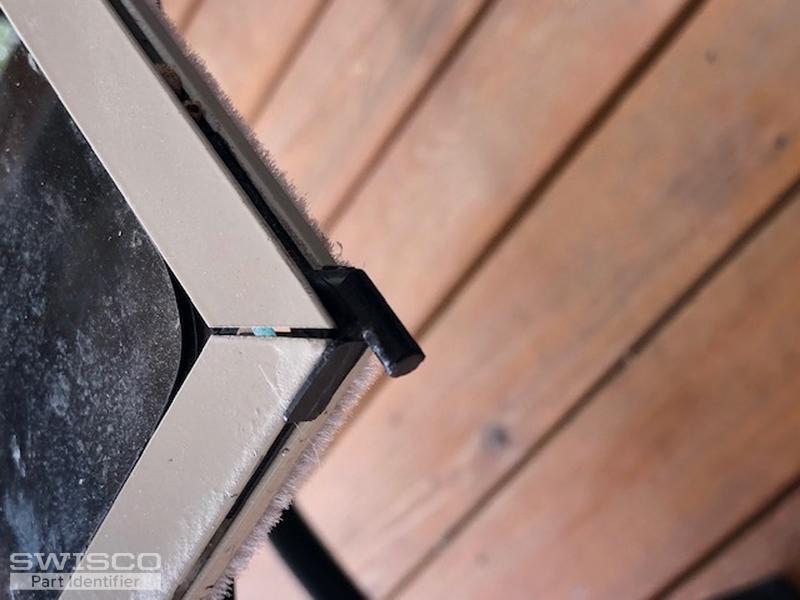

I have a storm door operating panel with a broken tilt corner key. Door manufacturer unk. I bought 95-015 and those are too thick, and zinc or Alum, not plastic.I have reviewed a few other keys but haven't found a direct match. Please help identify the correct one.

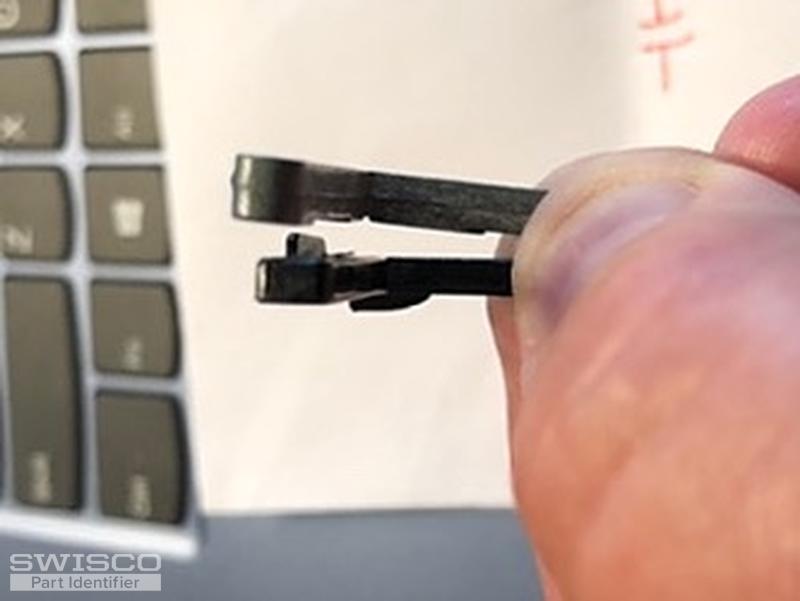

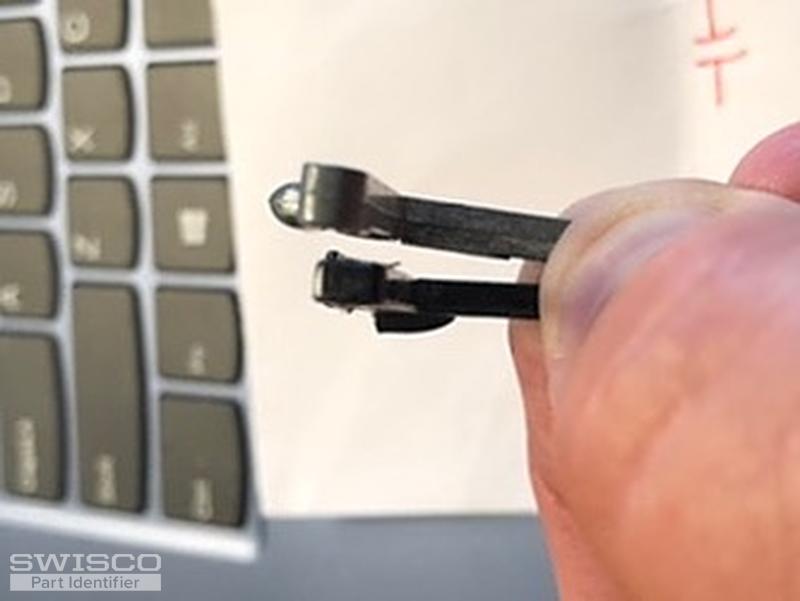

Addl photo of end. Part on right is 95-015

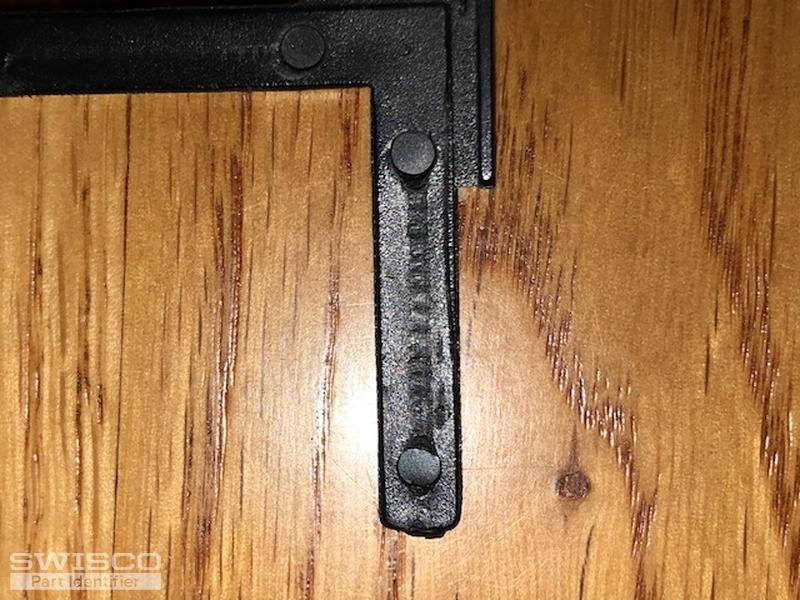

Corners also appear to be handed. Thanks.

Thumbnail of the uploaded file named image2.jpeg
Thumbnail of the uploaded file named image1.jpeg
Thumbnail of the uploaded file named image0.jpeg
Thumbnail of the uploaded file named 6C619006-20A3-449A-AB70-9DB344E6C058.jpeg
Thumbnail of the uploaded file named A3A4C512-0B26-4F50-9255-5496C665D6BD.jpeg
Profile picture of Paul
Paul from SWISCO responded:
June 11, 2020

These being offset corner keys that are /16" high and 1/8" thick, we came up with two possible replacements. The 95-006 and 95-007 are self locking corner keys, so you don't have to pin the corners to the frame. The second options are the 95-008 and 95-009 were you would have to pin them in the frame, like yours. They are all die cast metal corner keys. Look them over and see if you could use either pair.

Window Corner, LH
Window Corner, LH
95-006
$0.78
Window Corner, RH
Window Corner, RH
95-007
$0.78
Window Corner, LH
Window Corner, LH
95-008
$0.60
Window Corner, RH
Window Corner, RH
95-009
$0.60
How to replace stamped window corner keys.
How to replace stamped window corner keys.
