Storm door handle

Start a new Discussion

Quick Learner from Medford, Oregon

Sep 30, 2025 11:04 am

Hi, I need to replace this storm door handle

3 user uploaded images

8 Replies

Home Owner from Oregon

Oct 2, 2025 10:51 am

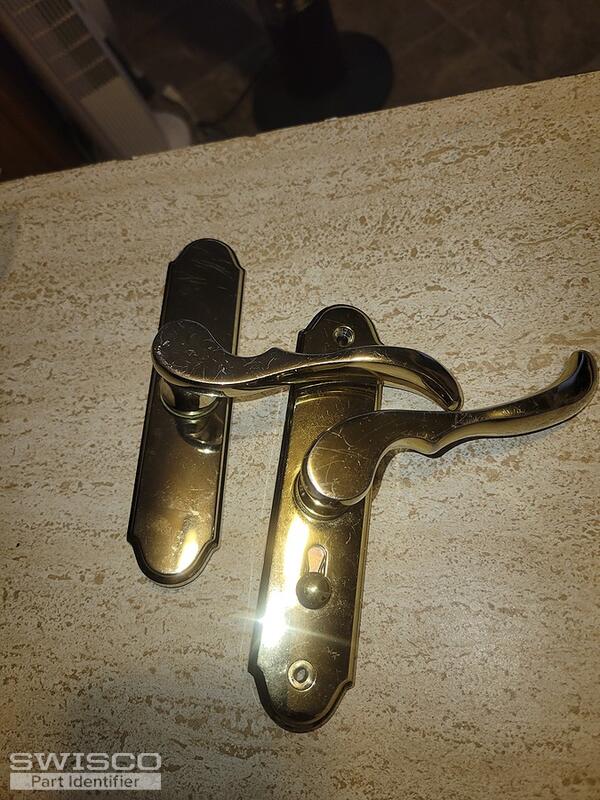

Hi, I need to replace this handle on my storm door. I think I've located the handle I need, but I am unable to remove the part that fits in the door, the lock cylinder, I think.

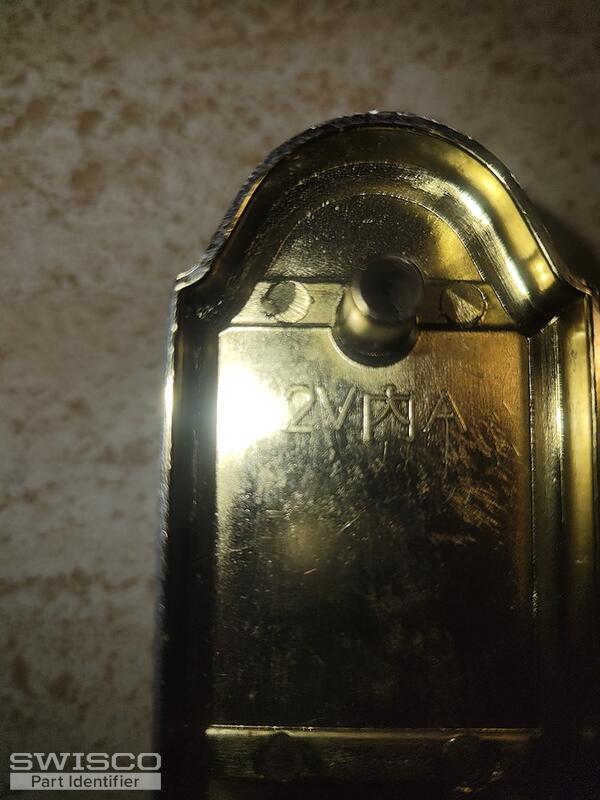

The plate is 6"x1 3/8" , the screw holes are 4 3/4" on center. The lock cylinder is 1 3/4" long. The plate on the side where the cylinder goes in is just over 1 1/2" wide and just over 2 1/2" in height.

5 user uploaded images

Casey from SWISCO

Oct 2, 2025 11:05 am

Hello,

I'm not sure if we carry an exact match for your LArson lockset, but the 40-168 and 40-188 are similar. Review the specifications of both options to see if either could work for your repair. Thanks for posting!

Home Owner from Oregon

Oct 2, 2025 11:28 am

That's what I was thinking for the part. Can you help me on removing the cylinder?

Home Owner from Oregon

Oct 2, 2025 11:36 am

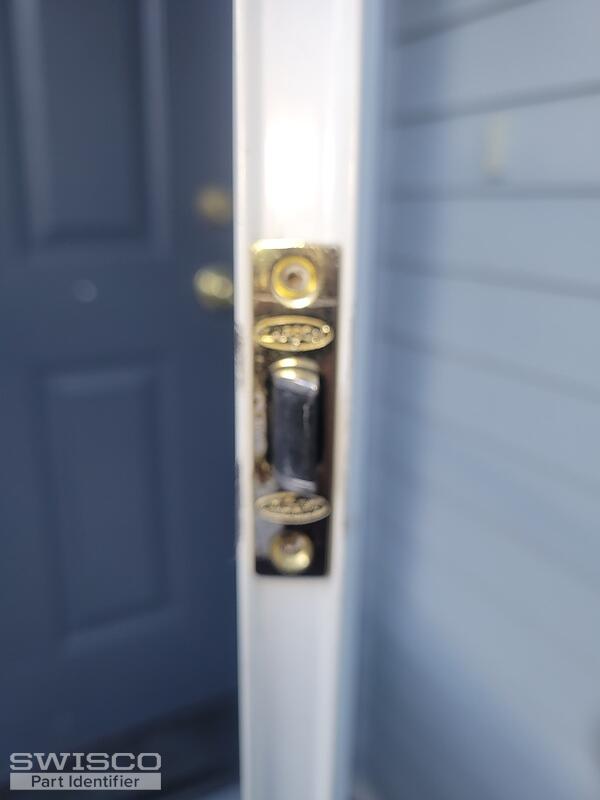

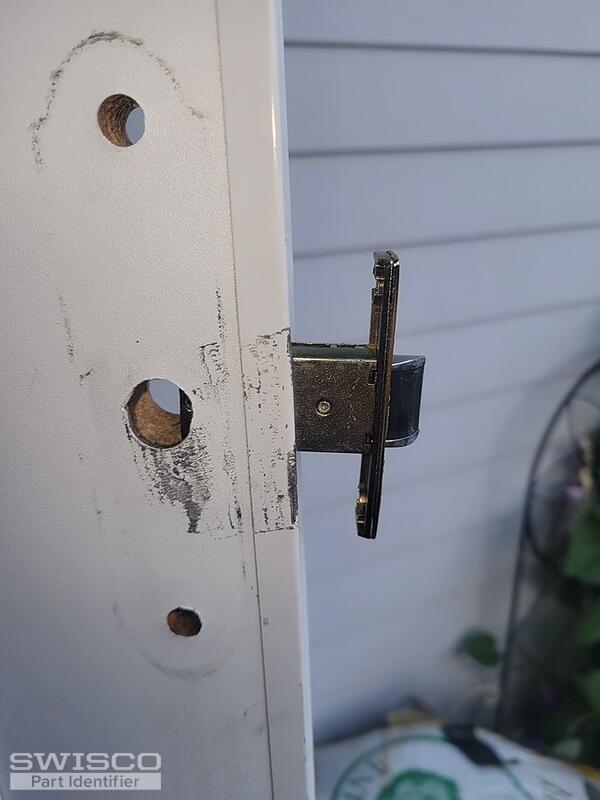

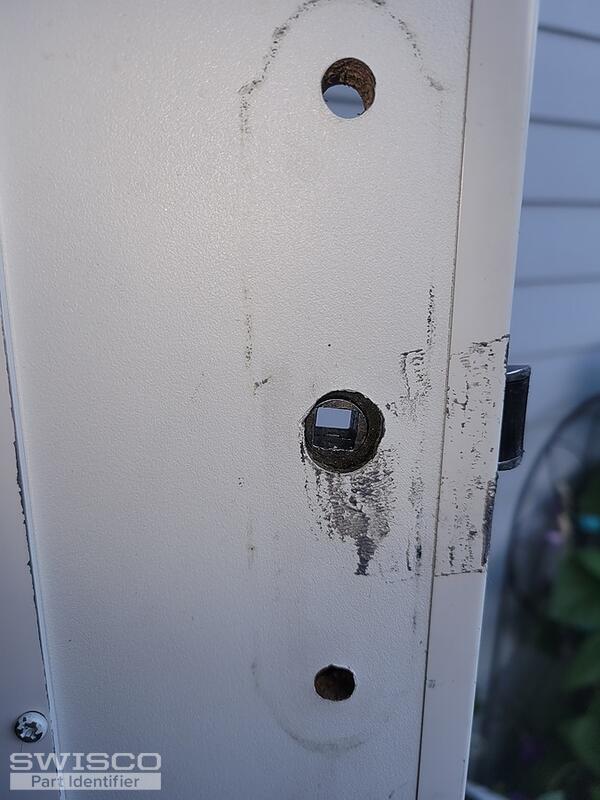

I removed the screws on the face plate, but the cylinder stops from being removed right at the end of pulling it out.

Dave Sr. from SWISCO

Oct 3, 2025 9:02 am

The mortise latch should just pull out from the edge of the door. If not, something could be blocking it. I'd suggest reinstalling the lever handle back into the latch and turning it a few times. Maybe that will stop the hang-up keeping you from removing it.

Home Owner from Oregon

Oct 3, 2025 9:18 am

Thank you. I'll try that. Have a great day!

Dave Sr. from SWISCO

Oct 3, 2025 11:30 am

Great! We'll be here if you need anything else.
