Storm door latch

A quick learner from Denver, CO says:

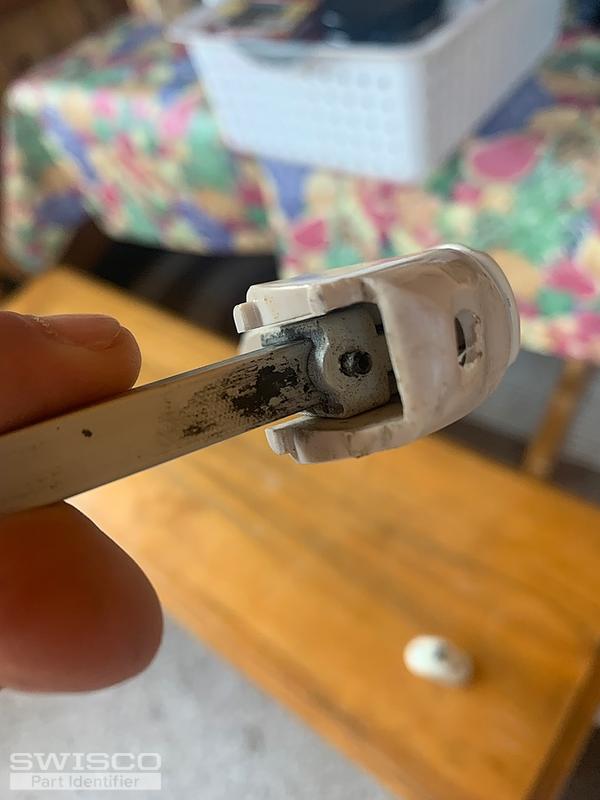

Looking for an inside latch for a storm door with a 5/16" spindle. Something similar to part 40-150. Can't get the old spindle removed from the original set so need a spindle too.
Thumbnail of the uploaded file named 094BEFA7-05A6-4D9A-9C57-C8655EFE982A.jpeg
Thumbnail of the uploaded file named 537F5C30-95D6-4D6F-92D6-FE4A3D4D4258.jpeg
Thumbnail of the uploaded file named A0DF6B36-C415-4D3D-8DAA-C010F1449AF4.jpeg
Thumbnail of the uploaded file named 979127DD-FAA2-4D4F-9477-12D3A851490D.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

If you're just looking to replace the inside latch, I agree that the 40-150 would be the way to go as long as the dimensions match up. The compatible spindle would be our 40-187L if you need that as well. Take a look at our product pages with dimensions and helpful videos to confirm that these parts will work for you. Thanks for posting!

A quick learner from Denver, CO says:
40-187L looks like it is 3/16". Is there a 5/16" option? As the smaller spindle won't work with the outside knob.
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

I'm afraid that we do not carry a spindle in that size. That said, what I've done in the past was to purchase a square rod at the proper thickness and cut it to the length I needed for the storm door.
