Storm window corners assembly.

A handy person from Greenville, SC says:
February 18, 2021

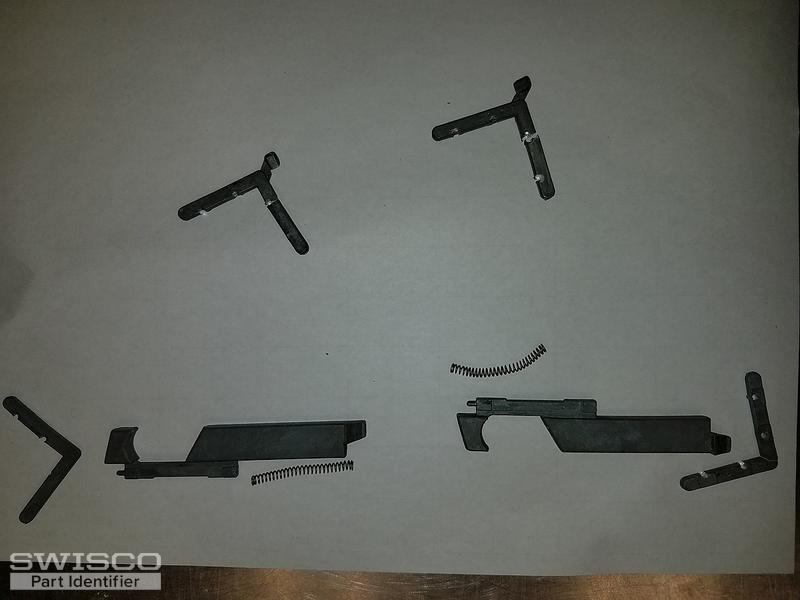

I regret not to have any photos of the parts installed. They are each a corner of one storm window frame. It became necessary to replace because the glass was broken. I am having a difficult time finding replacement parts.
Thumbnail of the uploaded file named 20210218_141900.jpg
Thumbnail of the uploaded file named 20210218_141818.jpg
Thumbnail of the uploaded file named 20210218_141916.jpg
Thumbnail of the uploaded file named 20210218_141809.jpg
Profile picture of Casey
Casey from SWISCO responded:
February 19, 2021

Hello,

If you could provide dimensions for your corners keys and slide latches like the dimensions shown for our screen and storm window hardware  we'd be happy to research your replacement options. Thank you!

A handy person from Greenville, SC says:
February 20, 2021

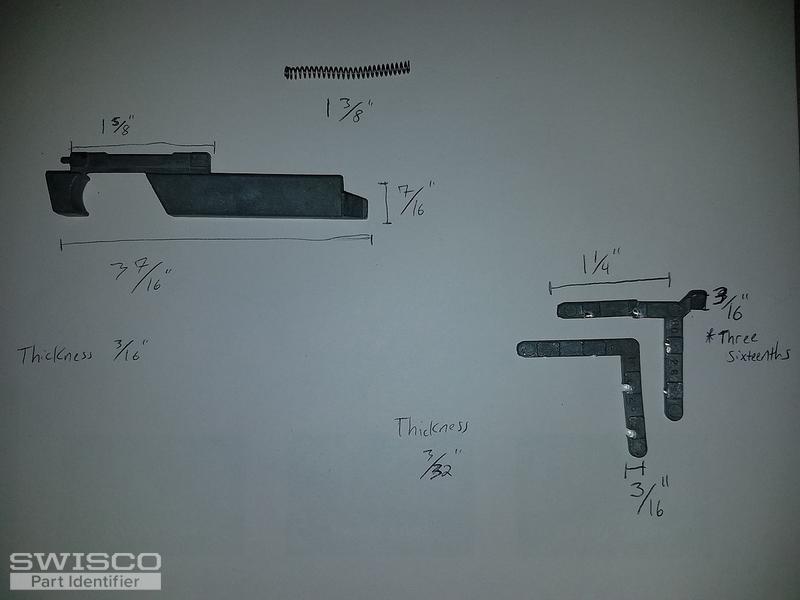

Here are the dimensions
Thumbnail of the uploaded file named 20210220_220054.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
February 23, 2021

Take a look at the parts that we've related for you. Unfortunately, we do not carry storm sash parts like the ones shown in your photos, and I'm not sure if they are still available due to storm windows become less popular over the years.

That being said, take a look at our 95-233 that we think should work for the lower corner. For the top tilts, I believe you could use the 95-008 and 95-009 . The top pins are not like yours and are also off-set, but I believe they might work for you. Take a look at both latches to see if either of these could work. Thanks for posting.

Latch Pair
Latch Pair
91-006
$4.25
Left Hand Latch
Left Hand Latch
91-026
$1.20
Right Hand Latch
Right Hand Latch
91-027
$1.20
Latch Spring, 9/64" x 2"
Latch Spring, 9/64" x 2"
91-102
$0.22
Window Corner, LH
Window Corner, LH
95-008
$0.60
Window Corner, RH
Window Corner, RH
95-009
$0.60
3/16" x 1/8" Corner
3/16" x 1/8" Corner
95-233
$1.52
