Storm window part

Home Owner from Virginia

Apr 12, 2017 1:25 pm

Dear SWISCO

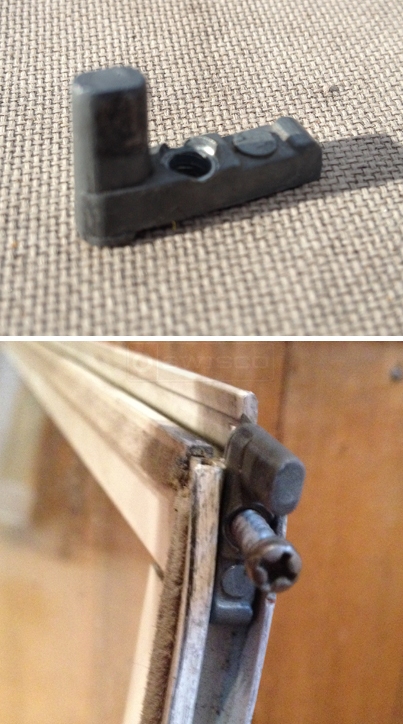

I need to replace a broken top tilt for a storm window panel manufactured by Season All. The photos show an unbroken part. (Note that the fixing screw is backed out in the photo of the part installed.) The part is probably made from pot metal and is 7/8" long. The center of the screw hole is 3/8" from the top. The top (hinge) is 1/2" wide.

I have been unable to find this part at local hardware stores. Can you help?

Many thanks

User submitted image of their window hardware.

6 Replies

Tom from SWISCO

Apr 17, 2017 12:16 pm

I'm afraid this is an old, discontinued part. Unfortunately, we do not have an exact replacement. We believe our 95-182 tilt pivot may possibly work as a substitute for you. Take a look and let us know your thoughts.

Home Owner from Virginia

Apr 17, 2017 4:40 pm

Dear Mike

Thanks for your response. The 95-182 Sears tilt pivot looks like it might work, but I still need to know the following measurements:

what is the overall length?
what is the length of the pivot (across the top)?
what is the length from the top to the center of the screw hole?

Thanks again

Dave Sr. from SWISCO

Apr 20, 2017 9:09 am

The over all length of the 95-182 pivot is 1", while the length of the pivot across the top is 9/16", and finally the top of the tilt pin to the mounting hole center is 1/2". I do believe with a little retro fitting that the 95-182 should work in your storm sash.

Home Owner from Virginia

Apr 21, 2017 11:11 am

Thanks - it's worth trying. Is there a way I can order one without having to charge my credit card for 85 cents?

Dave Sr. from SWISCO

Apr 24, 2017 9:40 am

I'm afraid our site can only accept PayPal and credit card.
