May 18, 2020
Hello,

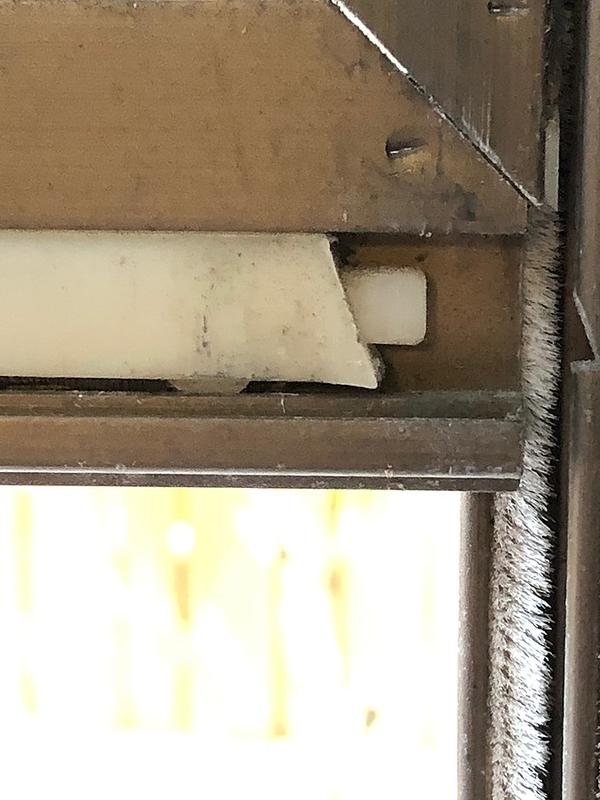

I have 7 storm windows with many parts broken. The corner latches are 3 13/16 inches with the point and the notch for fingers is 1/4 inch from end and 3/4 inch long. They are 1/4 inch wide. The end with the point has a tab (see photo of latch in place) that sticks out for 5/32 inch past the point to guide it in the window frame. The spring and its tab are 1 3/4 inch long.

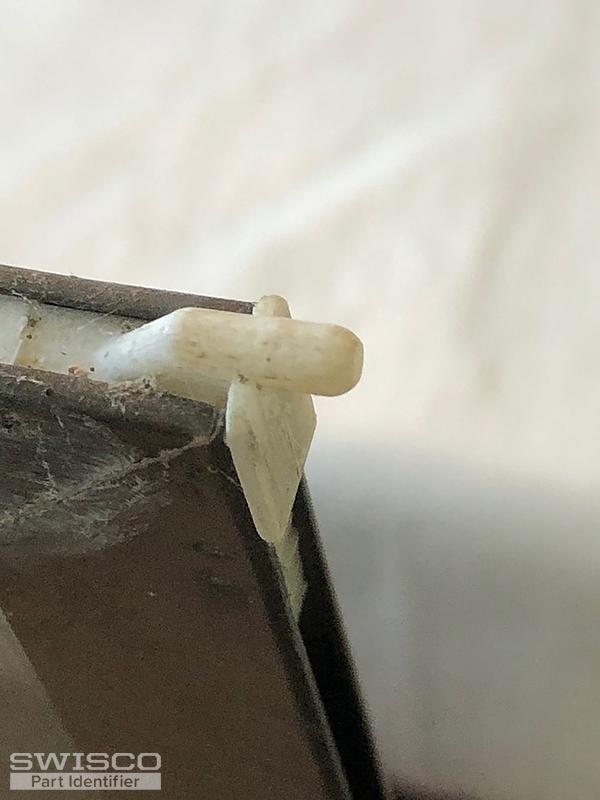

There are 2 types of corner keys. The ones without a point are 1 7/32 inch along the edge where the flat part is and 1 9/32 inch along the other edge, with the flat part sticking out 1/16 inch. The ones with the point have the same dimension, except the point that fits into the window frame slot is 3/16 inch long (see photo of Corner key in place).
I would need 8 pairs of latches, 4 corner keys withOUT points, and 12 corner keys with points.
