Strato Fold door parts

A quick learner from Farmersville. IL says:
Here parts I need to repair the doors for my brother in law. First is a photo of a diagram and a bottom pivot pin assembly. I am hoping you can get all the info from the drawing for the parts. I would need. I would like to replace all the parts on the doors if possible. Our tracks appear to be good but I would replace the track stop pivot plastic parts. I hope you can help.

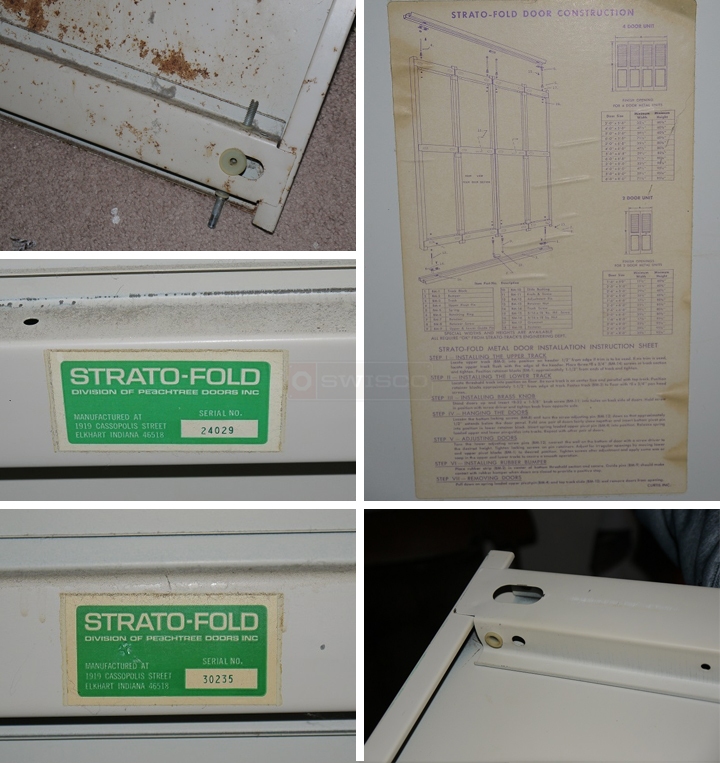

User submitted photos of bi-fold door hardware.
STRATO-FOLD Divison of Peachtree Doors Inc, Elkhart Indiana 46518
Profile picture of Paul
Paul from SWISCO responded:
This is an old metal folding closet door, but I'm somewhat familiar with it. If I remember correctly, you may be able to use our 21-003 as a bottom adjusting threaded bi-fold door pin. The top and bottom guide pins would both be our 21-066.

The top pivot pin will be something you need to put together yourself using our 21-026B plain pin along with with two 21-155 pal-nuts (pushed on down about 3/8"), and finally our 21-250 spring (placed under the palnuts). Once it's assembled, drop through the top hole on the door and lock it in with a 21-157 spring retainer.

Please review this hardware and let me know what you think.
