Strato-fold door mounting hardware needed

Quick Learner from Indiana
Aug 4, 2019 8:18 pm

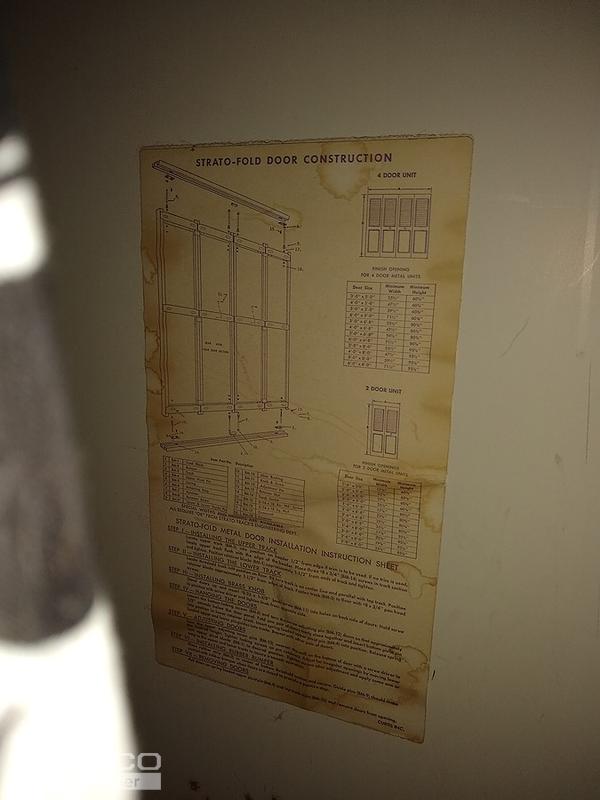

Need 9 upper & lower guide pins and bushings, 4 top pivot pins and springs if required, and 3 adjustment (lower pivot) pins. See parts drawing photo for nomenclature. I need parts for a home sale asap!
IMG_20190804_194514834 IMG_20190804_194448679 IMG_20190804_194255998 IMG_20190804_194558899
4 user uploaded images
1 Replies
Paul
Paul from SWISCO
Aug 9, 2019 9:12 am
SWISCO
EXPERT

Strato-fold was a division of Peachtree closet doors. I don't think these are around anymore, but we carry the newer replacement styles.

First, you will have to remove the door from the tracks and lay it on a stable surface. This will allow you to replace the pins. When you look at the door ends, you will see both round and square cut out holes. The new pins use the square holes.

You will need one 21-030 bottom pivot adjusting threaded pin, one 21-029 top spring loaded pivot pin and two 21-028 top and bottom spring loaded guide pins.

Let me know if you have any questions!
