Strike plate for harvey slider

Contractor from Worcester MA

Nov 14, 2020 3:50 pm

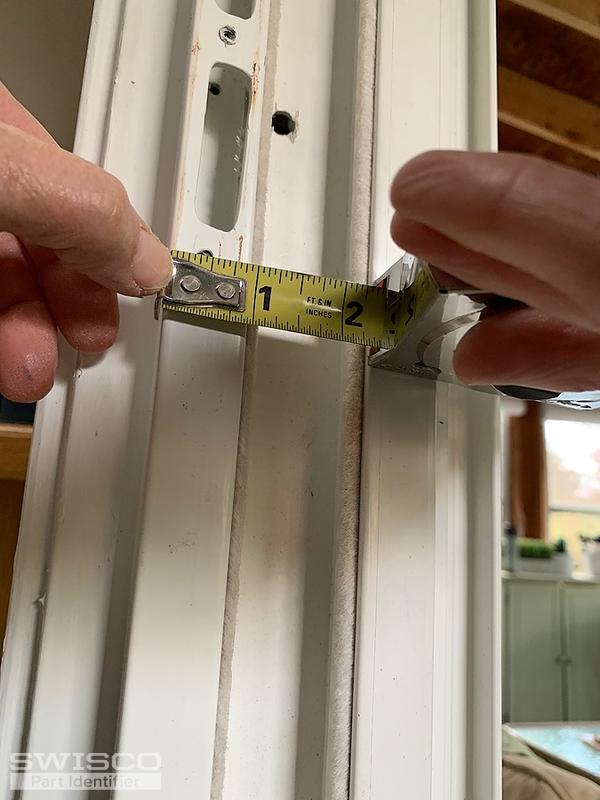

Hi, I need a strike plate for a harvey slider I installed for a customer. Harvey has no idea what I'm talking about when I called them. Pretty sad.

Thanks

4 user uploaded images

6 Replies

Tom from SWISCO

Nov 18, 2020 2:38 pm

I'm afraid that I don't know what you need, either. It almost looks like the strike is literally built into the frame. If something installed over those holes you're showing me, I'm not sure what it would have been.

I need more of a reference to work off of. Do you have the old mortise on hand? If so, I'd like to see it. That may give me a good idea of what you're working with.

Contractor from Worcester MA

Nov 18, 2020 3:26 pm

It's a strike plate for the locking mechanism. Door is already installed and I don't have access to it. It's not built into the frame, otherwise it would still be there. It is a strike plate, attached via 3 screws.

Something like this
https://img.fruugo.com/product/1/63/33752631_max.jpg

I have contacted Harvey Industries (that makes the door) and they don't know what the hell I'm talking about either.

Tom from SWISCO

Nov 23, 2020 8:43 am

Thanks again for your patience. Unfortunately, our research has yielded no confirmed results. The most I can do at this point is make an educated guess.

Looking at the hole spacing of the original keeper, they seem like they might align with our 89-030 keeper. This product juts so happens to work in conjunction with the 82-080 handle set and 82-238 mortise lock. If your existing handle and mortise match these two parts, then this might be a promising lead. However, without more of a reference to go on, I cannot guarantee it.

Please review these products and see what you think.

Home Owner from New England

Apr 19, 2024 11:11 am

Did the original poster ever find a replacement multi point striker plate for the Harvey sliding door? I need one -- the builder never installed it. :-(

It does look like a SWISCO handle set, so I purchased the 89-030 keeper. The keeper seems to be the right size but waaayyyy too thick. The door does not slide closed all the way.

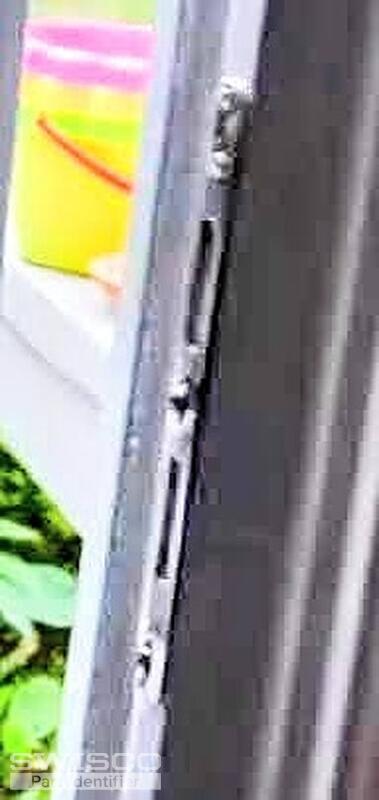

I think Harvey uses a much thinner striker plate. I attached a VERY poor picture from a YT video.

Any ideas?

Thanks tons!

1 user uploaded image

Tom from SWISCO

Apr 19, 2024 3:04 pm

I'm afraid this photo is too unclear for me to determine what kind of keeper you have. Would it be possible to see an actual photo of your original part? Can you also show me the mortise in question? I can then see if we have anything that might be a match.
