Stripped Willmar Crank Handle

Home Owner from Scottsdale, AZ

Oct 27, 2023 7:13 pm

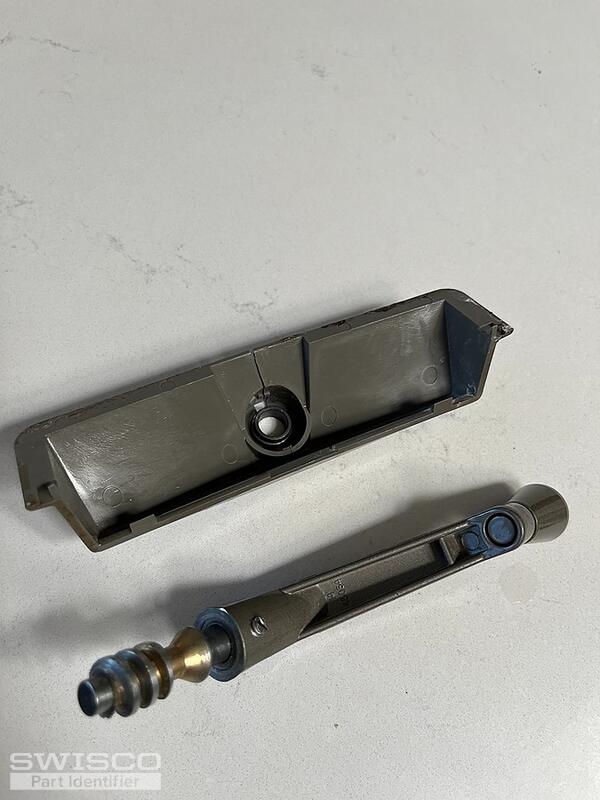

Please see the photo uploaded. I am looking for the two parts that are circled in red. It appears that the screw piece is stripped, and the cover is cracked. The handle appears to be fine. Thank you!

1 user uploaded image

5 Replies

Lauren from SWISCO

Oct 30, 2023 10:56 am

Hello, thank you for posting,

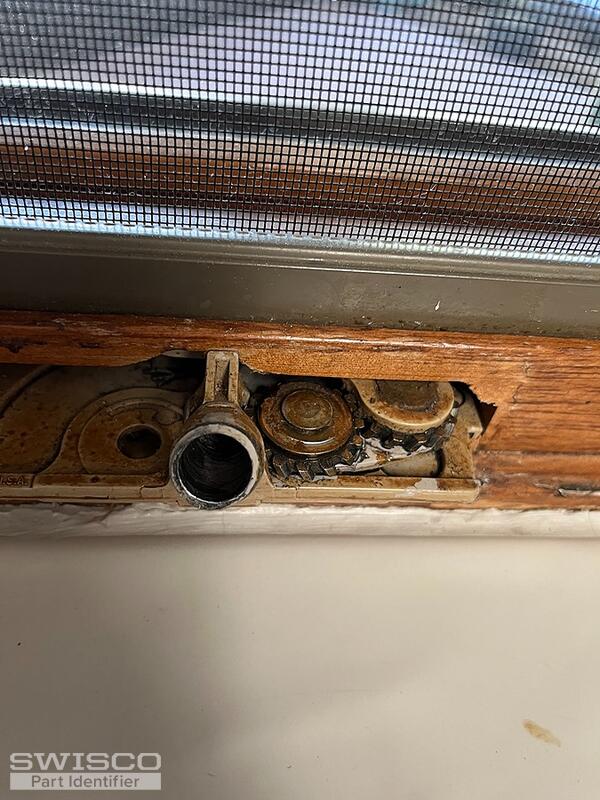

Since the spline that the handle fits onto is stripped, you will new a full new operator. This part cannot be replaced on its own. To further review, we will need to see the original crank operator with a bird's eye view of the arm attachment(s). From there we can confirm the best fit.

For a new cover, please review the 39-107. Thank you!

Home Owner from Scottsdale, AZ

Oct 30, 2023 6:53 pm

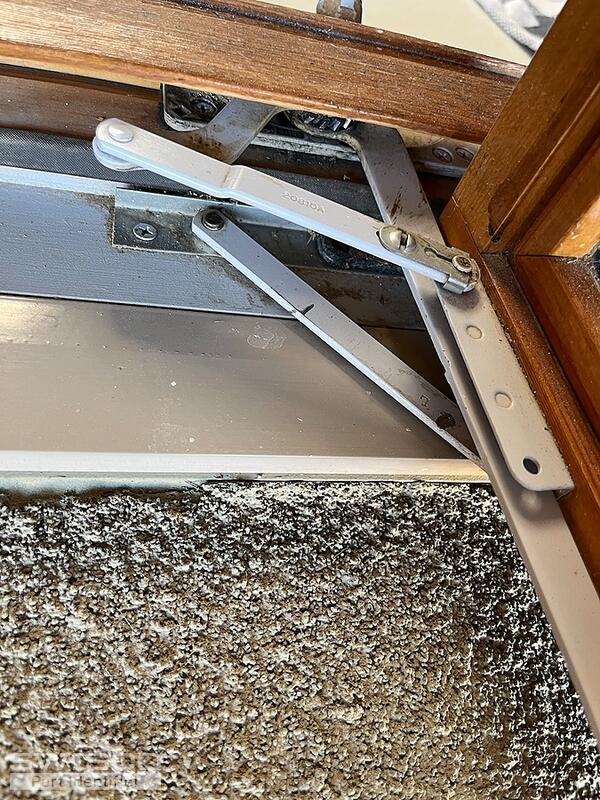

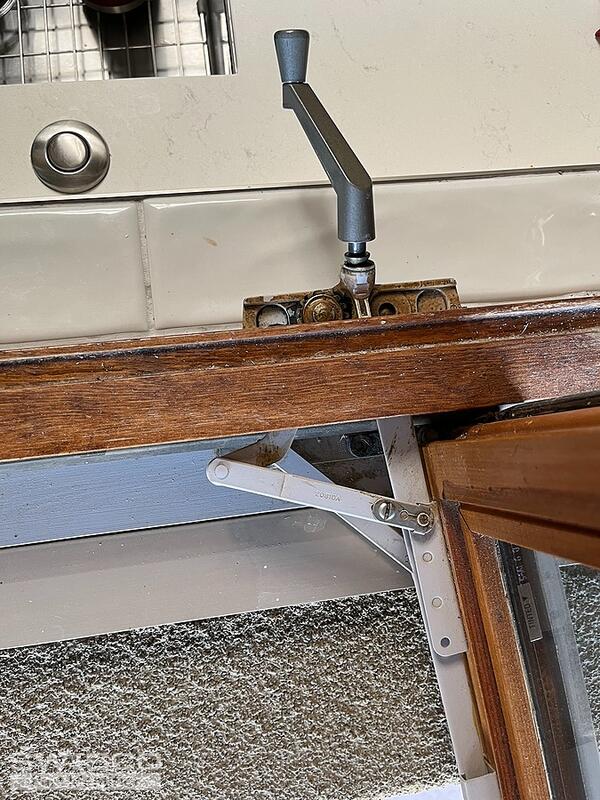

Here are some additional photos to help you diagnose. Thank you!

5 user uploaded images

Home Owner from Scottsdale, AZ

Oct 30, 2023 6:54 pm

One more. Thanks again!

1 user uploaded image

Lauren from SWISCO

Oct 31, 2023 8:30 am

Thank you,

Please review the 39-031 and 39-032 operators. Compare the dimensions and orientation for the best fit! Also review the 39-107 cover and 39-114L handle. Let us know if you have any additional questions.
