Substitute (not replacement) rear socket

Home Owner from Lewes, DE
May 29, 2018 1:04 pm
The drawers slides were factory installed by Merillat the cabinet manufacturer. I need to move the drawer up higher in the cabinet. I can not get the slide to release from the socket nor can I unscrew the socket from the back wall of the cabinet. I removed one slide by bending it and finally pulling it out by brute force. I sawed off the end thinking I could use a Blum rear mount socket to remount it but it does not fit. The slide (has AGSB embrossed on it) measures just under 1/2" wide and is 7/8" tall (too big for the Blum socket.) I am hoping you sell a rear mount socket (one where the slide slides INTO it ..since my slide is a bit shorter now) that is tall and wide enough to accommodate it. Thanks!

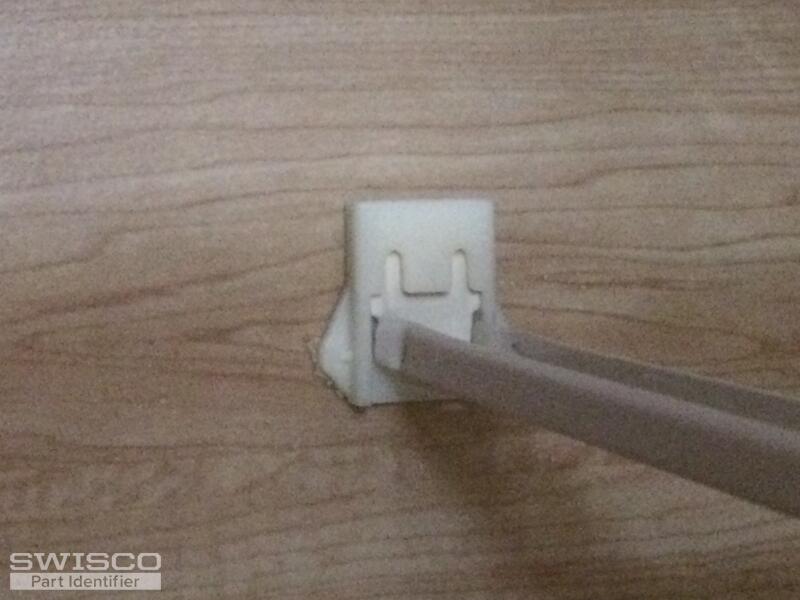

1 user uploaded image
2 Replies

Tom from SWISCO
Jun 4, 2018 9:01 am


I think I understand your issue. Start by looking at our 32-119 and let me know if the dimensions we show for this part meet your needs. I think this can work for you; it just screws to the back of the cabinet, and it's meant to have the track slide into it like you mentioned. It's also a little longer than your original so I think it can make up for the bit of the track that you cut off.
