Sun Room Window Crank

Start a new Discussion

Handy Person from Sewell

Jun 13, 2017 9:29 pm

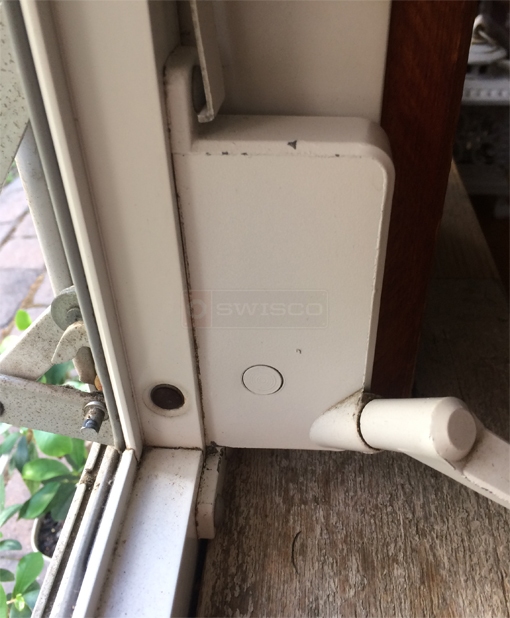

I do not know the window manufacturer and need replacement cranks as shown in the attached photos.

Martin

User submitted image of their window hardware.

4 Replies

Tom from SWISCO

Jun 19, 2017 8:53 am

We may be able to help, but we will need to see a bit more of the operator. Can you remove it from the window and show us a clear picture of the installation hole pattern, and a clear picture of the gear and link arms? I would also need you to tell us your measurements for the hole spacing and arms. Thanks!

Quick Learner from Sewell

Jun 27, 2017 7:33 am

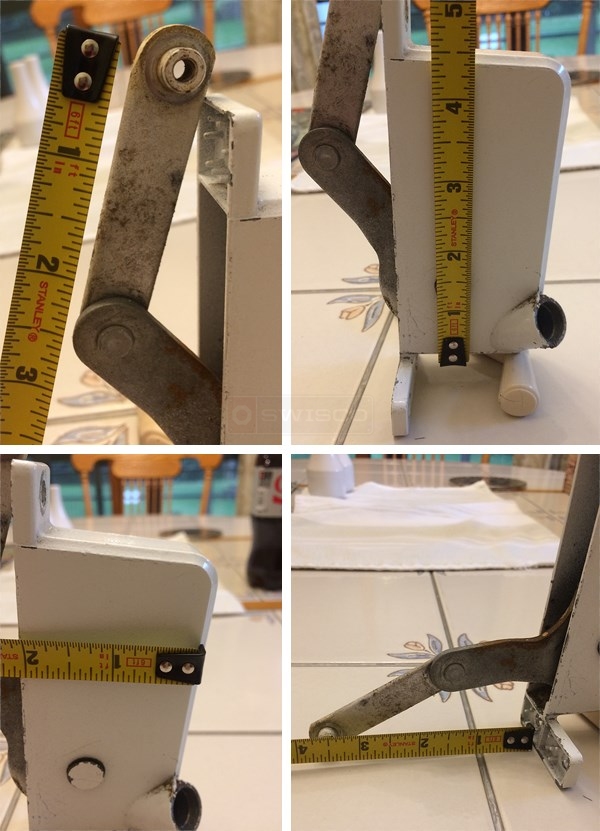

Here are additional pictures. Thinking I may need 3 to 6 of these crank assemblies.

Dave Sr. from SWISCO

Jun 30, 2017 9:31 am

Take a look at our 39-025 operator. This may be what you want. Make sure to check the mounting hole spacing and other dimensions. Also be sure to watch our video.
