Swing door weather strip

A quick learner from Toronto says:
Hello there! I need to replace the weather strip on the swing half of my patio door. I'm not so sure if you have a match for the size, and I'm not sure if my photos are good enough to tell. Please let me know what you think I have here... thank you!

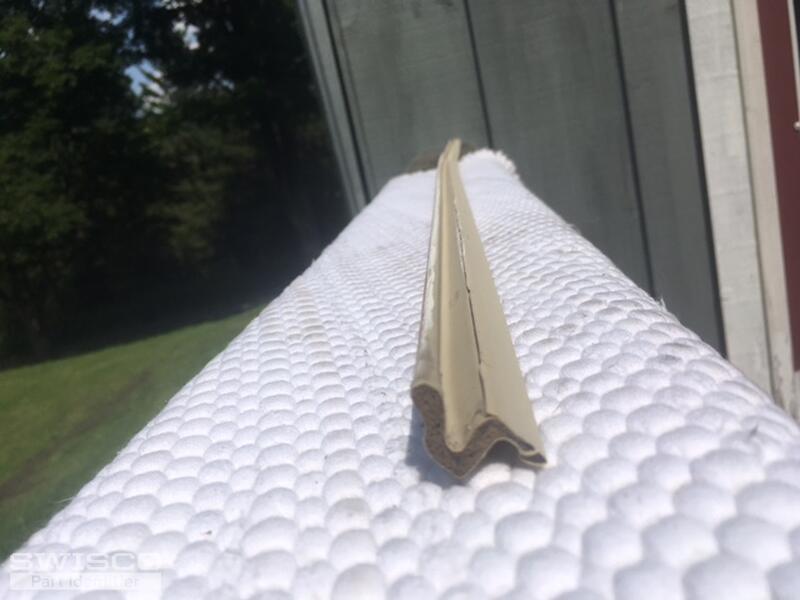

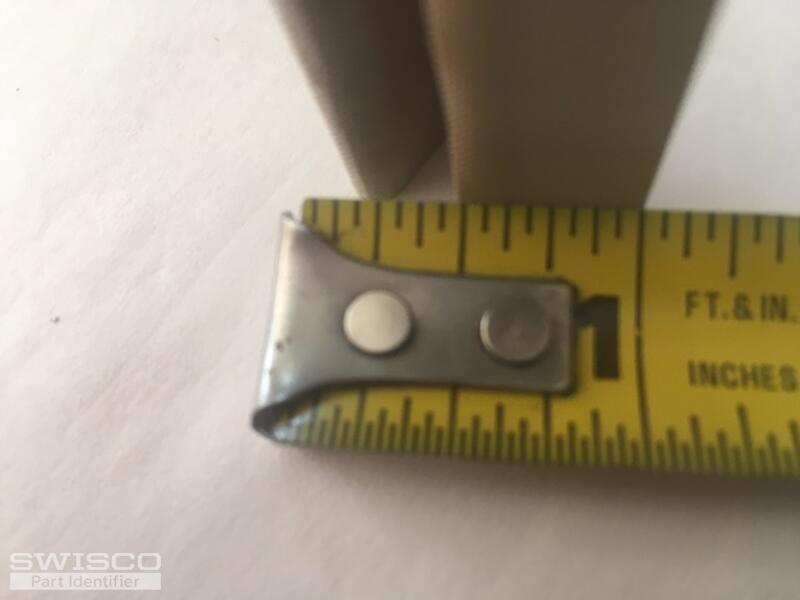

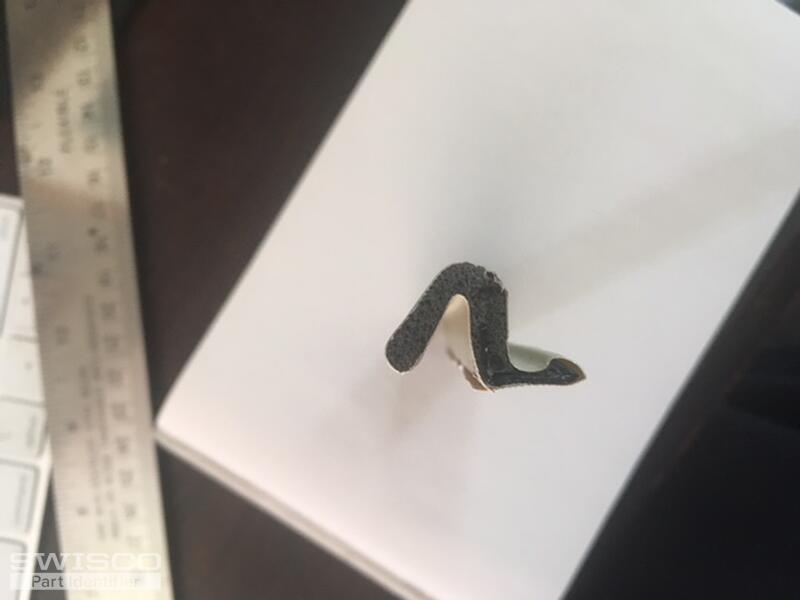

Thumbnail of the uploaded file named IMG_1280.JPG
Thumbnail of the uploaded file named IMG_1281.JPG
Thumbnail of the uploaded file named IMG_1277.JPG
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. Start by looking at our 58-201 , which mounts with a kerf, as well as our 58-169 , which mounts with a nail flange. Compare with your old foam seal and see if you think one of these might work for you. Let me know your thoughts.

Profile view of 58-201
Profile view of 58-201

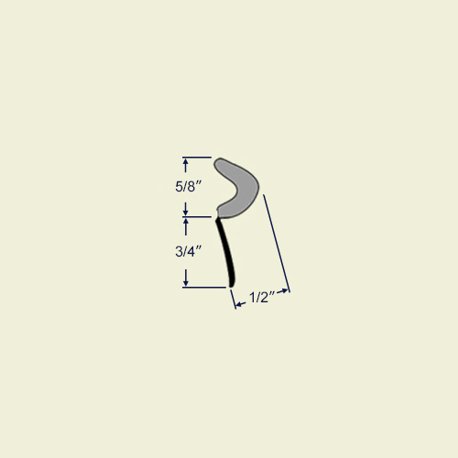

Profile diagram of 58-169
Profile diagram of 58-169
