Home Owner from Springfield, Louisiana

Nov 1, 2023 4:22 pm

I need a Swisco mortise lock? round face?3/16th Code# 82-218

I also need slider slicker track lubricant..code#75-077

Based on the photos are these the correct parts for my door?

Thank you? Dawnel

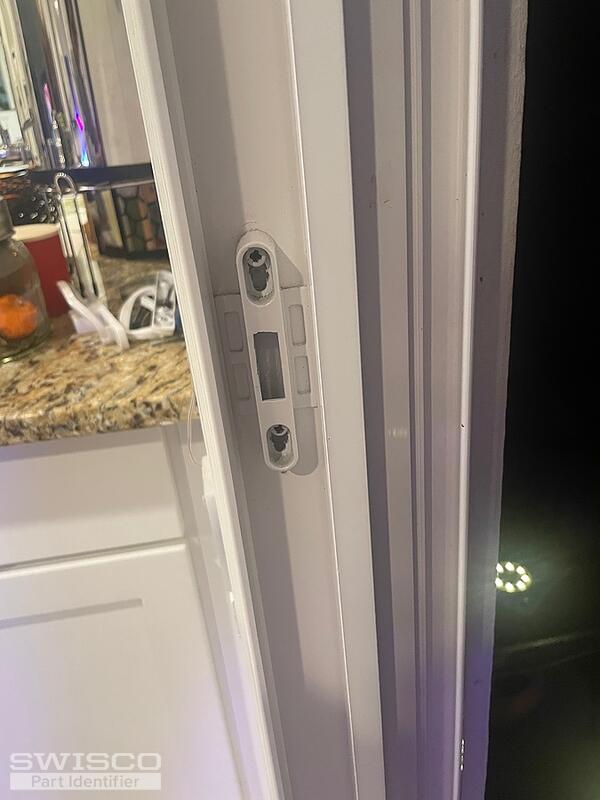

2 user uploaded images

6 Replies

Lauren from SWISCO

Nov 2, 2023 8:39 am

Hello, thank you for posting,

Your handle set resembles the 82-086. This handle set is compatible with multiple mortise lock styles. Are you able to show us your original lock? From there we can further review to see if you need the 82-218 style. Thank you!

Home Owner from Springfield, Louisiana

Nov 3, 2023 11:21 pm

Hi
I'm afraid I can't send you a picture of the lock because it fell down into the door when we took the handles off?yikes
Does my husband need to disassemble the whole door to get to it? Or to put a new handle/lock on the door??

Lauren from SWISCO

Nov 6, 2023 8:11 am

If the original fell into the door, it is possible you had the 82-218 style as this happens often. Can you show me the cutout in the door frame and confirm the distance between the installation holes from center to center? Thank you!

Home Owner from Springfield, Louisiana

Nov 6, 2023 10:06 pm

From center hole to center hole is 3 5/8"
The slot is 3"-3 1/16"
Slot is 1/2" wide

2 user uploaded images

Lauren from SWISCO

Nov 7, 2023 8:39 am

Thank you,

The 82-218 would be our best option, but please double check the dimensions as this lock has a 3-11/16" spacing form center to center. Review the installation video below for more details. Let me know if you have any additional questions!

Profile view of 82-218

Opposite side view 82-218
