Swisco balances are too thick

Question

I bought some balances last week. S395-28. But they won't let my window sash go back into the window. I sent a photo to demonstrate: the channel in the forground is 1/2 and the new ones are 5/8" deep. The window will not go into the track. let me know what you think.

Thanks

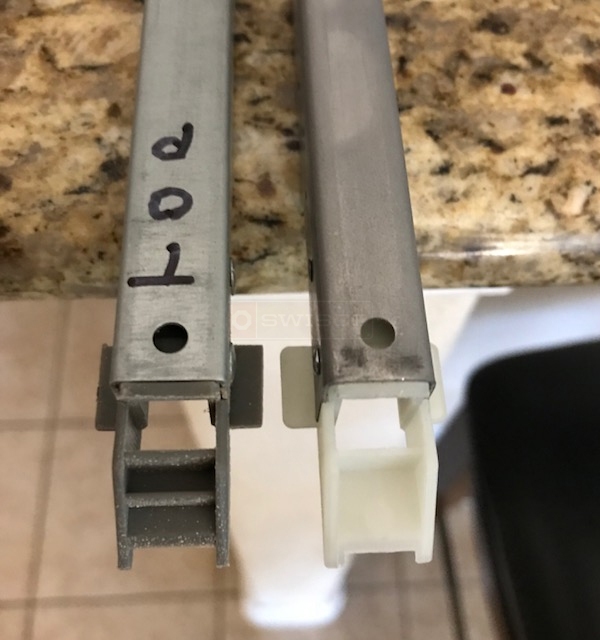

User submitted photos of a window balance.

Tom · Accepted Answer

I'm sorry to hear you're running into trouble. I'm not sure what the problem can be. They don't make a shallower version of this balance. They pretty much only make it one way, and have for years. Even looking at your picture, I don't see a significant difference in the size of the balance. At least, not anything that would prevent it from working.

Could the problem be with the bottom shoe? The S395-28 comes with the 15-001 shoe, which is on the thick side at 1-3/32". What is the depth of your old shoe?
