T-Lock Balance Shoe, Open Cam Series 7810 H-R40-48X84

A home owner from 76016 says:
May 5, 2019

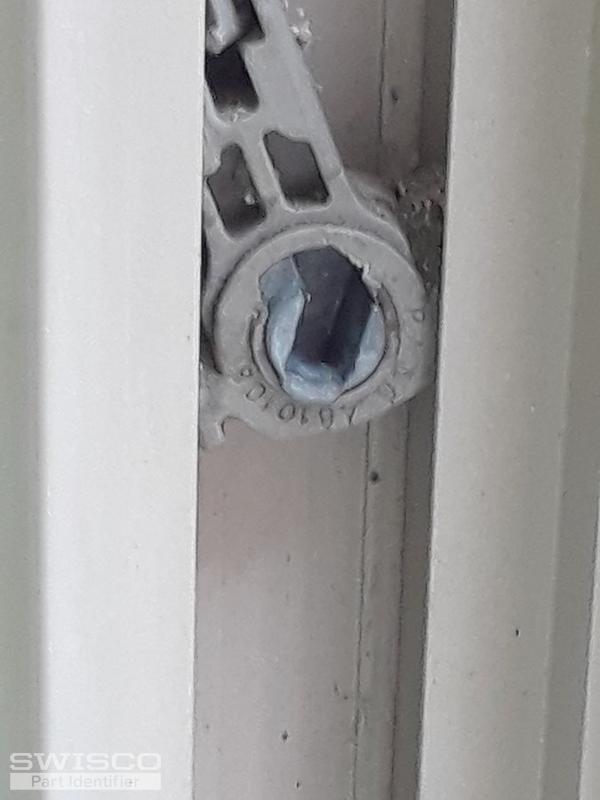

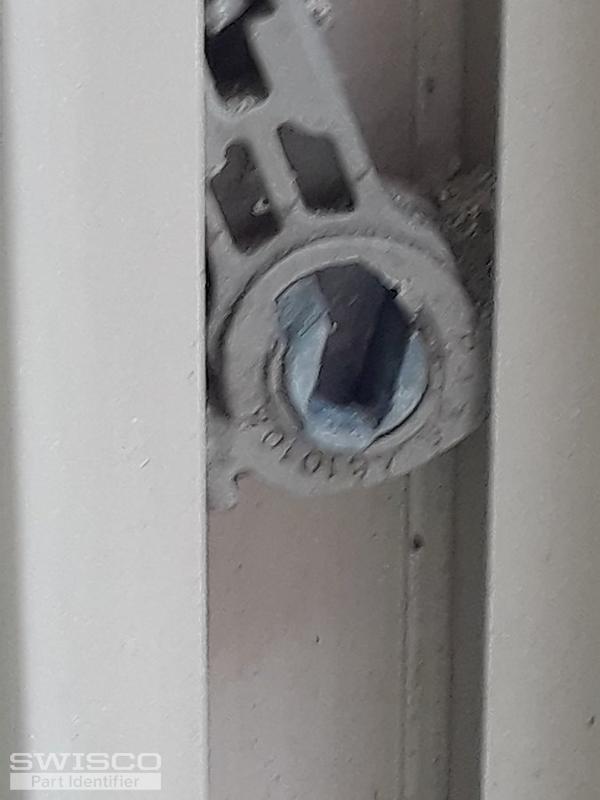

It appears I need a T-lock balance shoe of one sort? The designation on the part is nearly illegible.461010? I can look at another and see if I can determine further. In the meantime any thoughts? Thanks.
Thumbnail of the uploaded file named 20190501_161817.jpg
Thumbnail of the uploaded file named 20190504_160117.jpg
Thumbnail of the uploaded file named 20190504_160117.jpg
Thumbnail of the uploaded file named picture_2019_5_1_16_17_48_139.jpg
Thumbnail of the uploaded file named picture_2019_5_1_16_17_52_278.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 7, 2019

That definitely looks like the bottom shoe of a channel balance. Start by looking at our 15-195. Compare our dimensions to yours to see if they match up. If not, let me know. We have some other options so I'm confident we can get you the right part no matter what.
A quick learner from Detroit Mi says:
February 13, 2024
Hello!

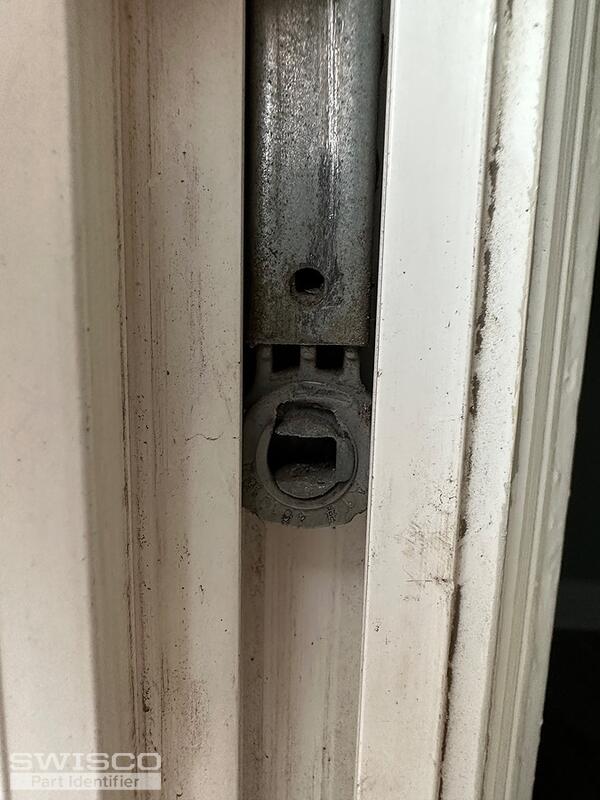

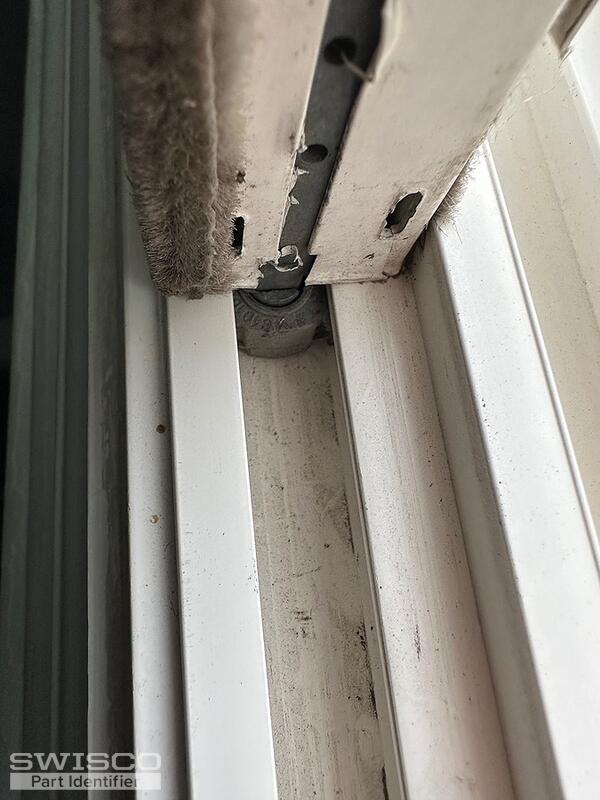

I believe I have the same thing I need to replace in my pella windows
Thumbnail of the uploaded file named 65923E11-19CA-4AEE-822F-C2A368980BDF.jpeg
Thumbnail of the uploaded file named 0EC472DA-A80E-4215-ABCD-DEE34061DD6E.jpeg
Profile picture of Tom
Tom from SWISCO responded:
February 13, 2024

I agree, that appears to be the same style shoe. Have you looked over the 15-195 that I recommended to the previous customer? If not, that should be your next step.

Please feel free to reach out if you had any other questions.
