T-Slot Window Seal

Home Owner from Ohio

Aug 10, 2016 12:29 am

My vinyl windows need to have the seals replaced. I am fully capable of doing this, but cannot find the correct seal anywhere. Are you able to tell me what I need based on my picture and possibly send samples? I would really appreciate any help. Thank you. My name and address are as follows:

Joseph

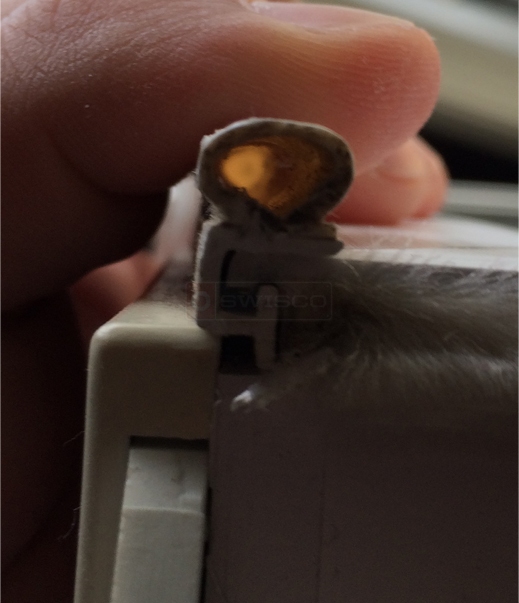

User submitted image of their weatherstripping.

4 Replies

Tom from SWISCO

Aug 11, 2016 11:15 am

We may be able to help, but will need a bit more information. Can you tell me the diameter of the bubble and the width of the "T" that goes into the slot?

Home Owner from Ohio

Aug 12, 2016 1:39 pm

The diameter of the bubble is 5/16 of an inch and the width of the 'T' is 3/16 of an inch. Thank you!

Tom from SWISCO

Aug 16, 2016 8:20 am

Perfect, thank you. How about our 58-182? It has a bubble diameter of .300" and the T is .187". These measurements are fairly close to yours, but see what you think.
