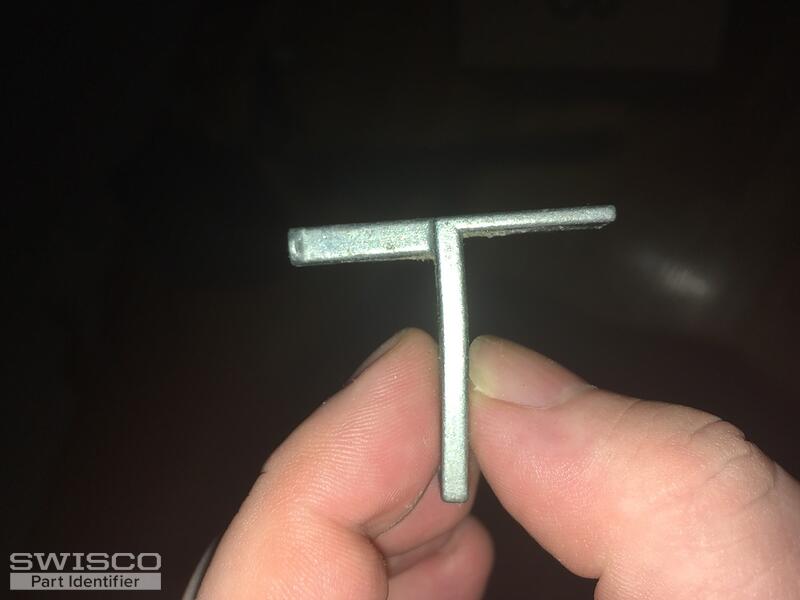

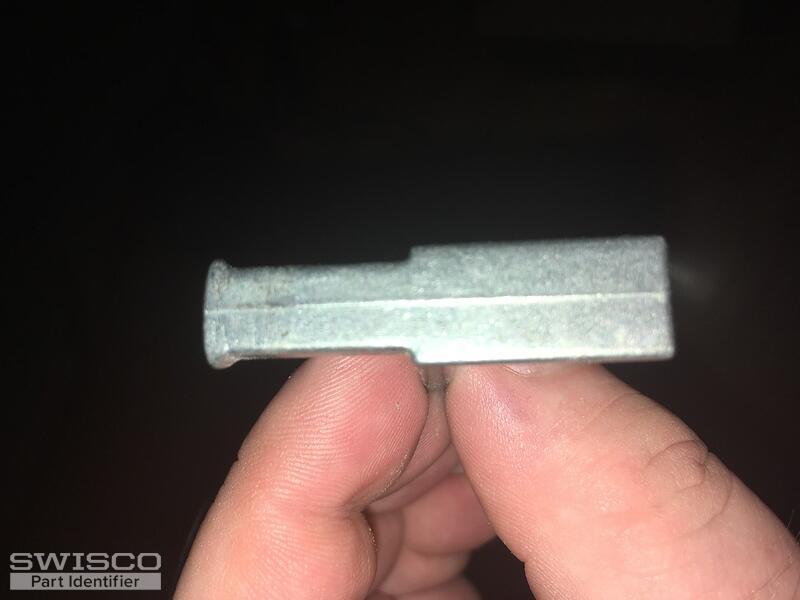

The bottom pin is 1 5/16" wide, the cross T is 1 3/8" long (including width of bottom pin). The actual pin is 11/16 to the cross T, the support extension opposite the pin is 3/4". I don't see any markings on the pivot bars or the windows so I don't have any manufacturer information. If you know of anything please let me know.
Thank you.
T-shaped pivot bars
Handy Person from Quincy MA
Aug 5, 2018 12:30 am
5 user uploaded images
2 Replies
Paul from SWISCO
Aug 9, 2018 10:04 am
We have a similar pivot bar, 26-310, with one locking horn, which should fit in your pivot shoe. Please compare the screw-holes to see if they match what you have.
