Tandem constant force balance #6 with cam and #7 for vinyl double hung

A quick learner from Shrewsbury, Ma 01545 says:
June 22, 2022

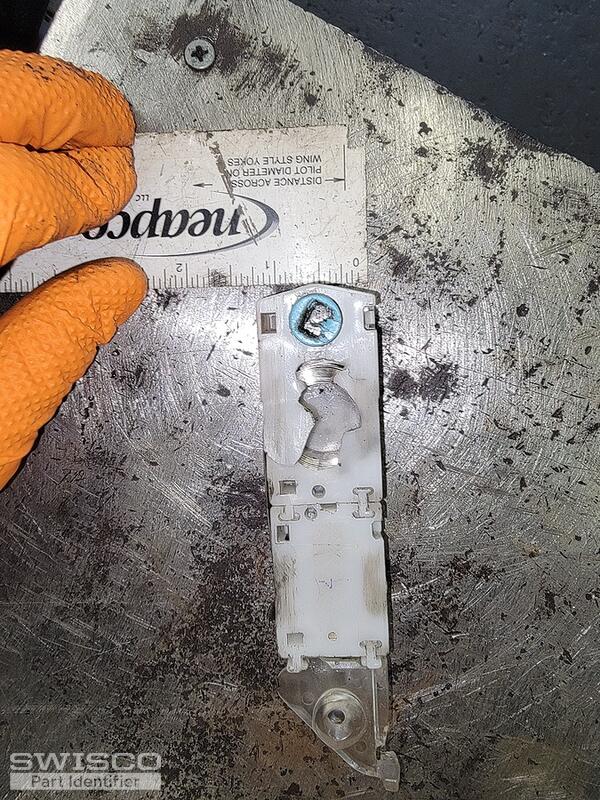

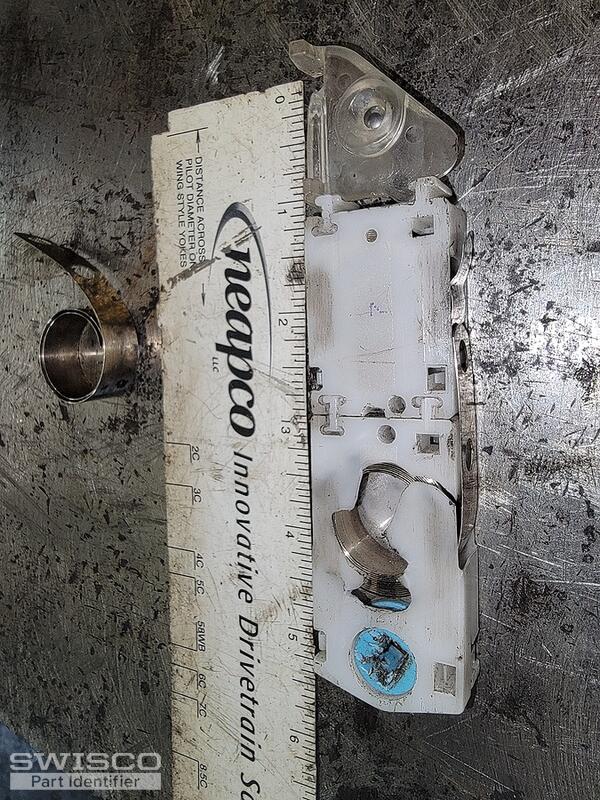

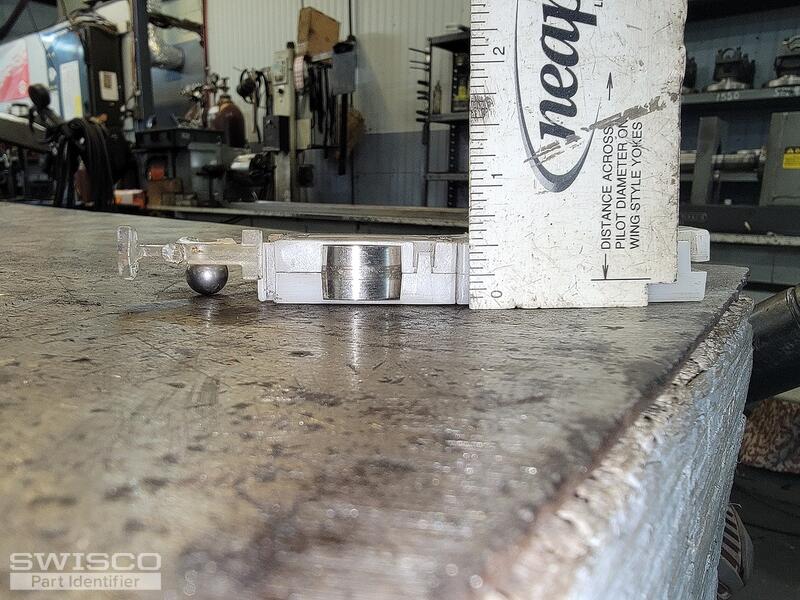

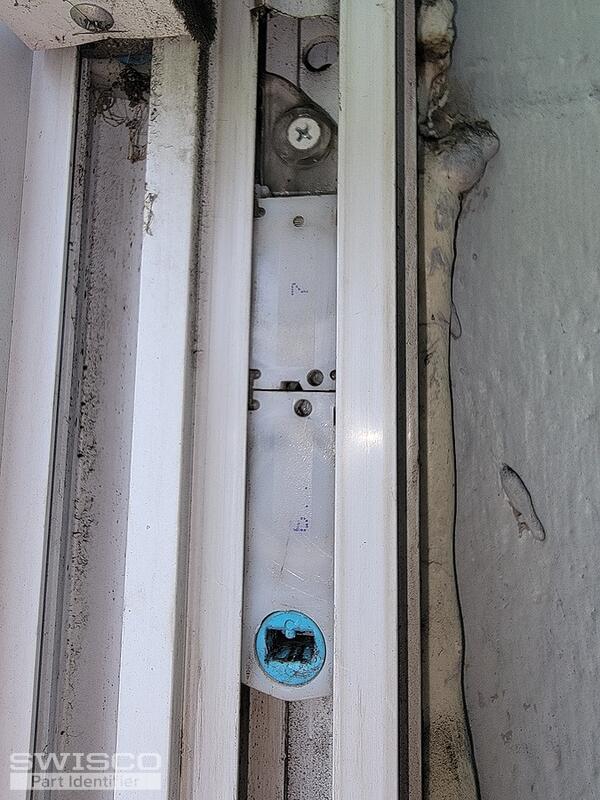

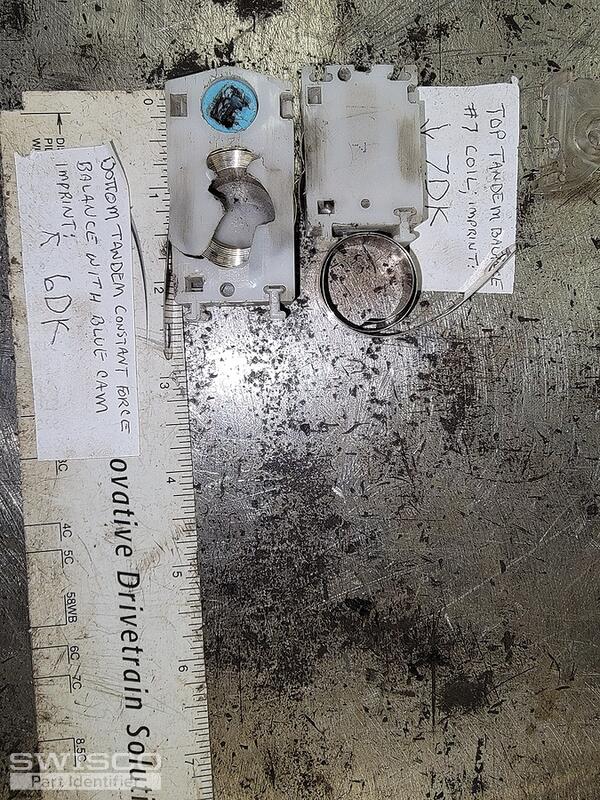

Looking for parts for silverline window balance. Pics and subject have all info. Tandem constant force balance #6 with cam; and #7 for vinyl double hung window. Left side from inside. Top housing marked with a 7 and coil inside marked with 7DK (pretty sure housing 15-086). Bottom housing has blue cam and is marked with a 6 and coil inside marked with 6DK. Looking for complete setup including mounting bracket both coils both housings. If possible non plastic cam. Thank you
Thumbnail of the uploaded file named 16559091387586948485897355123276.jpg
Thumbnail of the uploaded file named 16559094319837547365766553738769.jpg
Thumbnail of the uploaded file named 16559094792145155966585487191480.jpg
Thumbnail of the uploaded file named 16559095724627324294255390674791.jpg
Thumbnail of the uploaded file named 16559102880804214819821752905061.jpg
Profile picture of Emily
Emily from SWISCO responded:
June 24, 2022

Hello there!

Your pivot shoe looks like a match for our 15-087 which uses the Series 180 coil springs, 15-086 housing and 16-031 mounting bracket. Since your housing is marked with a "6" and "7", you'll need our S180-6 6 pound and S180-7 7 pound coil springs. Look these parts over and let me know if you have any questions.
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Mounting Bracket
Mounting Bracket
16-031
$0.90
7 lbs Series 180 Coil Balance
7 lbs Series 180 Coil Balance
S180-07
$4.97
6 lbs Series 180 Coil Balance
6 lbs Series 180 Coil Balance
S180-06
$4.45
