Template needed

A home owner from NJ says:
I need a template for mortised handle set 41598
Profile picture of Bob
Bob from SWISCO responded:

I am afraid I can't cross-reference that code to a specific lockset. Can you show me a picture of the hardware you have? I'll do my best to find what you need from there. Thanks.

A home owner from NJ says:

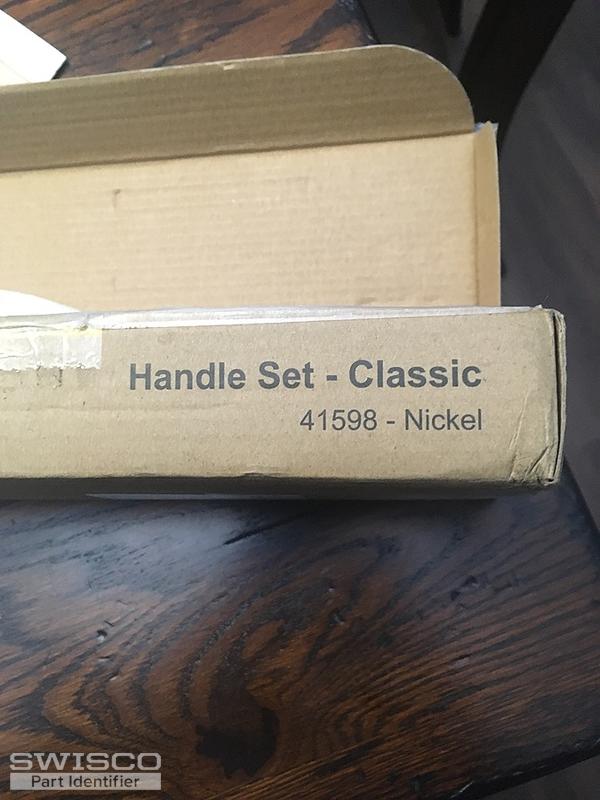

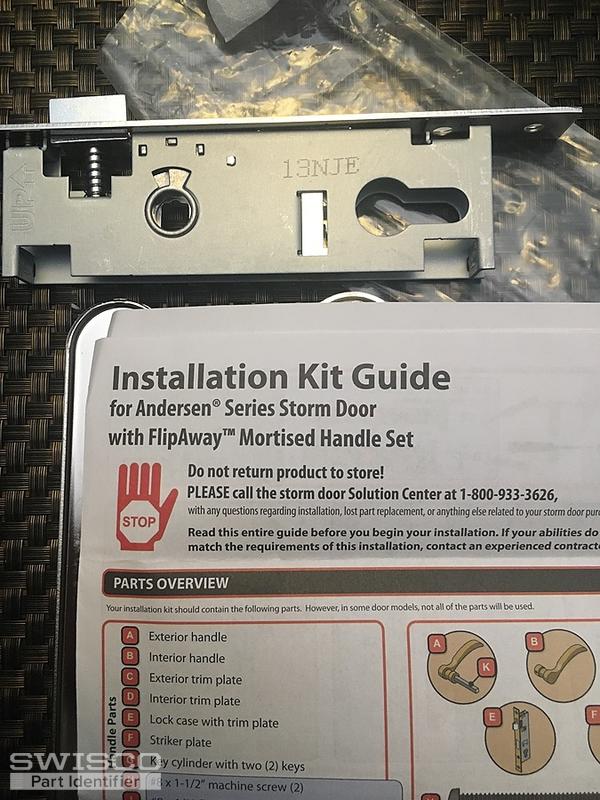

Hope this helps again thanks for all your support
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Thumbnail of the uploaded file named image.jpg
Profile picture of Bob
Bob from SWISCO responded:

I think this mortise latch might be our 40-194; please compare the dimensions we list in the pictures to confirm. If so, then the whole handle set is our 40-193, and a Strike Plate that works with this lock is our 40-197. Take a look at all these items and let me know what you think.

A home owner from NJ says:
Hey Bob
40-194 is the correct mortise latch but the handle set is shorter length is 7 1/2 inches
Again Thanks
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

Hi there, maybe I can help. On the 40-193 handle set, the mounting hole centers are at 7-1/4" apart. Check to see what your mounting hole centers are on your existing handle set and door. The face plate is 8-1/4" end to end. If yours are not the same could you tweak the mounting holes in the door a little or reuse your existing face plate. Let us know what you think.

A home owner from NJ says:
Hello Dave
That's great you and Bob have been a great help Stay safe and healthy
Again thanks
