Tension Spring will Not Hold Window Up

Home Owner from GODFREY
May 3, 2023 8:33 am
My window will not stay up and falls down. The tension string seems to sag and not stay taught. Do I need a new channel balance or can I cut the string to make it taught when I raise the window? I have included pictures. Thanks!

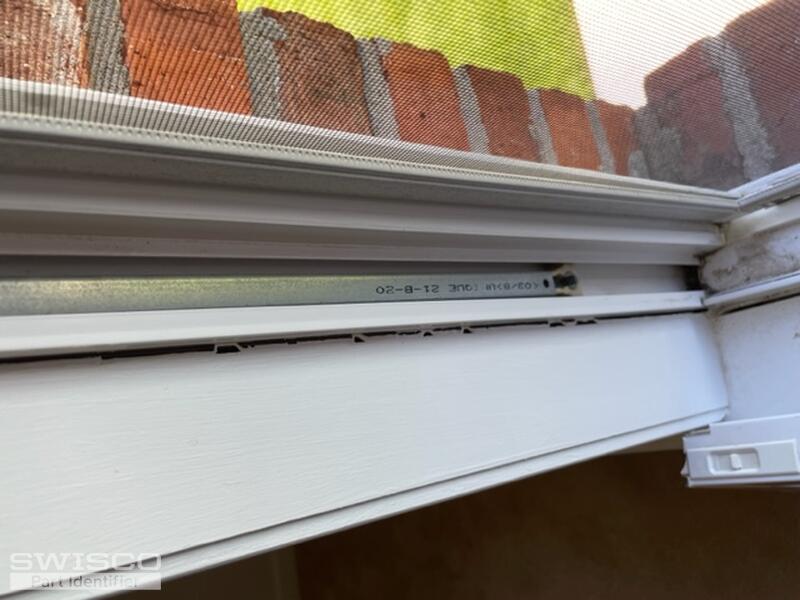

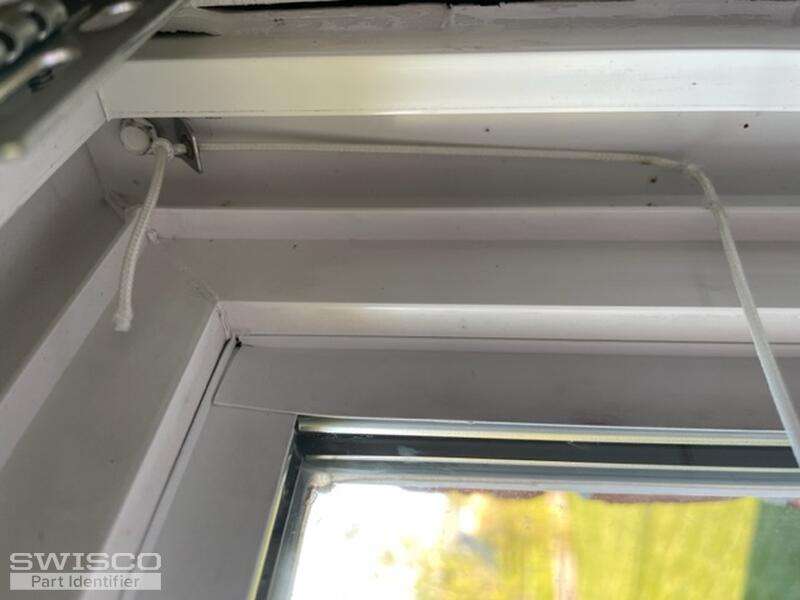

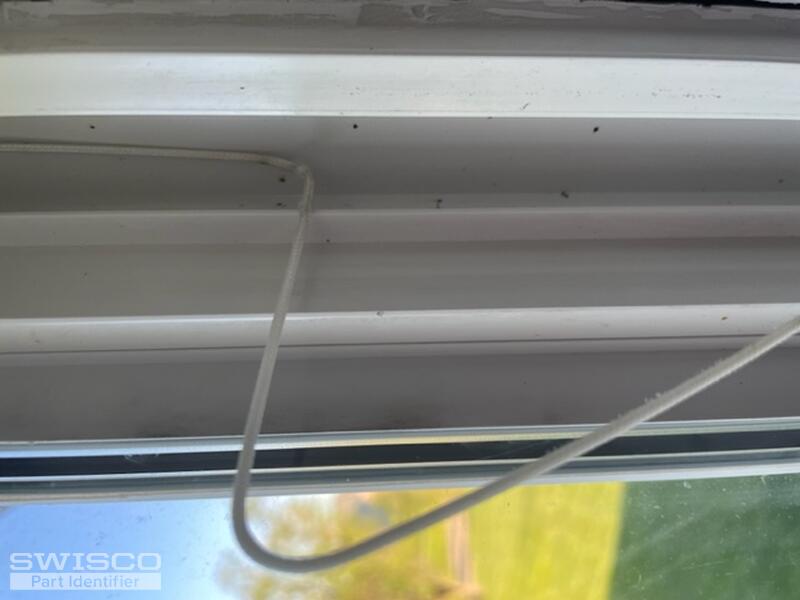

balance1 balance2 balance3 balance4
4 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
May 4, 2023 2:54 pm
SWISCO
EXPERT

Thanks for posting! Your balances appear to be the S795-21 channel balance with a 21B stamp, made for a window weighing 10 to 14lbs. It will have the 19-043 screw-in clip attached to the top of it.

These balances come equipped with the 15-195 1-1/4" T-Lock Balance Shoe, with a closed cam. You'll want to be sure to confirm that the cam on your shoe is actually closed off in the back. If it is an open cam, you'll need the 15-195B which is also 1-1/4" wide (across the bottom of the T). If your shoe happens to have a 1" width, you'll need the 15-194.

Both the 15-195B and 15-194 will need to be added to the cart along with the balances if you confirm that you will need either of them. There is a video attached to this post explaining how to change the shoes out in the event that you need it.
